Instruction Manual
ST020712 Flexible Arm Instruction Manual-English.doc
Quick Overview

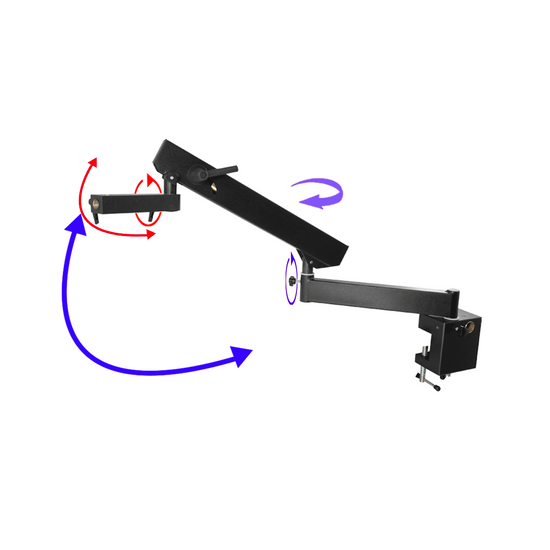

Flexible Arm. Total Arm Length: 800mm. Mounting Hole on the Top of Horizontal Arm: 5/8 in. End Adapter. Base Dimensions: 104x77x136mm. Mount Adapter Size of Stand: Dia. 22.2mm. Clamp Opening Size: 0-53mm.
ST020712 Flexible Arm Instruction Manual-English.doc
Quick Overview
Flexible Arm. Total Arm Length: 800mm. Mounting Hole on the Top of Horizontal Arm: 5/8 in. End Adapter. Base Dimensions: 104x77x136mm. Mount Adapter Size of Stand: Dia. 22.2mm. Clamp Opening Size: 0-53mm.
ST02071201 Flexible Arm, Clamp Stand
Flexible Arm
| Stand Type | Flexible Arm |
| Total Arm Length | 800mm |
| Mounting Hole on the Top of Horizontal Arm | 5/8 in. End Adapter |
| Horizontal Rotation Angle | 360° Degree Rotatable |
| Horizontal Arm Maximum Load | 9.50kg (20.94lbs) |
| Base Type | Clamp |
| Base Shape | Rectangle |
| Base Mounting Size | Dia. 22mm |
| Base Dimensions | 104x77x136mm |
| Clamp Opening Size | 0-53mm |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | Black |
| Net Weight | 5.65kg (12.46lbs) |
| Dimensions | 104x450x320mm (4.095x17.717x12.598 in. ) |
Clamps and Stands
| Clamp For Flexible Arm | |
| Mount Adapter Size of Stand | Dia. 22.2mm |
| Clamp Opening Size | 0-53mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 1.83kg (4.03lbs) |
Technical Info
Instructions
Microscope StandClose Λ
| Microscope stand have many options depending on the needs, especially stereo microscope stand, there are several factors to consider before choosing: Stability: microscope stand is used to prop up the microscope body. The stand should be selected according to the size of the microscope mainframe. The stability of the stand determines the stability of the microscope in use, and its various adapters and screws must be tightly locked. Volume size: limited by the working environment and space of the workbench. Workspace and scope: the size of the workspace of the object being observed and the height of the object being observed should be considered. Choice of lighting: some stands are equipped with a light source, but some are not, depending on whether there are conditions to add additional lighting. Operational requirements: 1. Install the stand as required. 2. Arrange a reasonable fixed position for the stand. 3. Carefully tighten the microscope mainframe. 4. Arrange the location of the additional light source reasonably, and place the electric wire in a position that does not interfere with the work. 5. Connect the various kinds of peripheral devices, such as cameras, monitors, computers and so on. |
Flexible ArmClose Λ
| Flexible arm is an arm or stand that imitates the human arm. It is a combination of several mechanical arm joints to complete the horizontal and vertical movement and freely adjust the focus position of the microscope. Flexible arm allows the microscope to move flexibly and freely over a wide range, and is also suitable for viewing larger objects. The fixing method of the arm is usually optional, with strong interchangeability. Below the observation of the microscope there is an empty workbench, which can be used to place various kinds of platforms, work operating tables, tools, etc., and can be freely combined into different working positions. In industrial places, most of the working positions are fixed. Sometimes, a lot of tools, equipment and instruments need to be placed in one working position. Because the microscope is relatively large in size and takes up also a relatively bigger space, and not convenient to move back and forth, therefore the flexible arm can be placed in a flexible position, and does not occupy the most commonly used workbench. When in use, the microscope can be moved over, and pushed to the side when not in use. This is very suitable for use in electronics factories, installation and maintenance, medical and animal anatomy, archaeology and other industries. Flexible arm generally does not have a fixed focusing device, and you can choose a variety of flexible accessories. When adjusting the height of the flexible arm, you need to use both hands at the same time, with one hand holding the microscope or the forearm of the stand, and the other adjusting the adjusting screw or spring mechanism that looses/tightens the arm. When releasing, pay attention to avoiding sudden sliding down. Because one needs to ensure the flexibility of the arm or stand, there are many locking buttons in all directions. After the necessary locking buttons are adjusted, it must be ensured that each knob is in locked state to avoid sliding, tilting, and flipping of the microscope, thereby damaging the microscope and the items on the workbench. Flexible arm has a mechanism of the hydraulic spring for adjusting the pre-tightening tension. When different microscopes weigh differently, these flexible arms can be adjusted to make the microscope more stable. |
360° Degree RotatableClose Λ
| The eyepiece of the microscope can have different viewing or observing directions. When the position of the microscope is uncomfortable, the direction of the eyepiece tube of the microscope can be adjusted, to facilitate observation and operation. Placement method of different viewing angles of the microscope: General direction: the support column is behind the object to be observed Reverse direction: the support column is in front of the object to be observed Lateral direction: the support column is on the side of the object to be observed Rotating eyepiece tube, different microscopes may have different methods, for some, the direction is confirmed when installing the eyepiece tube of the microscope, for some, by rotating the body of the microscope, and for some, by rotating the support member on the support or holder of the microscope. |
Clamps and StandsClose Λ
| Base clamp is the clamp of the microscope stand that is clamped on the side of the desktop. Pay attention to confirm in advance whether the material and thickness of the tabletop can withstand the weight of the microscope stand and the body. |
PackagingClose Λ
| After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection. For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem. |
| Contains | |||||||
| Parts Including |
|
| Packing | |
| Packaging Type | Carton Packaging |
| Packaging Material | Corrugated Carton |
| Packaging Dimensions(1) | 50x33x13cm (19.685x12.992x5.118″) |
| Inner Packing Material | Plastic Bag |
| Ancillary Packaging Materials | Expanded Polystyrene |
| Gross Weight | 6.40kg (14.11lbs) |
| Minimum Packaging Quantity | 1pc |
| Transportation Carton | Carton Packaging |
| Transportation Carton Material | Corrugated Carton |
| Transportation Carton Dimensions(1) | 50x33x13cm (19.685x12.992x5.118″) |
| Total Gross Weight of Transportation(kilogram) | 6.40 |
| Total Gross Weight of Transportation(pound) | 14.11 |
 |
