Quick Overview

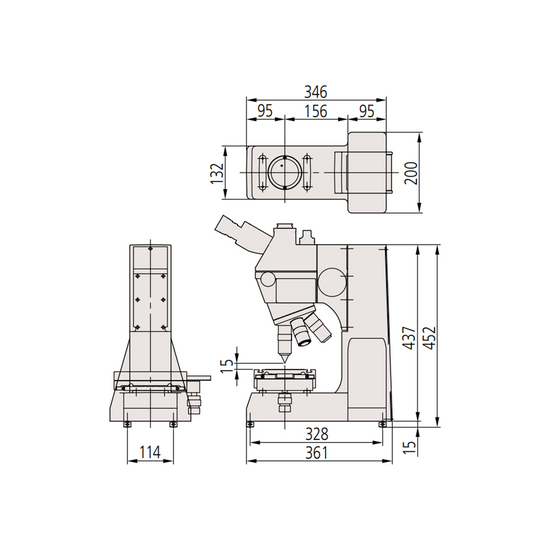

Base Dimensions: 346x200mm. For mounting the VMU, WIDE VMU, or FS70 microscope unit.
Mitutoyo-378-730 Column Stand
Compound Microscope Stand
| Stand Height | 437mm |
| Base Type | Heavy Duty Base |
| Base Shape | Rectangle |
| Base Dimensions | 346x200mm |
| Net Weight | 6.70kg (14.77lbs) |
| Applied Field | For mounting the VMU, WIDE VMU, or FS70 microscope unit |
Technical Info
Instructions
Microscope StandClose Λ
| Microscope stand have many options depending on the needs, especially stereo microscope stand, there are several factors to consider before choosing: Stability: microscope stand is used to prop up the microscope body. The stand should be selected according to the size of the microscope mainframe. The stability of the stand determines the stability of the microscope in use, and its various adapters and screws must be tightly locked. Volume size: limited by the working environment and space of the workbench. Workspace and scope: the size of the workspace of the object being observed and the height of the object being observed should be considered. Choice of lighting: some stands are equipped with a light source, but some are not, depending on whether there are conditions to add additional lighting. Operational requirements: 1. Install the stand as required. 2. Arrange a reasonable fixed position for the stand. 3. Carefully tighten the microscope mainframe. 4. Arrange the location of the additional light source reasonably, and place the electric wire in a position that does not interfere with the work. 5. Connect the various kinds of peripheral devices, such as cameras, monitors, computers and so on. |
