Quick Overview
Dia. 85mm Scope Holder . Track Length: 270mm. Focus Distance: 160mm. E-Arm Mounting Adapter: 5/8 in. End Adapter. With Safety protection against falling Screw.

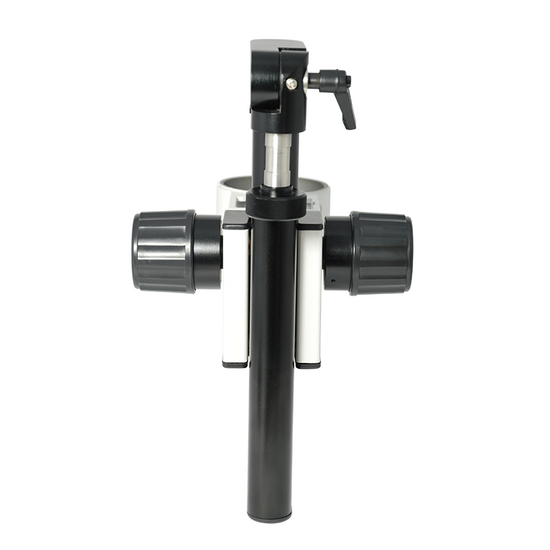

SA02031104 85mm Inclinable Focus Drive
Inclinable Focus Drive
| Holder Adapter Type | Dia. 85mm Scope Holder |
| Track Length | 270mm |
| Focus Mode | Manual |
| Focus Distance | 160mm |
| Coarse Focus Distance per Rotation | 23mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| E-Arm Rotation Range on Z Direction | 180° |
| E-Arm Mounting Adapter | 5/8 in. End Adapter |
| Safety Protection Against Falling Screw | With Safety protection against falling Screw |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 2.65kg (5.84lbs) |
Technical Info
Instructions
Inclinable Focus DriveClose Λ
| Inclinable focus drive is a kind of focus drive with a much higher focusing height. It increases the longitudinal focusing length of the focus drive, which is convenient for the microscope to observe in a wider range. Especially when observing objects with a particularly large height change, it is no longer necessary to repeatedly adjust the height of the large stand behind, so that the user operation can be more flexible and convenient. |
Focusing Knob Tightness AdjustableClose Λ
| Different microscope bodies, different human operations, and different requirements for observation and operation, all require adjustment of the pre-tightening force of the stand that support microscope body. Facing the stand just right, use both hands to reverse the force to adjust the tightness. (face the knob of one side just right, clockwise is to tighten, counterclockwise is to loosen) In general, after long-time use, the knob will be loose, and adjustment is necessary. |
PackagingClose Λ
| After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection. For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem. |
| Packing | |
| Packaging Type | Carton Packaging |
| Packaging Material | Corrugated Carton |
| Packaging Dimensions(1) | 39x37x19cm (15.354x14.567x7.481″) |
| Inner Packing Material | Plastic Bag |
| Ancillary Packaging Materials | Expanded Polystyrene |
| Gross Weight | 3.65kg (8.05lbs) |
| Minimum Packaging Quantity | 1pc |
| Transportation Carton | Carton Packaging |
| Transportation Carton Material | Corrugated Carton |
| Transportation Carton Dimensions(1) | 39x37x19cm (15.354x14.567x7.481″) |
| Total Gross Weight of Transportation(kilogram) | 3.65 |
| Total Gross Weight of Transportation(pound) | 8.05 |
| Quantity of One Transportation Carton | 1pc |
 |
