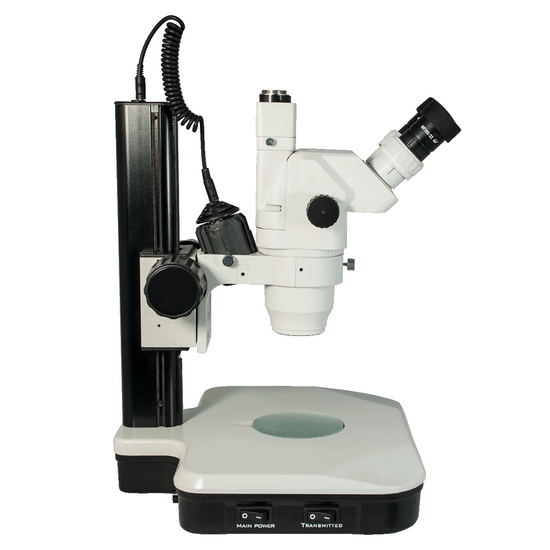

6.7-45X Track Stand HF Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02020032

In Stock

Log in for pricing

Write a Review
SKU:
SZ02020032
Condition:
New
Warranty:
5/1 Years
  • 6.7-45X Track Stand HF Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02020032
  • 6.7-45X Track Stand HF Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02020032
  • 6.7-45X Track Stand HF Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02020032
  • 6.7-45X Track Stand HF Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02020032
  • 6.7-45X Track Stand HF Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02020032
  • 6.7-45X Track Stand HF Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02020032
  • 6.7-45X Track Stand HF Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02020032
Instruction Manual
SZ0501 Zoom Body Instruction Manual-English.doc
SA0216 Illumination Base Instruction Manual-English.pdf

Quick Overview
Finite. Total Magnification: 6.7-45X. 10X High Eyepoint Eyepiece. 1X Built-in Objective. Standard Coupler: 0.5X. Zoom Ratio: 1:6.7. Trinocular. Body Mounting Size for Stand: Dia. 76mm. Eye Tube Angle: 45°. Eyepiece Field of View: Dia. 22mm. Track Stand. Illumination Type: HF Dual Illuminated Light.

SZ02020032 Trinocular Zoom Stereo Microscope
Optical System Specifications
Optical SystemFinite
System Optical Magnification6.7-45X
Expandable System Optical Magnification (Optional Parts Required)2-270X
Trinocular Optical Magnification0.335-2.25X
Total Magnification6.7-45X
Standard Eyepiece10X High Eyepoint Eyepiece
Standard Objective1X Built-in Objective
Standard Coupler0.5X
System Field of View Dia. 4.9-32.8mm
Expandable System Field of View Dia. 1-109.5mm
System Working Distance100mm
Expandable System Working Distance26-287mm
Trinocular Zoom Body
Body Optical SystemFinite
Body Magnification6.7-45X
Zoom Range0.67-4.5X
Zoom Ratio1:6.7
Zoom Operating ModeWith Two Horizontal Knobs
Observation MethodTrinocular
Body Mounting Size for Stand Dia. 76mm
Body Mount Type for CouplerFastening Screw
Body Mount Size for Coupler38x34mm
Nosepiece Adapter Size for Ring Light Dia. 54mm
Eye Tube Adjustment ModeCompensating
Eye Tube Angle45°
Erect/Inverted ImageErect image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment54-75mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Diopter Adjustable±5°
Image Port Switch Mode0/100 Switch Trinocular
Eyepiece TypeStandard Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 22mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 24mm
Eye Guard InstallationIndependent Eye Guard
Eye Guard Mount Size Dia. 36mm
Built-in Objective Magnification1X
Objective Working Distance100mm
Objective Screw ThreadM48x0.75mm
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight1.73kg (3.81lbs)
Track Stand
Illumination TypeHF Dual Illuminated Light
Top Illumination TypeHalogen Light
Bottom Illumination TypeFluorescent Light
Microscope Plate
95x5mm Matte Glass Plate
Plate TypeMatte Finish Glass Plate
Plate Size Dia. 95x5mm
MaterialMatte Finish Float Glass
Applied FieldFor ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand
95x5mm Black White Plate
Plate TypeBlack White Plate
Plate Size Dia. 95x5mm
MaterialPlastic (ABS)
ColorBlack, White
Applied FieldFor ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand
Illumination Base
HF Illumination Base
Plate TypeMatte Finish Glass Plate
Plate MaterialClear Float Glass
Plate Size Dia. 95x5mm
Illumination Base TypeHF Dual Illuminated Base
Illumination Base Dimensions330x290x45mm (12.992x11.417x1.772 in. )
Mirror TypeDouble Sides Plane/Concave Mirror
Mirror Rotatable Range360°
Mirror Diameter Dia. 50mm
Bulb Rated Power15W
Bulb Rated VoltageDC 12V
Bulb ShapeUmbrella Shape
Light Bulb Pin StandardG4 (4mm)
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight2.10kg (4.63lbs)
Applied FieldFor ST0201 and ST0203 Series Microscope Stand
Iris Diagram
Transmitted Illumination Iris
Aperture DiaphragmFixed Aperture Diaphragm
Aperture Diaphragm Mounting PositionVertical Illuminator
Aperture Diaphragm Outer Diameter Dia. 91mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Applied FieldFor SA0216 Series Illumination Base
HF Illumination Base
Aperture DiaphragmFixed Aperture Diaphragm
Aperture Diaphragm Mounting PositionVertical Illuminator
Aperture Diaphragm Outer Diameter Dia. 91mm
Fluorescence Bulb
9W Fluorescent Bulb
Bulb Rated Power9W
Bulb ShapeDouble U Shape
MaterialGlass
Net Weight0.02kg (0.04lbs)
Applied FieldFor SA02161103 Illumination Base
HF Illumination Base
Bulb Rated Power9W
Bulb ShapeDouble U Shape
Halogen Bulb
12V 15W Halogen Bulb
Bulb Rated Power15W
Bulb Rated VoltageDC 12V
Bulb ShapeUmbrella Shape
Bulb Mounting ModeBi-Pin
Light Bulb Pin StandardG4 (4mm)
MaterialGlass
Applied FieldFor SA02161102, ML05321131, ML05321132 Illumination Base
Coupler/C-mount Adapter
0.5X Coupler
Coupler Mount Size for Trinocular Dia. 38mm
Coupler Mount Type for BodyFastening Screw
Coupler Mount Size for Body Dia. 38mm
Adjustable CouplerAdjustable
Coupler for Microscope TypeStereo Compatible
Coupler Magnification0.5X
For Camera Sensor SizeUnder 1/2 in.
C/CS-Mount CouplerC-Mount
Surface TreatmentSpray Paint
MaterialMetal
ColorCamel Grey
Net Weight0.14kg (0.30lbs)
Applied FieldFor SZ05011131, SZ05011132, SZ05011133, SZ05011151 Trinocular Zoom Body
Power Supply
Power Cable
Power Cord Connector TypeDC Plug
Length0.4m
MaterialPlastic
ColorBlack
Fuse
1A Fuse
Fusing Current1A/220V
Fuse TypeGlass Tube Fuse (Fast Acting)
Fuse Size5x20
Fuse StandardGB
MaterialGlass
ColorSilver
Net Weight0.002kg (0.004lbs)
Other Parameters
Surface TreatmentSpray Paint
MaterialMetal
ColorBlack, White
Net Weight7.25kg (15.98lbs)
This Kit Includes SZ05011131, SZ05016131, SA02161103, ST02031102
Series
SZ0501SZ02020032




Contains
Parts Including
PictureP/NProduct Name
SZ070261310.5X Coupler
SZ05011131Trinocular Zoom Body
ST0203110276mm Track Stand
SA02161103HF Illumination Base
Desiccant Bag1 Bag
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)36x20x27cm (14.173x7.874x10.630″)
Packaging Dimensions(2)38x36x19cm (14.961x14.173x7.480″)
Packaging Dimensions(3)38x36x19cm (14.961x14.173x7.480″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight9.59kg (21.14lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)36x20x27cm (14.173x7.874x10.630″)
Transportation Carton Dimensions(2)38x36x19cm (14.961x14.173x7.480″)
Transportation Carton Dimensions(3)38x36x19cm (14.961x14.173x7.480″)
Total Gross Weight of Transportation(kilogram)9.59
Total Gross Weight of Transportation(pound)21.14
Quantity of One Transportation Carton3pc

Technical Info

Instructions
Stereo MicroscopeClose Λ
Stereo microscopes are also known as the anatomical microscopes, or dissecting microscopes. Many people would refer to stereo microscope as Stereo, and the Continuous Zoom Microscope as Zoom.
Stereo microscopes are a kind of binocular microscope that observes an object with both eyes from different angles, thereby causing a stereoscopic effect.
The stereo microscope adopts two independent optical paths, and the left and right beams in the binocular tube have a certain angle, generally 12°~15°. The objects are observed from different angles of the two optical paths, causing a three-dimensional effect on the eyes, and therefore a stereo microscope is a true 3D microscope.

Compared with other compound microscopes, stereo microscopes belong to the low power optical microscope. The field of view of stereo microscopes has a large diameter, its magnification is generally below 200X for optical magnification. When the magnification is greater than 40X, the stereoscopic effect of the image will be relatively poor.
Therefore, the advantage of the stereo microscope is not that its magnification is large, but that its working distance is long and the depth of field is large, which is particularly suitable for observing objects with a high degree of three-dimensional features.
For compound microscope with a single optical path, what we see is only a flat image. Although most compound microscopes have two eyepieces, what we actually see is one and the same image, and this is just to facilitate the observation habits of our two eyes. The stereo microscope has two optical paths (two objective lenses or one common objective lens), and only the three-dimensional sense produced under observation of the two optical paths can make people judge the three-dimensional spatial position of the observed object, which can generate a sense of distance under the microscope. Therefore, only stereo microscope can be used for operation under the microscope which is very suitable for surgery, dissection, industrial welding, assembly, precision instrument repair and so on.

The stereo microscope can be equipped with a wide range of accessories. It can be combined with various digital cameras and photographic interfaces, microscope cameras, eyepiece cameras and image analysis software to form a digital imaging system. It can be connected to a computer for analysis and processing, and its lighting system also has different options for illumination, such as reflected light, transmitted light, etc.
Stereoscopic microscopes are widely used in various fields, such as biology, medicine, agriculture, forestry, marine life, and other various departments. They are especially used in industry, for macroscopic surface observation, analysis, and microscopic operations.

Stereoscopic microscopes were invented by American instrument engineer Horatio S. Greenough in the 1890s, manufactured by Carl Zeiss Company of Germany, and are widely used in scientific research, archaeological exploration, industrial quality control, biopharmaceuticals, and more.


Stereo Microscope Quick Operation Steps
Step 1
In the working position, place the microscope on the workbench after installation.
Connect the power source, and turn on the light source.
Place an observation sample (also known as specimen) such as a coin etc. under the microscope or on the base.
Adjust the focus knob of the stand by visually measuring the height, or based on the working distance parameters of the objective lens used.

Step 2
Adjust the zoom knob of the microscope to the lowest magnification. Find the approximate image by adjusting the focus knob. Find a certain feature point of the sample in approximately the center position.
Align the feature point of the specimen and gradually adjust to a large magnification.
Adjust the lift set of the microscope to find the focal plane of the highest magnification. During the adjustment process, use a sample with obvious feature points (such as a coin) to compare the sharpness of the image.
Turn the zoom knob again to the lowest magnification. It is possible that the image may be out of focus. At this time, do not adjust the focusing knob. Simply adjust the diopters on the two eyepieces to accommodate differences in eye observations (diopter varies from person to person).
Adjust the viewing distance of the eyepiece to achieve a comfortable position.
At this point, the microscope is already parfocal, i.e., when the microscope is changed from high power to low power, the entire image is in the focal plane. To observe the same sample, it is not necessary to adjust other parts of the microscope. Only the zoom knob is needed to zoom in on the specimen for observation.

Step 3
Adjust the light source, including the brightness and angle of incidence to get the best image or see additional details.

Step 4
Adjust any other necessary equipment such as the photographic eyepieces, cameras, etc., to show the image on the display or to find the sharpest image.

When using binocular observation and the left and right images or sharpness is not the same, first adjust the diopter adjustment on the eyepiece. This adjusts the parallax of the two eyes, so that the image of the two eyes are consistent. It is normal to feel viewing fatigue when using a microscope for a long time. Take a break before working again to adapt your eyes to using the microscope. If the microscope is used for too long, or if there is a problem inside the microscope due to large temperature difference, vibration, etc., please contact your dealer or our service staff on the BoliOptics website.
FiniteClose Λ
Microscopes and components have two types of optical path design structures.
One type is finite optical structural design, in which light passing through the objective lens is directed at the intermediate image plane (located in the front focal plane of the eyepiece) and converges at that point. The finite structure is an integrated design, with a compact structure, and it is a kind of economical microscope.
Another type is infinite optical structural design, in which the light between the tube lens after passing the objective lens becomes "parallel light". Within this distance, various kinds of optical components necessary such as beam splitters or optical filters call be added, and at the same time, this kind of design has better imaging results. As the design is modular, it is also called modular microscope. The modular structure facilitates the addition of different imaging and lighting accessories in the middle of the system as required.
The main components of infinite and finite, especially objective lens, are usually not interchangeable for use, and even if they can be imaged, the image quality will also have some defects.

The separative two-objective lens structure of the dual-light path of stereo microscope (SZ/FS microscope) is also known as Greenough.
Parallel optical microscope uses a parallel structure (PZ microscope), which is different from the separative two-object lens structure, and because its objective lens is one and the same, it is therefore also known as the CMO common main objective.
System Optical MagnificationClose Λ
The magnification of the objective lens refers to the lateral magnification, it is the ratio of the image to the real size after the original image is magnified by the instrument. This multiple refers to the length or width of the magnified object.
System optical magnification is the product of the eyepiece and the objective lens (objective lens zoom set) of the optical imaging part within the system.
Optical magnification = eyepiece multiple X objective lens/objective lens set

The maximum optical magnification of the microscope depends on the wavelength of the light to which the object is illuminated. The size of the object that can be observed must be greater than the wavelength of the light. Otherwise, the light cannot be reflected or transmitted, or recognized by the human eye. The shortest wavelength of ultraviolet light is 0.2 microns, so the resolution of the optical microscope in the visible range does not exceed 0.2 microns, or 200 nanometers. This size is converted to the magnification of the microscope, and it is the optical magnification of 2000X. Usually, the compound microscope can achieve 100X objective lens, the eyepiece is 20X, and the magnification can reach 2000X. If it is bigger, it will be called "invalid magnification", that is, the image is large, but the resolution is no longer increased, and no more details and information can be seen.
Trinocular Optical MagnificationClose Λ
When the instrument is conducting electronic image magnification and observation through a camera or the like, the optically magnified portion may not be the optical path that passes through the "eyepiece-objective lens" of the instrument, at this time, the calculation method of the magnification is related to the third-party photo eyepiece passed.
The trinocular optical magnification is equal to the multiplier product of objective lens (objective lens set) and the photo eyepiece

Trinocular optical magnification = objective lens X photo eyepiece
Total MagnificationClose Λ
Total magnification is the magnification of the observed object finally obtained by the instrument. This magnification is often the product of the optical magnification and the electronic magnification.
When it is only optically magnified, the total magnification will be the optical magnification.

Total magnification = optical magnification X electronic magnification
Total magnification = (objective X photo eyepiece) X (display size / camera sensor target )
System Field of ViewClose Λ
Field of View, is also called FOV.
The field of view, or FOV, refers to the size of the object plane (i.e., the plane of the point of the observed object perpendicular to the optical axis), or of its conjugate plane (i.e., object to primary image distance), represented by a line value.
System field of view is the size of the actual diameter of the image of the terminal display device of the instrument, such as the size of the image in the eyepiece or in the display.

Field of view number refers to the diameter of the field diaphragm of the objective lens, or the diameter of the image plane formed by the field diaphragm.
Field of view number of objective lens = field of view number of eyepiece / (objective magnification / mechanical tube length)

Large field of view makes it easy to observe the full view and more range of the observed object, but the field of view (FOV) is inversely proportional to the magnification and inversely proportional to the resolution, that is, the larger the field of view, the smaller the magnification, and also the lower the resolution of the object to be observed.
There are usually two ways to increase the field of view, one is to replace with an objective lens of a smaller multiple, or to replace with an eyepiece of a smaller multiple.
System Working DistanceClose Λ
Working distance, also referred to as WD, is usually the vertical distance from the foremost surface end of the objective lens of the microscope to the surface of the observed object.
When the working distance or WD is large, the space between the objective lens and the object to be observed is also large, which can facilitate operation and the use of corresponding lighting conditions.
In general, system working distance is the working distance of the objective lens. When some other equipment, such as a light source etc., is used below the objective lens, the working distance (i.e., space) will become smaller.

Working distance or WD is related to the design of the working distance of the objective lens. Generally speaking, the bigger the magnification of the objective lens, the smaller the working distance. Conversely, the smaller the magnification of the objective lens, the greater the working distance.
When it is necessary to change the working distance requirement, it can be realized by changing the magnification of the objective lens.
Trinocular Zoom BodyClose Λ
Trinocular zoom body is the main body of a stereo microscope that has continuous zooming functions. In addition to the two eyepieces for observation, there is a third optical path (image port), which is usually a set of optical paths borrowed from the microscope for connecting to the camera to facilitate the observation with the display or connecting to a computer. Usually, the third ocular of the body can be configured with different photo eyepieces, or other interfaces to connect to different webcam, cameras and so on.
This body usually needs to be placed on a microscope stand for use. Generally, a variety of eyepieces and objective lenses with different magnifications can be selected, and high-end stereo microscope usually has a wide range of accessories for selection.
Zoom RangeClose Λ
Zoom in zoom microscope means to obtain different magnifications by changing the focal length of the objective lens within a certain range through adjustment of some lens or lens set while not changing the position of the object plane (that is, the plane of the point of the observed object perpendicular to the optical axis) and the image plane (that is, the plane of the image imaging focus and perpendicular to the optical axis) of the microscope.
Zoom range refers to the range in which the magnification is from low to high. In the zoom range of the microscope, there is no need to adjust the microscope knob for focusing, and ensure that the image is always clear during the entire zoom process.
The larger the zoom range, the stronger the adaptability of the range for microscope observation, but the image effects at both ends of the low and high magnification should be taken into consideration, the larger the zoom range, the more difficult to design and manufacture, and the higher the cost will be.
Zoom RatioClose Λ
Zoom ratio is the ratio of the maximum magnification / the minimum magnification. Expressed as 1: (ratio of maximum magnification / minimum magnification). If the maximum magnification is 4.5X, the minimum magnification is 0.7X, then the zoom ratio = 4.5 / 0.7 = 6.4, the zoom ratio will be 1:6.4.
Zoom ratio is obtained by the intermediate magnification group of the microscope. When the magnification is increased or decreased by using other objective lenses, the zoom ratio does not change accordingly.
With Two Horizontal KnobsClose Λ
When microscope body changes the magnification, it is realized by adjusting the horizontally placed zoom knob. Because the knob is relatively small, it is therefore easier to zoom and the image is stable.
For most of the dual stereo microscopes, magnification is realized by adjusting the zoom drum or nosepiece below. When the nosepiece is relatively big, frequent operation is more laborious. Magnifying while observing, the microscope may shake, thereby causing eye discomfort for observation.
Using zoom drum or nosepiece type microscope, if there is a ring light under the microscope, the ring light carries the wire, and when magnification conversion is often required, the ring light and the wire will swing along with the magnification, which makes the operation inconvenient. This situation will not occur to zoom with two horizontal knobs.
CompensatingClose Λ
For compensating eyetube, when changing the interpupillary distance, it requires two hands to operate at the same time, with one hand fixing one eyepiece tube, and the other pushing or pulling the other, or both the left and the right hand pushing the two eyetubes at the same time, and changing the position of any one of the eyetube at will.
Eye Tube AngleClose Λ
Usually the Microscope Eyetube is 45°, some is 30°, Tiltable Eyetube Angle design of a microscope is also known as the ergonomics microscope.
0-30° or 0-45° is an ergonomic design. When the mechanical tube length / focal length of the tube of the microscope is relatively big, the microscope is relatively high, and the user's height or the seat of the work desk is not suitable, long-term use of microscope may cause sitting discomfort.
Eyepiece tube with variable angle can freely adjust the angle without lowering the head. Especially when it is close to 0 degree and the human eye is close to horizontal viewing, long-time or long-term use can avoid fatigue damage to the cervical vertebra.
Erect/Inverted ImageClose Λ
After imaging through a set of objective lenses, the object observed and the image seen by the human eye is inverted. When the observed object is manipulated, move the specimen or object, the image will move in the opposite direction in the field of view. Most of the biological microscopes are reversed-phase designs.
When needing to operate works with accurate direction, it is necessary to design it into a forward microscope. Generally stereo microscopes and metallurgical microscopes are all of erect image design.
When observing through the camera and display, the erect and inverted image can be changed by the orientation of the camera.
360° Degree RotatableClose Λ
The eyepiece of the microscope can have different viewing or observing directions. When the position of the microscope is uncomfortable, the direction of the eyepiece tube of the microscope can be adjusted, to facilitate observation and operation.

Placement method of different viewing angles of the microscope:
General direction: the support column is behind the object to be observed
Reverse direction: the support column is in front of the object to be observed
Lateral direction: the support column is on the side of the object to be observed
Rotating eyepiece tube, different microscopes may have different methods, for some, the direction is confirmed when installing the eyepiece tube of the microscope, for some, by rotating the body of the microscope, and for some, by rotating the support member on the support or holder of the microscope.
Interpupillary AdjustmentClose Λ
The distance between the two pupils of the human eye is different. When the image of exit pupil of the two eyepieces of the microscope are not aligned with the entry pupil of the eye, the two eyes will see different images, which can cause discomfort.
Adjust the distance between the two eyepieces, to accommodate or adapt to the pupil distance of the observer's eyes. The adjustment range is generally between 55-75mm.
Eye Tube Diopter AdjustableClose Λ
For most people, their two eyes, the left and the right, have different vision; for the eyepiece tube, the eyepoint height of the eyepiece can be adjusted to compensate for the difference in vision between the two eyes, so that the imaging in the two eyes is clear and consistent.
The range of adjustment of the eyepiece tube is generally diopter plus or minus 5 degrees, and the maximum differential value between the two eyepieces can reach 10 degrees.

Monocular adjustable and binocular adjustable: some microscopes have one eyepiece tube adjustable, and some have two eyepiece tubes adjustable. First, adjust one eyepiece tube to the 0 degree position, adjust the microscope focusing knob, and find the clear image of this eyepiece (when the monocular adjustable is used, first adjust the focusing knob to make this eyepiece image clear), then adjust the image of another eyepiece tube (do not adjust the focusing knob again at this time), repeatedly adjust to find the clear position, then the two images are clear at the same time. For this particular user, do not adjust this device anymore in the future.
As some microscopes do not have the vision adjustment mechanism for the eyepiece tube, the vision of the two eyes are adjusted through the eyepiece adjustable.
Image Port Switch ModeClose Λ
The third eyepiece splitting in the trinocular microscope is to borrow one of the two sets of eyepiece optical paths as the photographic light path. The beam split prism or beam splitter can reflect part of the image light to the eyepiece, and part passes through to the third eyepiece photographic light path, such a trinocular microscope is called trinocular simultaneous imaging microscope, or true-trinocular.
The beam split prism or beam splitter of the trinocular simultaneous imaging microscope or true-trinocular often has different splitting modes, such as 20/80 and 50/50, etc. Usually, the former is the luminous flux ratio of the eyepiece optical path, and the latter is the luminous flux ratio of the photographic optical path.

The advantage of true-trinocular is that, the real three optical paths can be imaged at the same time, and are not affected by the simultaneous use of the eyepiece observation and the photographic optical path (display). The disadvantage is that, because of the reason of the splitting, the image light of the photography is only a part. In theory, the image effect will be affected, and the effect is more obvious in the binocular eyepiece observation. If viewed closely, one will find that the eyepiece of the light path is relatively dark. However, in the current optical design and materials, the impact on the actual work is not very big, especially in the observation of low magnification objective lens, it has basically no effect at all, and therefore used by many people.
Eyepiece Optical MagnificationClose Λ
Eyepiece optical magnification is the visual magnification of the virtual image after initial imaging through the eyepiece. When the human eye observes through the eyepiece, the ratio of the tangent of the angle of view of the image and the tangent of the angle of view of the human eye when viewing or observing the object directly at the reference viewing distance is usually calculated according to 250 mm/focal length of eyepiece.
The standard configuration of a general microscope is a 10X eyepiece.
Usually, the magnification of the eyepiece of compound microscope is 5X, 8X, 10X, 12.5X, 16X, 20X.
As stereo microscope has a low total magnification, its eyepiece magnification generally does not use 5X, but can achieve 25X, 30X and other much bigger magnification.
Eyepiece Field of ViewClose Λ
The eyepiece field of view is the diameter of the field diaphragm of the eyepiece, or the diameter of the image plane of the field diaphragm imaged by the field diaphragm.
The diameter of a large field of view can increase the viewing range, and see more detail in the field of view. However, if the field of view is too large, the spherical aberration and distortion around the eyepiece will increase, and the stray light around the field of view will affect the imaging effect.
Eyepoint TypeClose Λ
Eye point refers to the axial distance between the upper end of the metal frame of the eyepiece and the exit of pupil.
The exit of pupil distance of high eyepoint eyepiece is farther than that of the eye lens of the ordinary eyepiece. When this distance is greater than or equal to 18mm, it is a high eyepoint eyepiece. When observing, one does not need to be too close to the eyepiece lens, making it comfort to observe, and it can also be viewed with glasses. Generally, there is a glasses logo on the eyepiece, indicating that it is a high eyepoint eyepiece.
Independent Eye GuardClose Λ
The main function of the eye guard is to block the ambient stray light, which makes it more clearer when observing through the eyepiece. In addition, the height of the eye guard is basically the eyepoint exit pupil distance of the eyepiece, and when the eye is close to the eye guard, it is the exact position for clear imaging.
Built-in Objective MagnificationClose Λ
The objective of a stereo microscope is mostly built-in objective, which is usually mounted in the microscope body, and it is one or a set of lenses closest to the object to be observed.
When not marked, the built-in objective is 1X.
Objective Working DistanceClose Λ
The objective working distance is the vertical distance from the foremost surface end of the objective of the microscope to the object surface to be observed.
Generally, the greater the magnification, the higher the resolution of the objective, and the smaller the working distance, the smaller the field of view. Conversely, the smaller the magnification, the lower the resolution of the objective, and the greater the working distance, and greater the field of view.
High-magnification objectives (such as 80X and 100X objectives) have a very short working distance. Be very careful when focusing for observation. Generally, it is after the objective is in position, the axial limit protection is locked, then the objective is moved away from the direction of the observed object.
The relatively greater working distance leaves a relatively large space between the objective and the object to be observed. It is suitable for under microscope operation, and it is also easier to use more illumination methods. The defect is that it may reduce the numerical aperture of the objective, thereby reducing the resolution.
Objective Screw ThreadClose Λ
For microscopes of different manufacturers and different models, the thread size of their objectives may also be different.
In general, the objective threads are available in two standard sizes, allowing similar objectives between different manufacturers to be used interchangeably.
One is the British system: RMS type objective thread: 4/5in X 1/36in,
One is metric: M25 X 0.75mm thread.
Track StandClose Λ
Throughout the focusing range, the track stand moves up and down along the guide rail through the focusing mechanism to achieve the purpose of focusing the microscope. This kind of structure is relatively stable, and the microscope is always kept moving up and down vertically along a central axis. When the focus is adjusted, it is not easy to shake, and there is no free sliding phenomenon. It is a relatively common and safe and reliable accessory.
The size of the stand is generally small, flexible and convenient, and most of them are placed on the table for use, Therefore, together with the post stand, it is also called “desktop or table top stand".
With regard to the height of the stand, most manufacturers usually do not make it very high. If the guide rail is long, it is easy to deform, and relatively more difficult .
Dia. 76mm Scope HolderClose Λ
The 76mm stand scope holder is the most popular microscope body adapter size, suitable for stereo microscopes produced by most manufacturers.

Place the microscope body in a 76mm scope holder, tighten with screws to avoid shaking when the microscope is in use.
Because this stand scope holder is very common, some special-sized microscopes can also borrow and use this stand, but only need a specific adapter to connect the microscope body with a diameter of less than 76mm.
Stand Throat DepthClose Λ
Stand throat depth, also known as the throat depth, is an important parameter when selecting a microscope stand. When observing a relatively large object, a relatively large space is required, and a large throat depth can accommodate the object to move to the microscope observation center.
Focusing Knob Tightness AdjustableClose Λ
Different microscope bodies, different human operations, and different requirements for observation and operation, all require adjustment of the pre-tightening force of the stand that support microscope body.
Facing the stand just right, use both hands to reverse the force to adjust the tightness. (face the knob of one side just right, clockwise is to tighten, counterclockwise is to loosen)
In general, after long-time use, the knob will be loose, and adjustment is necessary.
Microscope PlateClose Λ
According to different objects to be observed, the appropriate platen should be selected. The microscope plate materials include black and white, black and white finish; transparent glass, frosted glass, metal, etc.
Standard stands are generally configured with a suitable microscope plate, but different plates may need to be purchased separately.
Black and white microscope plate are made of general plastics, and the different backgrounds in black and white make the object more prominent.
Finish microscope plate eliminates reflections during observation.
Transparent glass plate is used when observing transparent or translucent objects, and the use of transmitted light source is to make the light penetrate the object to be observed as much as possible.
Finish glass plate, with its rough glass surface, can make the transmitted light more uniform and create a diffusing effect, avoiding exposure of the light shadow of the filament directly onto to the observed object.
Metal plate, relatively more solid, is more suitable when it is necessary to operate and cut.
Microscope plate is generally round shaped, on one side of the base there is a spring clip. When installing, align the plate with the clamp and push it in, and then press down the other end, so that the plate is smoothly embedded in to the circular card slot of the bottom plate.
When removing, grab the other end of the clip, push and lift up the plate.
Aperture DiaphragmClose Λ
The diaphragm that determines the image plane necessary for imaging through the objective lens is called the aperture diaphragm. All irises of the traditional microscope are aperture diaphragm.

The function of aperture diaphragm is mainly to limit the size of the imaging beam, change the luminous flux, thereby improving the imaging quality. The size of the aperture diaphragm is usually variable, and it is also called iris diaphragm. When the aperture diaphragm lock is too small and the luminous flux of the imaging beam is insufficient, the fraction ratio of the objective lens is low, the imaging will become dark; however, when the aperture diaphragm is too large, there will be strong light in the field of view, and even though viewed from the eyepiece, it may have high resolution, the image on the display will be overexposed.
After replacing the objective lens, the aperture diaphragm should also be adjusted appropriately, rather than adjusting the brightness of the light.
The aperture diaphragm of the transmitted light is generally mounted on the microscope base. The aperture diaphragm of the biological microscope is mounted on the condenser device. On the other hand, the aperture diaphragm of compound microscopes, such as large upright metallurgical or fluorescence microscopes, is generally mounted on the in the coaxial reflection illuminator.
In the use of the aperture diaphragm, it is often necessary to adjust the center of the diaphragm. Generally, it is adjusted together with the condenser. Please refer to the adjustment method of the condenser.
Coupler/C-mount AdapterClose Λ
Coupler/C-mount adapter is an adapter commonly used for connection between the C-adapter camera (industrial camera) and a microscope.
Adjustable CouplerClose Λ
On the coupler/C-mount-adapter, there is an adjustable device to adjust the focal length.
Coupler for Microscope TypeClose Λ
Different coupler/C-mount-adapters are suitable for different microscopes. For some, some adapter accessories need to be replaced. See the applicable range of each coupler/C-mount-adapter for details.
Coupler MagnificationClose Λ
Coupler magnification refers to the line field magnification of the coupler/C-mount-adapter. With different magnifications of the adapter lens, images of different magnifications and fields of view can be obtained. The size of the image field of view is related to the sensor size and the coupler/C-mount-adapter magnification.

Camera image field of view (mm) = sensor diagonal / coupler/C-mount-adapter magnification.

For example: 1/2 inch sensor size, 0.5X coupler/C-mount-adapter coupler, field of view FOV (mm) = 8mm / 0.5 = 16mm.
The field of view number of the microscope 10X eyepiece is usually designed to be 18, 20, 22, 23mm, less than 1 inch (25.4mm). Since most commonly used camera sensor sizes are 1/3 and 1/2 inches, this makes the image field of view on the display always smaller than the field of view of the eyepiece for observation, and the visual perception becomes inconsistent when simultaneously viewed on both the eyepiece and the display. If it is changed to a 0.5X coupler/C-mount-adapter, the microscope image magnification is reduced by 1/2 and the field of view is doubled, then the image captured by the camera will be close to the range observed in the eyepiece.
Some adapters are designed without a lens, and their optical magnification is considered 1X.
For Camera Sensor SizeClose Λ
For the size of the lens field of view of the coupler/C-mount-adapter, in the design process, the size of the camera sensor imaging target should be considered. When the field of view of the lens is smaller than the target plane of the camera, “black border” and “dark corner” will appear.
The general microscope coupler/C-mount adapters are generally designed for the 1/2" camera targets. When a camera of 2/3 or larger target is used, the “dark corner” phenomenon will appear in the field of view. Especially, at present, DSLR cameras generally use large target plane design (1 inch full field of view), when used for microscopic photographing, the general DSLR camera coupler/C-mount adapter will have “black border”.
Generally, the “dark corner” that appears on the field of view is often that the center of the microscope and the camera are not aligned. Adjust the position of the screw on the camera adapter, or turn the camera adapter to adjust or change the effect.
C/CS-Mount CouplerClose Λ
At present, the coupler/C-mount adapter generally adopts the C/CS-Mount adapter to match with the industrial camera. For details, please refer to "Camera Lens Mount".
PackagingClose Λ
After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection.
For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem.




Optical Data




Microscope Optical Data Sheet
P/NObjectiveObjective Working DistanceEyepiece
SZ05011131   (10X  Dia. 22mm)SZ05013411   (15X  Dia. 16mm)SZ05013611   (20X  Dia. 12mm)SZ05013711   (25X  Dia. 9mm)SZ08013811   (30X  Dia. 9mm)
MagnificationField of View(mm)MagnificationField of View(mm)MagnificationField of View(mm)MagnificationField of View(mm)MagnificationField of View(mm)
SZ050141110.3X287mm2.01-13.5X16.3-109.45mm3.02-20.25X11.85-79.6mm4.02-27X8.89-59.7mm5.03-33.75X6.67-44.78mm6.03-40.5X6.67-44.78mm
SZ050141210.4X217mm2.68-18X12.22-82.09mm4.02-27X8.89-59.7mm5.36-36X6.67-44.78mm6.7-45X5-33.58mm8.04-54X5-33.58mm
SZ190242110.5X177mm3.35-22.5X9.78-65.67mm5.03-33.75X7.11-47.76mm6.7-45X5.33-35.82mm8.38-56.25X4-26.87mm10.05-67.5X4-26.87mm
SZ050143110.7X120mm4.69-31.5X6.98-46.91mm7.03-47.25X5.08-34.12mm9.38-63X3.81-25.59mm11.72-78.75X2.86-19.19mm14.07-94.5X2.86-19.19mm
SZ050111311X100mm6.7-45X4.89-32.84mm10.05-67.5X3.56-23.88mm13.4-90X2.67-17.91mm16.75-112.5X2-13.43mm20.1-135X2-13.43mm
SZ050145111.5X47mm10.05-67.5X3.26-21.89mm15.08-101.25X2.37-15.92mm20.1-135X1.78-11.94mm25.13-168.75X1.33-8.96mm30.15-202.5X1.33-8.96mm
SZ050146112X26mm13.4-90X2.44-16.42mm20.1-135X1.78-11.94mm26.8-180X1.33-8.96mm33.5-225X1-6.72mm40.2-270X1-6.72mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /（Objective Optical Magnification*Body Magnification）
3. The Darker background items are Standard items, the white background items are optional items.



Video Microscope Optical Data Sheet
P/NObjective Coupler
SZ05016111  (0.35X)SZ07026131  (0.5X)SZ05016132  (0.5X)SZ05016151  (1X)SZ07026151  (1X)
MagnificationMagnificationMagnificationMagnificationMagnification
SZ050141110.3X0.07-0.47X0.1-0.68X0.1-0.68X0.2-1.35X0.2-1.35X
SZ050141210.4X0.09-0.63X0.13-0.9X0.13-0.9X0.27-1.8X0.27-1.8X
SZ190242110.5X0.12-0.79X0.17-1.12X0.17-1.12X0.34-2.25X0.34-2.25X
SZ050143110.7X0.16-1.1X0.23-1.58X0.23-1.58X0.47-3.15X0.47-3.15X
SZ050111311X0.23-1.58X0.34-2.25X0.34-2.25X0.67-4.5X0.67-4.5X
SZ050145111.5X0.35-2.36X0.5-3.38X0.5-3.38X1.01-6.75X1.01-6.75X
SZ050146112X0.47-3.15X0.67-4.5X0.67-4.5X1.34-9X1.34-9X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification



Camera Image Sensor Specifications
No.Camera Image Sensor SizeCamera image Sensor Diagonal
（mm）（inch）
11/4 in. 4mm0.157"
21/3 in. 6mm0.236"
31/2.8 in. 6.592mm0.260"
41/2.86 in. 6.592mm0.260"
51/2.7 in. 6.718mm0.264"
61/2.5 in. 7.182mm0.283"
71/2.3 in. 7.7mm0.303"
81/2.33 in. 7.7mm0.303"
91/2 in. 8mm0.315"
101/1.9 in. 8.933mm0.352"
111/1.8 in. 8.933mm0.352"
121/1.7 in. 9.5mm0.374"
132/3 in. 11mm0.433"
141/1.2 in. 12.778mm0.503"
151 in. 16mm0.629"
161/1.1 in. 17.475mm0.688"



Digital Magnification Data Sheet
Image Sensor SizeImage Sensor Diagonal sizeMonitor
Screen Size (24in)
Digital Zoom Function
1/3 in. 6mm101.6
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size



Microscope Optical and Digital Magnifications Data Sheet
ObjectiveCouplerCameraMonitorVideo Microscope Optical MagnificationsDigital Zoom FunctionTotal MagnificationField of View (mm)
PNMagnificationPNMagnification Image Sensor SizeImage Sensor Diagonal sizeScreen Size
SZ050141110.3XSZ050161110.35X1/3 in. 6mm24in0.07-0.47X101.67.11-47.75X12.77-85.71mm
SZ050141110.3XSZ070261310.5X1/3 in. 6mm24in0.1-0.68X101.610.16-69.09X8.82-60mm
SZ050141110.3XSZ050161320.5X1/3 in. 6mm24in0.1-0.68X101.610.16-69.09X8.82-60mm
SZ050141110.3XSZ050161511X1/3 in. 6mm24in0.2-1.35X101.620.32-137.16X4.44-30mm
SZ050141110.3XSZ070261511X1/3 in. 6mm24in0.2-1.35X101.620.32-137.16X4.44-30mm
SZ050141210.4XSZ050161110.35X1/3 in. 6mm24in0.09-0.63X101.69.14-64.01X9.52-66.67mm
SZ050141210.4XSZ070261310.5X1/3 in. 6mm24in0.13-0.9X101.613.21-91.44X6.67-46.15mm
SZ050141210.4XSZ050161320.5X1/3 in. 6mm24in0.13-0.9X101.613.21-91.44X6.67-46.15mm
SZ050141210.4XSZ050161511X1/3 in. 6mm24in0.27-1.8X101.627.43-182.88X3.33-22.22mm
SZ050141210.4XSZ070261511X1/3 in. 6mm24in0.27-1.8X101.627.43-182.88X3.33-22.22mm
SZ190242110.5XSZ050161110.35X1/3 in. 6mm24in0.12-0.79X101.612.19-80.26X7.59-50mm
SZ190242110.5XSZ070261310.5X1/3 in. 6mm24in0.17-1.12X101.617.27-113.79X5.36-35.29mm
SZ190242110.5XSZ050161320.5X1/3 in. 6mm24in0.17-1.12X101.617.27-113.79X5.36-35.29mm
SZ190242110.5XSZ050161511X1/3 in. 6mm24in0.34-2.25X101.634.54-228.6X2.67-17.65mm
SZ190242110.5XSZ070261511X1/3 in. 6mm24in0.34-2.25X101.634.54-228.6X2.67-17.65mm
SZ050143110.7XSZ050161110.35X1/3 in. 6mm24in0.16-1.1X101.616.26-111.76X5.45-37.5mm
SZ050143110.7XSZ070261310.5X1/3 in. 6mm24in0.23-1.58X101.623.37-160.53X3.8-26.09mm
SZ050143110.7XSZ050161320.5X1/3 in. 6mm24in0.23-1.58X101.623.37-160.53X3.8-26.09mm
SZ050143110.7XSZ050161511X1/3 in. 6mm24in0.47-3.15X101.647.75-320.04X1.9-12.77mm
SZ050143110.7XSZ070261511X1/3 in. 6mm24in0.47-3.15X101.647.75-320.04X1.9-12.77mm
SZ050111311XSZ050161110.35X1/3 in. 6mm24in0.23-1.58X101.623.37-160.53X3.8-26.09mm
SZ050111311XSZ070261310.5X1/3 in. 6mm24in0.34-2.25X101.634.54-228.6X2.67-17.65mm
SZ050111311XSZ050161320.5X1/3 in. 6mm24in0.34-2.25X101.634.54-228.6X2.67-17.65mm
SZ050111311XSZ050161511X1/3 in. 6mm24in0.67-4.5X101.668.07-457.2X1.33-8.96mm
SZ050111311XSZ070261511X1/3 in. 6mm24in0.67-4.5X101.668.07-457.2X1.33-8.96mm
SZ050145111.5XSZ050161110.35X1/3 in. 6mm24in0.35-2.36X101.635.56-239.78X2.54-17.14mm
SZ050145111.5XSZ070261310.5X1/3 in. 6mm24in0.5-3.38X101.650.8-343.41X1.78-12mm
SZ050145111.5XSZ050161320.5X1/3 in. 6mm24in0.5-3.38X101.650.8-343.41X1.78-12mm
SZ050145111.5XSZ050161511X1/3 in. 6mm24in1.01-6.75X101.6102.62-685.8X0.89-5.94mm
SZ050145111.5XSZ070261511X1/3 in. 6mm24in1.01-6.75X101.6102.62-685.8X0.89-5.94mm
SZ050146112XSZ050161110.35X1/3 in. 6mm24in0.47-3.15X101.647.75-320.04X1.9-12.77mm
SZ050146112XSZ070261310.5X1/3 in. 6mm24in0.67-4.5X101.668.07-457.2X1.33-8.96mm
SZ050146112XSZ050161320.5X1/3 in. 6mm24in0.67-4.5X101.668.07-457.2X1.33-8.96mm
SZ050146112XSZ050161511X1/3 in. 6mm24in1.34-9X101.6136.14-914.4X0.67-4.48mm
SZ050146112XSZ070261511X1/3 in. 6mm24in1.34-9X101.6136.14-914.4X0.67-4.48mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Related Products

Adding your products to cart

View or edit your shopping cart Continue Shopping
