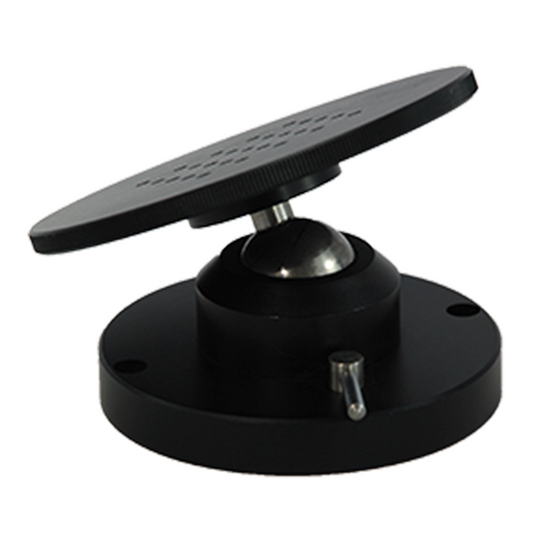

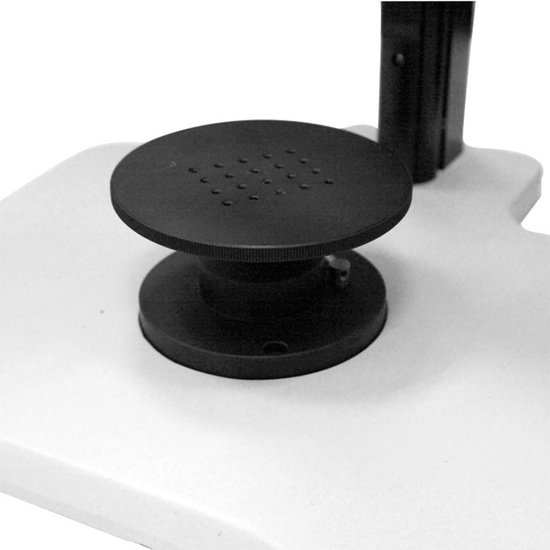

- This manual tilting microscope stage can be adjusted to keep specimen at level, when the microscope base is tilted, or to view specimen at an angle.

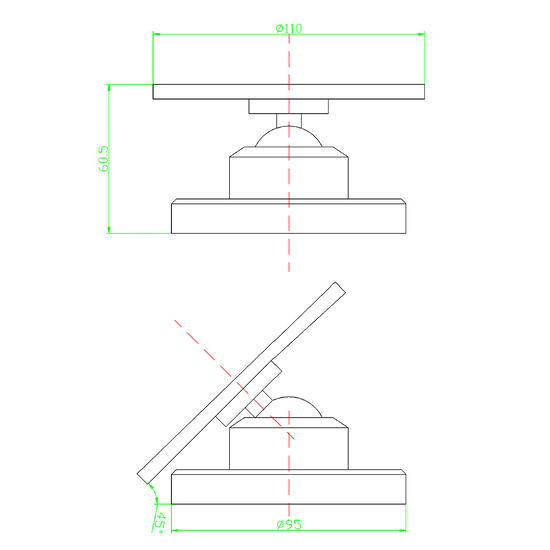

- The stage diameter measures 110mm (4-5/16 inch), with the bottom mounting diameter measuring 95mm (3-3/4 inch)
- Manual stage provides smooth and controlled movement when viewing specimens under a microscope, without needing to operate gears.
- The stage can be tilted up to 45 degrees, and rotated in 360 degrees.

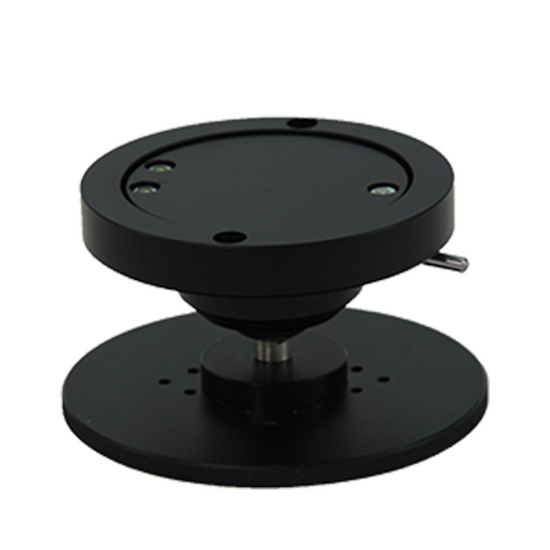

- The ball and socket joint provides smooth adjustments and the stage can be locked in place with the locking pin.
Quick Overview

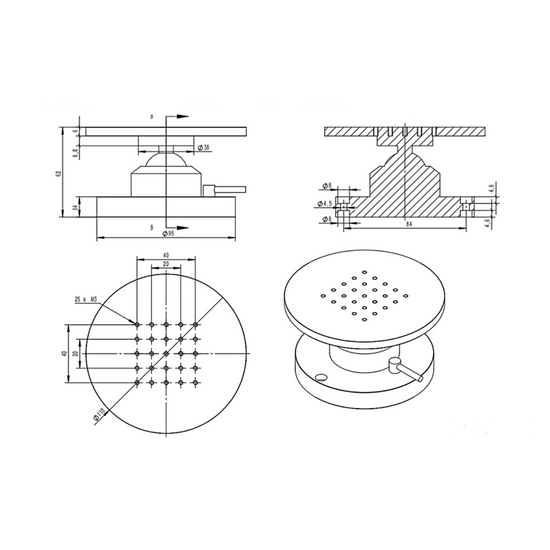

Mounting Holes Position: 10x10mm. M3. Tilt Stage Diameter: 110mm. 0-45° Inclined within the Range of 360°. Stage Height: 63mm.
SG02602211 Level Adjustable Stage
Tilt Stage
| Mounting Holes Position | 10x10mm |
| Mounting Hole Dimensions | M3 |
| Rotary Stage Lock | Lockable in Any Position |
| Tilt Stage Diameter | 110mm |
| Tilt Stage Bottom Mount Size | Dia. 95mm |
| Stage Inclination Range | 0-45° Inclined within the Range of 360° |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 0.65kg (1.43lbs) |
| Notes | Stage Height: 63mm |
Technical Info
Instructions
Microscope StageClose Λ
| Microscope stage is usually located under the objective lens of the microscope to place the object to be observed. Usually, it is equipped with mechanical motion devices, and is moved and positioned in XYZ three directions or rotates or tilts around the Z axis and other functions. Microscope stage usually has a function of moving in the XY horizontal direction, and is required to be perpendicular to the optical axis of the microscope Z direction in the XY horizontal direction. |
Tilt StageClose Λ
| The tilt stage is centered on the Z axis of the microscope optical axis, and the XY horizontal direction is used as the baseline. Tilt stage can be used for tilting motion in the front, back, left and right directions to observe the image features of different angles of some objects. |
PackagingClose Λ
| After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection. For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem. |
| Packing | |
| Packaging Type | Carton Packaging |
| Packaging Material | Corrugated Carton |
| Packaging Dimensions(1) | 15x14.5x10cm (5.906x5.709x3.937″) |
| Inner Packing Material | Plastic Bag |
| Ancillary Packaging Materials | Expanded Polystyrene |
| Gross Weight | 0.75kg (1.65lbs) |
| Minimum Packaging Quantity | 1pc |
| Transportation Carton | Carton Packaging |
| Transportation Carton Material | Corrugated Carton |
| Transportation Carton Dimensions(1) | 15x14.5x10cm (5.906x5.709x3.937″) |
| Total Gross Weight of Transportation(kilogram) | 0.75 |
| Total Gross Weight of Transportation(pound) | 1.65 |
  |
