16:9 1920x1080 DC 12V 11.6″ Color Monitor MO02213201

Specifications
Packing List
Technical Info

Quick Overview
Screen Size: 11.6in. 16:9. Monitor Input Signal Format: HDMI. Monitor Max. Resolution: 1920x1080. LCD Display. Input Voltage: AC 90-240V 50/60Hz. Output Voltage: DC 12V.

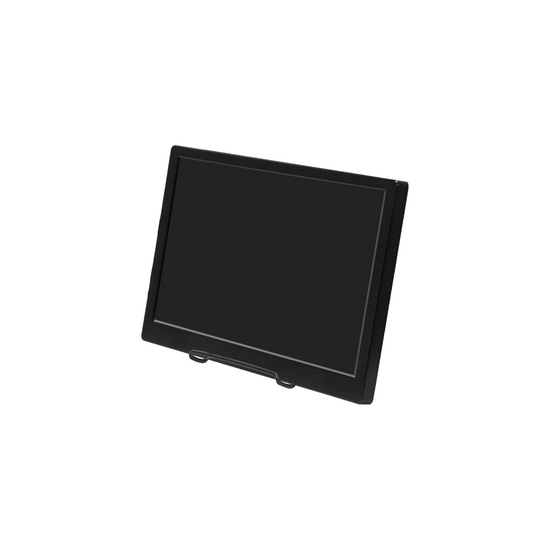

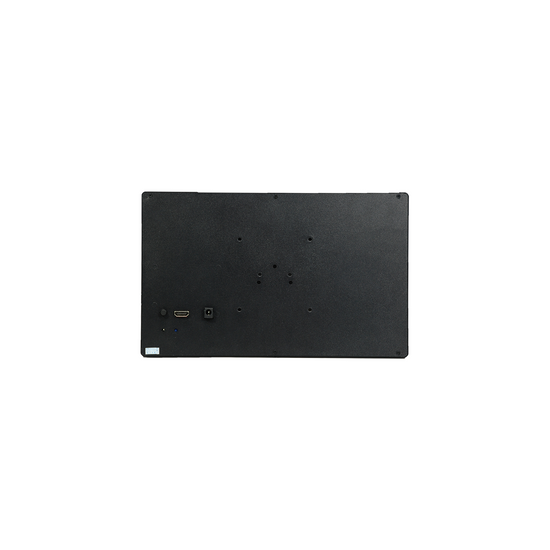

MO02213201 11.6 in. Color Monitor

TFT-LCD Monitor

Screen Size	11.6in
Screen Aspect Ratio	16:9
Monitor Input Signal Format	HDMI
Monitor Signal Format	PAL/NTSC/SECAM
Monitor Max. Resolution	1920x1080
Screen Active Area	255x145mm (10.039x5.709 in. )
Screen Contrast	700:1
Screen Brightness	350cd/m2
Response Time	6ms
Screen Viewing Angle	178°/178°
Screen Backlight	LCD Display
Monitor Operating Temperature	0℃~50℃
Monitor Housing Material	Metal
Monitor Housing Size	283x175x15mm
Monitor Housing Color	Black
Input Voltage	AC 90-240V 50/60Hz
Output Voltage	DC 12V
Net Weight	0.69kg (1.52lbs)

Packing
Packaging Type	Carton Packaging
Packaging Material	Corrugated Carton
Packaging Dimensions(1)	37x24x9.5cm (14.566x9.448x3.74″)
Inner Packing Material	Plastic Bag
Ancillary Packaging Materials	Styrofoam
Gross Weight	1.25kg (2.76lbs)
Minimum Packaging Quantity	1pc
Transportation Carton	Carton Packaging
Transportation Carton Material	Corrugated Carton
Transportation Carton Dimensions(1)	37x24x9.5cm (14.566x9.448x3.74″)
Total Gross Weight of Transportation(kilogram)	1.25
Total Gross Weight of Transportation(pound)	2.76

Technical Info

Instructions

PackagingClose Λ

After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection.
For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem.
