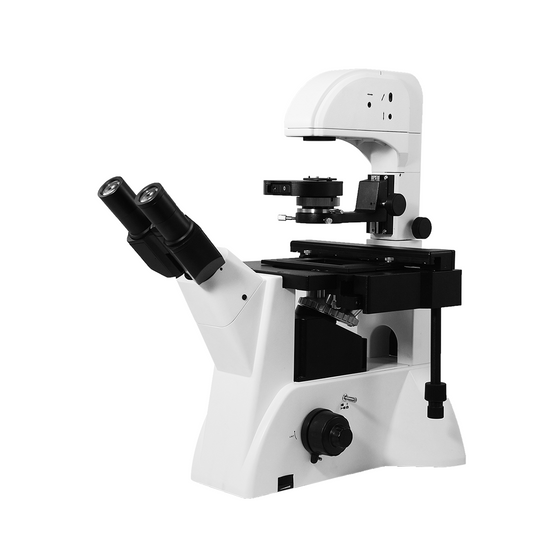

100X-400X Inverted Biological Compound Laboratory Microscope, Trinocular, Long Working Distance

Specifications
Packing List

Instruction Manual
BM1405 Trinocular Inverted Biological Microscope Instruction Manual-English.doc

Quick Overview
Infinite. Total Magnification: 100-400X. 10X High Eyepoint Eyepiece. 10X 20X 40X Infinity Long Working Distance Plan Achromatic Objective 10X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective. Standard Coupler: 0.5X. Inverted. Eye Tube Angle: 45°. Eyepiece Field of View: Dia. 22mm. Illumination Type: Halogen Transmitted Light. Input Voltage: AC 110V 60Hz. Moving range: 77mm (vertical) X134.5mm (horizontal).
Suggested Applications
Chemistry , Biotechnology, Pharmaceutics, Education & Student , Graduate & Research, Medical & Microbiology , Biochemistry, Cell Culture, Cytology, Gout & Rheumatology

BM14050303 Trinocular Inverted Biological Microscope

Optical System Specifications

Optical System	Infinite
Tube Lens Focal Length	200mm
System Optical Magnification	100-400X
Trinocular Optical Magnification	5-20X
Total Magnification	100-400X
Standard Eyepiece	10X High Eyepoint Eyepiece
Standard Objective	10X 20X 40X Infinity Long Working Distance Plan Achromatic Objective 10X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Standard Coupler	0.5X
System Field of View	Dia. 0.55-2.2mm
System Working Distance	4.3-8.0mm
Upright / Inverted	Inverted

Compound Binocular Head

Eye Tube Optical System	Infinite
Eye Tube Type	For Compound Microscope
Eye Tube Adjustment Mode	Siedentopf
Eye Tube Angle	45°
Erect/Inverted Image	Erect image
Eye Tube Rotatable	Fixed
Interpupillary Adjustment	53-75mm
Eye Tube Inner Diameter	Dia. 30mm
Eye Tube Diopter Adjustable	Not Adjustable
Eye Tube Size for Scope Body/Carrier	Dia. 42.3mm
Surface Treatment	Spray Paint
Material	Metal
Color	White
Net Weight	0.65kg (1.43lbs)
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope

Eyepiece

10X High Eyepoint Eyepiece (Pair Dia. 30/FN22)
Eyepiece Type	Standard Eyepiece
Eyepiece Optical Magnification	10X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 22mm
Eyepoint Type	High Eyepoint Eyepiece
Eyepiece Size for Reticle	Dia. 27mm
Surface Treatment	Black Oxide Finish
Material	Metal
Color	Black
Net Weight	0.16kg (0.35lbs)

Centering Telescope

Centering Eyepiece ( Dia. 30)
Centering Telescope Size for Eye Tube	Dia. 30mm
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.084kg (0.185lbs)
Applied Field	For BM1405 Series Microscope

Biological Objective

10X Infinity Long Working Distance Plan Achromatic Objective
Objective Optical System	Infinite
Objective Optical Magnification	10X
Objective Type	Plan Achromatic Objective
Objective Parfocal Distance	45mm
Objective for Focal Length	200mm
Objective Working Distance	4.3mm
Numerical Aperture (N.A.)	N.A. 0.25
Objective Cover Glass Thickness	1.2
Objective Immersion Media	Dry Objective
Objective Screw Thread	RMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter	Dia. 26mm
Surface Treatment	Polished Chrome
Material	Metal
Color	Silver
Net Weight	0.10kg (0.22lbs)
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope
20X Infinity Long Working Distance Plan Achromatic Objective
Objective Optical System	Infinite
Objective Optical Magnification	20X
Objective Type	Plan Achromatic Objective
Objective Parfocal Distance	45mm
Objective for Focal Length	200mm
Objective Working Distance	8.0mm
Numerical Aperture (N.A.)	N.A. 0.40
Objective Cover Glass Thickness	1.2
Objective Immersion Media	Dry Objective
Objective Screw Thread	RMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter	Dia. 26mm
Surface Treatment	Polished Chrome
Material	Metal
Color	Silver
Net Weight	0.09kg (0.20lbs)
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope
40X Infinity Long Working Distance Plan Achromatic Objective
Objective Optical System	Infinite
Objective Optical Magnification	40X
Objective Type	Plan Achromatic Objective
Objective Parfocal Distance	45mm
Objective for Focal Length	200mm
Objective Working Distance	3.5mm
Numerical Aperture (N.A.)	N.A. 0.60
Objective Cover Glass Thickness	1.2
Objective Immersion Media	Dry Objective
Objective Screw Thread	RMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter	Dia. 26mm
Surface Treatment	Polished Chrome
Material	Metal
Color	Silver
Net Weight	0.13kg (0.29lbs)
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope

Phase Contrast Objective

10X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Objective Optical System	Infinite
Objective Optical Magnification	10X
Objective Type	Plan Achromatic Objective
Objective Parfocal Distance	45mm
Objective for Focal Length	200mm
Objective Working Distance	4.3mm
Numerical Aperture (N.A.)	N.A. 0.25
Objective Cover Glass Thickness	1.2
Objective Immersion Media	Dry Objective
Objective Screw Thread	RMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter	Dia. 26mm
Surface Treatment	Polished Chrome
Material	Metal
Color	Silver
Net Weight	0.10kg (0.22lbs)
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope

Nosepiece

Inward/Outward Nosepiece	Nosepiece Inward
Number of Holes on Nosepiece	Quintuple (5) Holes
Nosepiece Switch Mode	Manual
Nosepiece Screw Thread for Objective	RMS Standard (4/5 in. x1/36 in. )

Microscope Stand

Stand Height	550mm
Base Type	Table Base
Focus Mode	Manual
Coarse/Fine Focus Type	Coaxial Coarse/Fine Focus
Focus Distance	10mm
Fine Focus Travel Distance	Same as Focus Distance
Coarse Focus Distance per Rotation	20mm
Fine Focus Distance per Rotation	0.125mm
Fine Focus Minimum Scale	2μm
Focus Limited	Limited
Focusing Knob Tightness Adjustable	Tightness Adjustable

Microscope Stage

Stage Platform Dimensions	250x160mm
Surface Treatment	Spray Paint
Material	Metal
Color	Black

Mechanical Stage

Surface Treatment	Spray Paint
Material	Metal
Color	Black
Net Weight	1.49kg (3.28lbs)
Applied To	For BM14050303 Trinocular Inverted Biological Microscope
Notes	Moving range: 77mm (vertical) X134.5mm (horizontal)

Multifunctional Slit Plate

Multifunctional Plate Size	29x77.5mm Dia. 68.5mm
Surface Treatment	Black Oxide Finish
Material	Metal
Color	Black
Net Weight	0.09kg (0.20lbs)
Dimensions	129x80x4mm (5.078x3.149x0.157 in. )
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope
Multifunctional Plate Size	34x77.5mm Dia. 68.5mm
Surface Treatment	Black Oxide Finish
Material	Metal
Color	Black
Net Weight	0.09kg (0.20lbs)
Dimensions	129x80x4mm (5.078x3.149x0.157 in. )
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope
Multifunctional Plate Size	57x83mm
Surface Treatment	Black Oxide Finish
Material	Metal
Color	Black
Net Weight	0.078kg (0.172lbs)
Dimensions	129x80x4mm (5.078x3.149x0.157 in. )
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope
Multifunctional Plate Size	Dia. 35.5mm
Material	Glass
Color	Clear
Net Weight	0.078kg (0.172lbs)
Dimensions	Dia. 118mm
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope

Microscope Illuminator

Illumination Type	Halogen Transmitted Light
Transmission Light	Kohler Illumination
Transmission Light Source Type	Halogen Light

Condenser

Condenser Type	Long Working Distance Condenser
Dry/Oil Type	Dry
Applicable Range of Objective	4-100X
Condenser Adjustable	Adjustable
Condenser Mounting Flange Size	Fastening Screw
Number of Filter Slots	1
Filter Switch Type	Turret Type
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.46kg (1.01lbs)
Applied Field	For BM14050303 Trinocular Inverted Biological Microscope

Color Filter

32mm Filter ((Matte Finish White)
Filter Color	Matte Finish White
Filter Size	Dia. 32mm
Filter Switch Type	Shake-up Type
Material	Glass
Net Weight	0.002kg (0.004lbs)
Applied Field	For BM1401, BM1403 Series Microscope
32mm Filter (Blue)
Filter Color	Blue
Filter Size	Dia. 32mm
Filter Switch Type	Shake-up Type
Material	Glass
Net Weight	0.002kg (0.004lbs)
Applied Field	For BM1401, BM1403 Series Microscope
32mm Filter (Green)
Filter Color	Green
Filter Size	Dia. 32mm
Filter Switch Type	Shake-up Type
Material	Glass
Net Weight	0.002kg (0.004lbs)
Applied Field	For BM1401, BM1403 Series Microscope

Halogen Bulb

6V 30W Halogen Bulb
Bulb Rated Power	30W
Bulb Rated Voltage	DC 6V
Bulb Shape	Oval
Bulb Mounting Mode	Bi-Pin
Light Bulb Pin Standard	G4 (4mm)
LCL	22mm
Material	Glass
Applied Field	For BM0303, BM0304, BM1301 Series Microscope

Power Supply

Input Voltage	AC 110V 60Hz
Power Cord Connector Type	USA 3 Pins
Power Cable Length	1.8m
Material	Plastic
Color	Black

Environment Requirement

Operating Temperature	5~35°C(41~95°F)
Operating Humidity	20%~80%

Other Parameters

Surface Treatment	Spray Paint
Material	Metal
Color	White
Net Weight	14.35kg (31.64lbs)

Series

BM1405

BM14050303

Technical Info

Instructions

Biological MicroscopeClose Λ

Biological microscopes are compound microscopes that are primarily used to observe and study organisms and microorganisms.
Biological microscopes were the earliest type of microscopes to be invented and the most widely used compound microscope today. Humans first used simple microscopes to observe tiny objects with a lens. Later, compound microscope were invented, which then used two lenses, i.e., one eyepiece and one objective lens for secondary imaging, to obtain a larger multiple of the image.
Conventionally, we usually refer to microscopes that include various accessories such as phase contrast, fluorescence, and polarized light etc. as compound microscopes, to distinguish them from stereo microscopes. (Although stereo microscopes also have an eyepiece and an objective lens, they have two light paths, which presents a three-dimensional image).

The most basic biological microscope consists of an eyepiece, an objective lens, a microscope stage, and light source. Both the eyepiece and the objective lens are convex lenses. The objective lens first enlarges the object into a real image. The eyepiece then magnifies the real image again into a virtual image, and finally becomes an inverted magnified virtual image on the retina of the human eye.
Biological microscopes are usually used to observe transparent or translucent objects, such as animal and plant cells, tissues, bacteria and microorganisms, as well as various kinds of tiny particles by means of sectioning. They are widely used in teaching, medicine, animal or plant research and industrial fields. Modern optical microscopes have made great progress in the wavelengths of various kinds of light; illumination forms, resolution, microscope functions, structure and comfort of image acquisition and analysis, and basically meet various research needs.
According to the user's needs and the complexity of the product, general biological microscopes are divided into student-level, experimental-grade, and research-level biological microscopes.

Basic Structure of Biological Microscope
A standard biological microscope usually has at least the following basic structures:
1. Objective lens - the closest imaging lens to the observed specimen. Objective lens determines the most important properties of the microscope imaging; such as wavelength and resolution of the object light. A microscope can have several objective lenses with different magnifications.
2. Eyepiece - the lens mounted on the upper end of the microscope tube; close to the observer's eyes. Generally, microscopes can have several eyepieces with different magnifications.
3. Light source - the light source of the biological microscope is under the microscope stage. According to different needs, a light source may include an illuminating light source (bulb), an aperture diaphragm, a condenser etc. The condenser is used to condense the illumination light and also increase the illumination brightness of the specimen. Aperture diaphragm, also called iris, is used to adjust the luminous flux of light. Under the aperture diaphragm, there is usually a circular filter holder, and the optical filters are placed according to needs. A simple microscope would not have an illuminating light source, it is illuminated by natural light, and a reflector is used to illuminate the object to be observed.
4. Microscope base - located at the bottom of the microscope; to support the lens body. Usually, the light source and the electrical appliances are installed inside the base and above the base.
5. Microscope body - used to connect and stand the various components of the entire microscope, and it is also the part the user holds when moving the microscope.
6. Microscope tube - an optical path channel connecting the eyepiece and the nosepiece of the microscope.
7. Nosepiece - the turntable under the microscope tube. The nosepiece usually has 3 to 4 circular holes for mounting objective lenses of different magnification; which can be rotated onto the optical axis of the microscope for use.
8. Microscope stage - where the specimen is placed for observation. There are usually two metal tablets on the mobile station, which are used to fix the specimen of the slide. There is also usually a pusher installed for moving the specimen. There are also microscope stages that can be moved directly in the XY direction.
9. Focus knob - used to adjust the distance between the objective lens and the microscope stage (sample) to bring the objective lens into focus to get a clear picture or image. The focus knob is usually mounted with the microscope stage to achieve the purpose of moving up and down focusing through the coarse focus knob and the fine focus knob.

Biological Microscope Quick Operation Steps
Step 1. Install and Prepare:
The configuration of the biological microscope is mostly standard. Carefully check the parts on the packing list and the information on the BoliOptics website to assemble and install the microscope.
The microscope should be placed on a solid and stable work surface with the tabletop kept steady, clean, and close to a power source. It is best to place the microscope out of direct sunlight. Generally speaking, the darker the environment, the better the image is observed by the microscope. Stray light greatly influences the imaging when the microscope is used for observation, as it can damage the specimen and can also accelerate the aging of the microscope surface and components.

Step 2. Turn on the light source:
Connect the power source, turn on the power switch, and adjust the light source to a position where the brightness is moderate.

Step 3. Place the specimen (also known as the type or sample):
Adjust the coarse focus knob first, and raise the objective lens to a higher position for easy placement of the specimen. Place the slide specimen of the observed object on the microscope stage. Note that the side of the cover slip is placed face up. Then use spring pressure to clamp on both ends of the slide to prevent the specimen from moving, and then adjust the knob through the XY direction of the microscope stage to move the general position of the part of the specimen to be observed to the center of the condenser.

Step 4. Adjust the parfocal of the high and low objective lens:
First observe with low power objectives. Adjust the low power lens (such as 4X, 10X) from the objective lens or nosepiece to the optical axis. Then, adjust the focus knob to find the outline of the image. Because the low power objectives have a large field of view, it is easier to find the image and determine the part to be observed. At the same time, adjust the XY microscope stage hand button to find the position of the specimen to be observed. It should be noted that the image of the biological microscope in the field of view is usually an inverted image, that is, the specimen should be moved in the opposite direction when moving the specimen.
Then, turn the nosepiece and gradually use the high power objective (such as 40X) to move to the observation position, and finally to the maximum magnification (such as 100X). During the process, continually adjust the fine adjustment knob to find the clearest image.
With regard to the observation and use of the oil lens, it is generally carried out after the above steps, and finally make further accurate observation.

When changing from low power objectives to high power objectives, the object image can generally be seen, but it may not be very clear. When rotating to the maximum power objectives (such as 100X), only the fine focus knob should be used rather than the coarse focus knob, so as to avoid damage to the lens or the slide specimen. When the image of the maximum power objective is clear using a microscope with normal function, ensure that the low power objectives and the high power objectives are parfocal, and the focus knob is no longer adjusted. During operation, it is possible that the power of some of the objectives in the middle may not be parfocal. If so, you only need to adjust the fine focus knob slightly.
Using a binocular microscope - If the observer's binocular vision is different, adjust it by the eyetube diopter of the eyepieces. Do not adjust the focus knob.

Step 5. Adjust the Light Source:
Adjust the light intensity of the light source. Adjust the size of the diaphragm, the height of the condenser, the angle of the reflector. These adjustments need to be coordinated and adjusted with the power of objective in order to get a clear image.
Under normal circumstances, the light of the stained specimen should be strong, and the light of the colorless or unstained specimen should be dim. When adjusting between high and low power objectives, the light for low power objectives for observation should be dim, and the light for high power objectives for observation should be strong.

Step 6. Replace the specimen:
After observing the specimen - if you need to switch to another slide, you should first change the objectives back to low power, remove the slide before replacing it with a new one, and then adjust the focus again for observation. Do not change the specimen under the high power objectives as the working distance is very small, so as to prevent damage to the objective lens.

Step 7. Arranging the microscope after use:
After observing with the microscope, the objective lenses should be moved away from the light-passing hole. Turn the nosepiece so that the V-shape between the lenses is slanted to both sides.
Remove the sample.
Check the light source of the microscope - adjust the aperture diaphragm to the maximum, adjust the brightness knob to the darkest, and then turn off the power button to prevent the instantaneous high current from burning out the light source when the power is turned on next time.
Lower the microscope stage and check if any parts are damaged, if the objective lens is stained with water or oil, or if the objective body has stains or hand prints. Wipe the microscope clean, and check that the accessories are complete, the sample specimens are complete, and anything else is complete.
After the final inspection is completed, cover the microscope with a dust cover or place the microscope into a box.

Biological microscopes are the basic structure of other forms of compound microscopes that are added with various kinds of accessories or attachments. Many principles and key points are fundamentally reflected in biological microscopes.

InfiniteClose Λ

Microscopes and components have two types of optical path design structures.
One type is finite optical structural design, in which light passing through the objective lens is directed at the intermediate image plane (located in the front focal plane of the eyepiece) and converges at that point. The finite structure is an integrated design, with a compact structure, and it is a kind of economical microscope.
Another type is infinite optical structural design, in which the light between the tube lens after passing the objective lens becomes "parallel light". Within this distance, various kinds of optical components necessary such as beam splitters or optical filters call be added, and at the same time, this kind of design has better imaging results. As the design is modular, it is also called modular microscope. The modular structure facilitates the addition of different imaging and lighting accessories in the middle of the system as required.
The main components of infinite and finite, especially objective lens, are usually not interchangeable for use, and even if they can be imaged, the image quality will also have some defects.

The separative two-objective lens structure of the dual-light path of stereo microscope (SZ/FS microscope) is also known as Greenough.
Parallel optical microscope uses a parallel structure (PZ microscope), which is different from the separative two-object lens structure, and because its objective lens is one and the same, it is therefore also known as the CMO common main objective.

Tube Lens Focal LengthClose Λ

The tube lens focal length is the focal length from the tube lens to the intermediate image plane of the design of infinite microscope, and its typical ranging is from 160 to 200 mm, depending on different manufacturers.

System Optical MagnificationClose Λ

The magnification of the objective lens refers to the lateral magnification, it is the ratio of the image to the real size after the original image is magnified by the instrument. This multiple refers to the length or width of the magnified object.
System optical magnification is the product of the eyepiece and the objective lens (objective lens zoom set) of the optical imaging part within the system.
Optical magnification = eyepiece multiple X objective lens/objective lens set

The maximum optical magnification of the microscope depends on the wavelength of the light to which the object is illuminated. The size of the object that can be observed must be greater than the wavelength of the light. Otherwise, the light cannot be reflected or transmitted, or recognized by the human eye. The shortest wavelength of ultraviolet light is 0.2 microns, so the resolution of the optical microscope in the visible range does not exceed 0.2 microns, or 200 nanometers. This size is converted to the magnification of the microscope, and it is the optical magnification of 2000X. Usually, the compound microscope can achieve 100X objective lens, the eyepiece is 20X, and the magnification can reach 2000X. If it is bigger, it will be called "invalid magnification", that is, the image is large, but the resolution is no longer increased, and no more details and information can be seen.

Trinocular Optical MagnificationClose Λ

When the instrument is conducting electronic image magnification and observation through a camera or the like, the optically magnified portion may not be the optical path that passes through the "eyepiece-objective lens" of the instrument, at this time, the calculation method of the magnification is related to the third-party photo eyepiece passed.
The trinocular optical magnification is equal to the multiplier product of objective lens (objective lens set) and the photo eyepiece

Trinocular optical magnification = objective lens X photo eyepiece

Total MagnificationClose Λ

Total magnification is the magnification of the observed object finally obtained by the instrument. This magnification is often the product of the optical magnification and the electronic magnification.
When it is only optically magnified, the total magnification will be the optical magnification.

Total magnification = optical magnification X electronic magnification
Total magnification = (objective X photo eyepiece) X (display size / camera sensor target )

System Field of ViewClose Λ

Field of View, is also called FOV.
The field of view, or FOV, refers to the size of the object plane (i.e., the plane of the point of the observed object perpendicular to the optical axis), or of its conjugate plane (i.e., object to primary image distance), represented by a line value.
System field of view is the size of the actual diameter of the image of the terminal display device of the instrument, such as the size of the image in the eyepiece or in the display.

Field of view number refers to the diameter of the field diaphragm of the objective lens, or the diameter of the image plane formed by the field diaphragm.
Field of view number of objective lens = field of view number of eyepiece / (objective magnification / mechanical tube length)

Large field of view makes it easy to observe the full view and more range of the observed object, but the field of view (FOV) is inversely proportional to the magnification and inversely proportional to the resolution, that is, the larger the field of view, the smaller the magnification, and also the lower the resolution of the object to be observed.
There are usually two ways to increase the field of view, one is to replace with an objective lens of a smaller multiple, or to replace with an eyepiece of a smaller multiple.

System Working DistanceClose Λ

Working distance, also referred to as WD, is usually the vertical distance from the foremost surface end of the objective lens of the microscope to the surface of the observed object.
When the working distance or WD is large, the space between the objective lens and the object to be observed is also large, which can facilitate operation and the use of corresponding lighting conditions.
In general, system working distance is the working distance of the objective lens. When some other equipment, such as a light source etc., is used below the objective lens, the working distance (i.e., space) will become smaller.

Working distance or WD is related to the design of the working distance of the objective lens. Generally speaking, the bigger the magnification of the objective lens, the smaller the working distance. Conversely, the smaller the magnification of the objective lens, the greater the working distance.
When it is necessary to change the working distance requirement, it can be realized by changing the magnification of the objective lens.

InvertedClose Λ

The main difference between an inverted microscope and an upright microscope is that the objective lens of the inverted microscope is located below the stage and is viewed or observed from the bottom up, while the objective lens of the upright microscope is located above the stage on which the sample is placed, and is viewed or observed from the top down.

The light source of inverted microscopes is generally divided into two forms, one is transmitted light source inverted microscope, and the other is reflection light source inverted microscope.
When observing the petri dish, the focal length of the objective lens of the inverted compound microscope should be longer than that of the upright microscope and be able to pass through the glass thickness of the vessel glass, and the oil lens cannot be used. The focal length of the condenser of the inverted microscope is longer than that of the ordinary upright microscope.
The inverted microscope has a longer and more complicated optical path design. It is suitable for observing adhering or suspending cells and substances in some culture dishes, culture flasks, hanging drop culture plates, and solution vessels in medicine and biology; in addition, when some of the observed objects are bulky and heavy, or the metal observation surface is not proper to be upright or fixed placed, inverted observation will be easy to use; the inverted microscope has lower requirements for sample preparation, no requirement for sample height, convenient and rapid for testing, and also facilitates processing and operation of the sample.

Oil lens are generally not recommended for inverted microscopes, because lens oil tends to flow down the objective lens, and is difficult to operate. Moreover, in an inverted microscope, the working distance of a high-magnification objective lens is generally also very short.

SiedentopfClose Λ

For siedentopf eyetube, when changing the interpupillary distance, it requires two hands pushing or pulling the two eyetubes left and right simultaneously, and the two eyepiece tubes or eyetubes will change their position at the same time.

Eye Tube AngleClose Λ

Usually the Microscope Eyetube is 45°, some is 30°, Tiltable Eyetube Angle design of a microscope is also known as the ergonomics microscope.
0-30° or 0-45° is an ergonomic design. When the mechanical tube length / focal length of the tube of the microscope is relatively big, the microscope is relatively high, and the user's height or the seat of the work desk is not suitable, long-term use of microscope may cause sitting discomfort.
Eyepiece tube with variable angle can freely adjust the angle without lowering the head. Especially when it is close to 0 degree and the human eye is close to horizontal viewing, long-time or long-term use can avoid fatigue damage to the cervical vertebra.

Erect/Inverted ImageClose Λ

After imaging through a set of objective lenses, the object observed and the image seen by the human eye is inverted. When the observed object is manipulated, move the specimen or object, the image will move in the opposite direction in the field of view. Most of the biological microscopes are reversed-phase designs.
When needing to operate works with accurate direction, it is necessary to design it into a forward microscope. Generally stereo microscopes and metallurgical microscopes are all of erect image design.
When observing through the camera and display, the erect and inverted image can be changed by the orientation of the camera.

Interpupillary AdjustmentClose Λ

The distance between the two pupils of the human eye is different. When the image of exit pupil of the two eyepieces of the microscope are not aligned with the entry pupil of the eye, the two eyes will see different images, which can cause discomfort.
Adjust the distance between the two eyepieces, to accommodate or adapt to the pupil distance of the observer's eyes. The adjustment range is generally between 55-75mm.

Eye Tube Diopter AdjustableClose Λ

For most people, their two eyes, the left and the right, have different vision; for the eyepiece tube, the eyepoint height of the eyepiece can be adjusted to compensate for the difference in vision between the two eyes, so that the imaging in the two eyes is clear and consistent.
The range of adjustment of the eyepiece tube is generally diopter plus or minus 5 degrees, and the maximum differential value between the two eyepieces can reach 10 degrees.

Monocular adjustable and binocular adjustable: some microscopes have one eyepiece tube adjustable, and some have two eyepiece tubes adjustable. First, adjust one eyepiece tube to the 0 degree position, adjust the microscope focusing knob, and find the clear image of this eyepiece (when the monocular adjustable is used, first adjust the focusing knob to make this eyepiece image clear), then adjust the image of another eyepiece tube (do not adjust the focusing knob again at this time), repeatedly adjust to find the clear position, then the two images are clear at the same time. For this particular user, do not adjust this device anymore in the future.
As some microscopes do not have the vision adjustment mechanism for the eyepiece tube, the vision of the two eyes are adjusted through the eyepiece adjustable.

Eyepiece Optical MagnificationClose Λ

Eyepiece optical magnification is the visual magnification of the virtual image after initial imaging through the eyepiece. When the human eye observes through the eyepiece, the ratio of the tangent of the angle of view of the image and the tangent of the angle of view of the human eye when viewing or observing the object directly at the reference viewing distance is usually calculated according to 250 mm/focal length of eyepiece.
The standard configuration of a general microscope is a 10X eyepiece.
Usually, the magnification of the eyepiece of compound microscope is 5X, 8X, 10X, 12.5X, 16X, 20X.
As stereo microscope has a low total magnification, its eyepiece magnification generally does not use 5X, but can achieve 25X, 30X and other much bigger magnification.

Eyepiece Field of ViewClose Λ

The eyepiece field of view is the diameter of the field diaphragm of the eyepiece, or the diameter of the image plane of the field diaphragm imaged by the field diaphragm.
The diameter of a large field of view can increase the viewing range, and see more detail in the field of view. However, if the field of view is too large, the spherical aberration and distortion around the eyepiece will increase, and the stray light around the field of view will affect the imaging effect.

Eyepoint TypeClose Λ

Eye point refers to the axial distance between the upper end of the metal frame of the eyepiece and the exit of pupil.
The exit of pupil distance of high eyepoint eyepiece is farther than that of the eye lens of the ordinary eyepiece. When this distance is greater than or equal to 18mm, it is a high eyepoint eyepiece. When observing, one does not need to be too close to the eyepiece lens, making it comfort to observe, and it can also be viewed with glasses. Generally, there is a glasses logo on the eyepiece, indicating that it is a high eyepoint eyepiece.

Centering TelescopeClose Λ

Also known as the centering eyepiece, or the cross reticle eyepiece.
It is an eyepiece with a cross reticle, usually 10X. The cross reticle is calibrated and the cross is at the geometric center of the imaging surface of the eyepiece.
The centering eyepiece is primarily used to adjust and verify the center of the optical axis of the microscope system, such as the centering action of the rotating platform for a polarizing microscope.
The centering eyepiece can also be used to detect whether the optical axis of the microscope is at the center position, and whether the two optical paths on the left and right of the stereo microscope have double image, and so on.

Objective Optical MagnificationClose Λ

The finite objective is the lateral magnification of the primary image formed by the objective at a prescribed distance.

Infinite objective is the lateral magnification of the real image produced by the combination of the objective and the tube lens.
Infinite objective magnification = tube lens focal length (mm) / objective focal length (mm)

Lateral magnification of the image, that is, the ratio of the size of the image to the size of the object.
The larger the magnification of the objective, the higher the resolution, the smaller the corresponding field of view, and the shorter the working distance.

Objective TypeClose Λ

In the case of polychromatic light imaging, the aberration caused by the light of different wavelengths becomes chromatic aberration. Achromatic aberration is to correct the axial chromatic aberration to the two line spectra (C line, F line); apochromatic aberration is to correct the three line spectra (C line, D line, F line).
The objective is designed according to the achromaticity and the flatness of the field of view. It can be divided into the following categories.

Achromatic objective: achromatic objective has corrected the chromatic aberration, spherical aberration, and comatic aberration. The chromatic portion of the achromatic objective has corrected only red and green, so when using achromatic objective, yellow-green filters are often used to reduce aberrations. The aberration of the achromatic objective in the center of the field of view is basically corrected, and as its structure is simple, the cost is low, it is commonly used in a microscope.

Semi-plan achromatic objective: in addition to meeting the requirements of achromatic objective, the curvature of field and astigmatism of the objective should also be properly corrected.
Plan achromatic objective: in addition to meeting the requirements of achromatic objectives, the curvature of field and astigmatism of the objective should also be well corrected. The plan objective provides a very good correction of the image plane curvature in the field of view of the objective, making the entire field of view smooth and easy to observe, especially in measurement it has achieved a more accurate effect.

Plan semi-apochromatic objective: in addition to meeting the requirements of plan achromatic objective, it is necessary to well correct the secondary spectrum of the objective (the axial chromatic aberration of the C line and the F line).
Plan apochromatic objective: in addition to meeting the requirements of plan achromatic objective, it is necessary to very well correct the tertiary spectrum of the objective (the axial chromatic aberration of the C line, the D line and the F line) and spherochromatic aberration. The apochromatic aberration has corrected the chromatic aberration in the range of red, green and purple (basically the entire visible light), and there is basically no limitation on the imaging effect of the light source. Generally, the apochromatic aberration is used in a high magnification objective.

Objective Parfocal DistanceClose Λ

Objective parfocal distance refers to the imaging distance between the objective shoulder and the uncovered object surface (referred to as the “object distance). It conforms to the microscope design, usually 45mm.
The objective of different magnifications of the compound microscope has different lengths; when the distance between the objective shoulder and the object distance is the same, the focal length may not be adjusted when converting to objectives of different magnifications.

Objective for Focal LengthClose Λ

Objective for focal length is a design parameter of the tube focal length of the microscope that the objective is suitable for.

Objective Working DistanceClose Λ

The objective working distance is the vertical distance from the foremost surface end of the objective of the microscope to the object surface to be observed.
Generally, the greater the magnification, the higher the resolution of the objective, and the smaller the working distance, the smaller the field of view. Conversely, the smaller the magnification, the lower the resolution of the objective, and the greater the working distance, and greater the field of view.
High-magnification objectives (such as 80X and 100X objectives) have a very short working distance. Be very careful when focusing for observation. Generally, it is after the objective is in position, the axial limit protection is locked, then the objective is moved away from the direction of the observed object.
The relatively greater working distance leaves a relatively large space between the objective and the object to be observed. It is suitable for under microscope operation, and it is also easier to use more illumination methods. The defect is that it may reduce the numerical aperture of the objective, thereby reducing the resolution.

Numerical Aperture (N.A.)Close Λ

Numerical aperture, N.A. for short, is the product of the sinusoidal function value of the opening or solid angle of the beam reflected or refracted from the object into the mouth of the objective and the refractive index of the medium between the front lens of the objective and the object.
Simply speaking, it is the magnitude of the luminous flux that can be brought in to the mouth of the objective adapter, the closer the objective to the specimen for observation, the greater the solid angle of the beam entering the mouth of the objective adapter, the greater the N.A. value, and the higher the resolution of the objective.
When the mouth of the objective adapter is unchanged and the working distance between the objective and the specimen is constant, the refractive index of the medium will be of certain meaning. For example, the refractive index of air is 1, water is 1.33, and cedar oil is 1.515, therefore, when using an aqueous medium or cedar oil, a greater N.A. value can be obtained, thereby improving the resolution of the objective.

Formula is：
N.A. = refractive index of the medium X sin solid angle of the beam of the object entering the front lens frame of the objective/ 2

Numerical aperture of the objective. Usually, there is a calculation method for the magnification of the microscope. That is, the magnification of the microscope cannot exceed 1000X of the objective. For example, the numerical aperture of a 100X objective is 1.25, when using a 10X eyepiece, the total magnification is 1000X, far below 1.25 X 1000 = 1250X, then the image seen in the eyepiece is relatively clear; if a 20X eyepiece is used, the total magnification will reach 2000X, much higher than 1250X, then eventhoughthe image actually seen by the 20X eyepiece is relatively large, the effect will be relatively poor.

Objective Cover Glass ThicknessClose Λ

The thickness of the cover glass affects the parfocal distance of the objective. Usually, in the design of the focal length of the objective,the thickness of the cover glass should be considered, and the standard is 0.17mm.

Objective Immersion MediaClose Λ

The use of different media between the objective and the object to be observed is to change and improve the resolution. For example, the refractive index of air is 1, water is 1.33, and cedar oil is 1.515. Therefore, when using an aqueous medium or cedar oil, a greater N.A. value can be obtained, thereby increasing the resolution of the objective.
Air medium is called dry objective, where oil is used as medium iscalled oil immersion objective, and water medium is called water immersion objective.
However, because of the working distance of the objective, when the working distance of the objective is too long, the use of liquid medium will be relatively more difficult, and it is generally used only on high magnification objective having a shorter working distance, such as objectives of 60X, 80X and 100X.

When using oil immersion objective, first add a drop of cedar oil (objective oil) on the cover glass, then adjust the focus (fine adjustment) knob, and carefully observe it from under the side of the objective of the microscope, until the oil immersion objective is immersed in the cedar oil and close to the cover glass of the specimen, then use the eyepiece to observe, and use the fine focus knob to lift the tube until the clear imageof the specimen is clearly seen.
The cedar oil should be added in an appropriate amount. After the oil immersion objective is used, it is necessary to use a piece of lens wiping tissue to dip xylene to wipe off the cedar oil, and then wipe dry the lens thoroughly with a lens wiping tissue.

Objective Screw ThreadClose Λ

For microscopes of different manufacturers and different models, the thread size of their objectives may also be different.
In general, the objective threads are available in two standard sizes, allowing similar objectives between different manufacturers to be used interchangeably.
One is the British system: RMS type objective thread: 4/5in X 1/36in,
One is metric: M25 X 0.75mm thread.

Coaxial Coarse/Fine FocusClose Λ

Focus mechanism, the coarse / fine focus knobs are in a coaxial center position, they are connected together by a gear reduction mechanism, which can be coarse/ fine focus adjusted at any time during the entire stroke.
Generally, the coarse focus diameter is relatively big, which is inside close to the body of the microscope, and the fine focus diameter is relatively small, which is outside of the body of the microscope. Coarse focus adjustment is used to quickly move to find the image, and the fine focus adjustment is used to finely adjust the clarity of the image. Generally, the minimum read value of the fine focus adjustment can be accurate to 1 micron, and single circle can reach a stroke of 0.1 mm. Mechanical fine focus plays a very important role in the accuracy of the microscope resolution. If the fine focus accuracy is not enough, or cannot be stabilized at the sharpest focusing position, the image will be out of focus and become blurred.
The tightness of coarse focus is generally adjustable. Generally, on one side of the knob (usually on the right side), there is a textured knob on the inside of the coarse knob, which is tightened if rotated clockwise; and loosened if rotated counterclockwise.

In the process of focusing, direct focusing should not be on the objective of high magnification; instead, find the object of low magnification first, and gradually adjust to high magnification. Usually, the coarse focus knob is rotated first, and when the objective lens is gradually lowered or the platform is gradually rising, find the object, and then adjust with the fine focus, until the object image in the field of view is clear. Generally, when changing from low magnification to high magnification objective, one only need to slightly adjust the fine focus knob to make the object image clear. During the process, the distance between the objective and the specimen should be observed from the side, to understand the critical value of the object distance between the lens and the specimen.
When using a high magnification objective, since the distance between the objective and the specimen is very close, after the image is found, the coarse focus knob cannot generally be used, and the fine focus knob can only be used to avoid excessive distance of movement, damaging the objective and the slide or specimen.

By using the characteristics of the fine focus, the height or thickness of the observed object can be roughly measured under the microscope, such as measuring the thickness of the cell or tissue, the thickness of the cover glass, and the thickness of small objects that cannot be measured by various conventional measuring instruments.
Method of measurement: place the object to be measured at the center of the field of view of the stage. After the image is clearly focused, try to use the highest magnification objective as much as possible, and align the adapter of the top feature point of the object to be measured. After adjusting clear, record the position of scale of the fine focus knob. Then, move the objective down to the adapter of the lowest feature point of the object to be measured, and record the position of scale of the fine focus knob. Then, according to the above fine focus, record the number of rounds of movement, and based on the parameters of conversion of each round into stroke (see the microscope fine focus knob parameters), the number of rounds is converted into the total stroke, which is the height of the object to be measured. If it is repeated a few times for average, a more accurate measurement can be obtained.

Focus LimitedClose Λ

Mostly, at the junction of the compound microscope platform and the body, there is a longitudinal limit mechanism. When the limit mechanism is locked, the platform is prevented from moving up and colliding with the microscope objective, thereby damaging the specimen or destroying the lens.
On its first use, use one specimen, applying 100X or the highest magnification lens, carefully find the clearest image, then lock the axial limit mechanism down, the focus mechanism will remember this position. When the focus is adjusted again to reach this position in the future, it will not go up again, and the platform or specimen will not touch the lens.

Focusing Knob Tightness AdjustableClose Λ

Different microscope bodies, different human operations, and different requirements for observation and operation, all require adjustment of the pre-tightening force of the stand that support microscope body.
Facing the stand just right, use both hands to reverse the force to adjust the tightness. (face the knob of one side just right, clockwise is to tighten, counterclockwise is to loosen)
In general, after long-time use, the knob will be loose, and adjustment is necessary.

Mechanical StageClose Λ

Mechanical stage is a mechanical device mounted on the microscope stage for fixing and moving the slide.

Multifunctional Slit PlateClose Λ

Multifunctional slit plate is a device that carries the specimen of the object. Multifunctional slit plate is generally made of metal, and has various shapes according to different requirements, which is convenient for observing different requirements of the object.

Kohler IlluminationClose Λ

Kohler illumination: is a secondary imaging illumination that overcomes the shortcoming of direct illumination of critical illumination. After the filament of the light source passes through the condenser and the variable field diaphragm, the filament image falls for the first time in the condenser aperture diaphragm, the condenser forms a second image at the back focus plane position there, so that there is no filament image at the plane of the object to be observed, and the illumination becomes uniform.
During observation, by changing the size of the condenser aperture diaphragm, the light source fills in the entrance pupil of the objective lens, and the numerical aperture of the condenser is matched with the numerical aperture of the objective lens. At the same time, the condenser images the field diaphragm at the plane of the observed object, and the illumination range is controlled by the size of the field diaphragm. Since the thermal focus of Kohler illumination is not at the plane of the object to be observed, the object to be observed will not be damaged even if it is irradiated for a long time.

Long Working Distance CondenserClose Λ

Long working distance condenser is a condenser with relatively long focus. Long working distance condenser is used to observe objects that are relatively far away from the stage, it is especially used on inverted microscopes.

Color FilterClose Λ

Color filter is a type of filter that allows light of only a certain wavelength and color range to pass, while light of other wavelengths is intercepted. Color filter is made of colored glass, and it has various bandwidths and color for selection.
Both artificial light source (lamp light) and natural light (daylight) are all full-color light, including seven colors, namely, red, orange, yellow, green, blue, indigo and purple. As the microscope illumination, different types of light sources have different color temperatures and brightness. In order to adjust the color of the light source, it is necessary to install a filtering device at the light exit port of the light source, so that the spectrum of a certain wavelength band is transmitted or blocked. Color filter generally can only be added to the illumination path to change the color of the illumination source and improve the contrast of the image, but generally it is not installed in the imaging path system, which affect the image quality.

There are many types of color filters. In addition to the color requirements, color filters of different colors also contribute to the imaging quality. Color filters using the same color will brighten the color of the image.

Of the traditional daylight filter, there are relatively more red and yellow light in the lamp light, the resolution is not high, and the observation is not comfortable. The use of daylight filter can absorb the color between yellow to red spectrum emitted by the light source, thus the color temperature becomes much closer to daylight, making microscope observation more comfortable, and it is one of the most used microscope color filters.
Daylight blue filter can get close to the daylight spectrum, obtain more short-wave illumination, and improve the resolution of the objective lens. For example, using blue color filter (λ=0.44 microns) can improve the resolution by 25% than green color filter (λ=0.55 microns). Therefore, blue color filter can improve the resolution, and improve the image effect observed under the microscope. However, the human eye is sensitive to green light with a wavelength of about 0.55 microns. When using blue color filters for photomicrography, it is often not easy to focus on the projection screen.
Yellow and green filters: both yellow and green filters can increase the contrast (i.e. contrast ratio) of details of the specimen. As far as the achromatic objective lens is concerned, the aberrations in the yellow and green bands are better corrected. Therefore, when yellow and green color filters are used, only yellow and green light passes, and the aberration will be reduced, thereby improving the imaging quality. For semi-apochromatic and apochromat objectives, the focus of visible light is concentrated. In principle, any color filter can be used, but if yellow and green filters are used, the color will make the human eye feel comfortable and soft.
Red filter. Red has the longest wavelength and the lowest resolution in visible light. However, red light image can filter and eliminate the variegated background in the image. Therefore, so it has a very good effect for some applications that do not require color features for identification, and the edges and contours of the image are also the clearest, which is more accurate for measurement.
Medium gray filters, also known as neural density filters, or ND for short, can uniformly reduce visible light. It is suitable for photomicrography and connection to computer monitors for observation. ND can be used for exposure control and good light absorption, and reduce the light intensity while not changing the color temperature of the microscope light source.

PackagingClose Λ

After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection.
For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem.

Optical Data

Microscope Optical Data Sheet
P/N	Objective	Objective Working Distance	Eyepiece
			BM14052211 (10X Dia. 22mm)
			Magnification	Field of View(mm)
BM14053331	10X	4.3mm	100X	2.2mm
PH14053331	10X	4.3mm	100X	2.2mm
BM14053431	20X	8.0mm	200X	1.1mm
BM14053531	40X	3.5mm	400X	0.55mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /（Objective Optical Magnification*Body Magnification）
3. The Darker background items are Standard items, the white background items are optional items.

Contains

Parts Including

Picture	P/N	Product Name
	BU99031103	6V 30W Halogen Bulb
	BM14052211	10X High Eyepoint Eyepiece (Pair Φ30/FN22)
	PH14056191	Centering Eyepiece (Φ30)
	BM14053331	10X Infinity Long Working Distance Plan Achromatic Objective
	BM14053431	20X Infinity Long Working Distance Plan Achromatic Objective
	BM14053531	40X Infinity Long Working Distance Plan Achromatic Objective
	PH14053331	10X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
	BM14015511	32mm Filter ((Matte Finish White)
	BM14015521	32mm Filter (Blue)
	BM14015551	32mm Filter (Green)
	BM14055251	Multifunctional Slit Plate
	BM14055252	Multifunctional Slit Plate
	BM14055253	Multifunctional Slit Plate
	BM14055254	Multifunctional Slit Plate
	PH14055311	Condenser

	BM14051221	Compound Binocular Head
	BM14055241	Mechanical Stage

Desiccant Bag

1 Bag

Dust Cover

1pc

Product Instructions/Operation Manual

1pc

Packing
Packaging Type	Carton Packaging
Packaging Material	Cardboard Box
Packaging Dimensions(1)	50x65x36cm (19.685x25.590x14.173″)
Inner Packing Material	Plastic Bag
Ancillary Packaging Materials	Styrofoam
Gross Weight	18.38kg (40.52lbs)
Minimum Packaging Quantity	1pc
Transportation Carton	Carton Packaging
Transportation Carton Material	Cardboard Box
Transportation Carton Dimensions(1)	50x65x36cm (19.685x25.590x14.173″)
Total Gross Weight of Transportation(kilogram)	18.38
Total Gross Weight of Transportation(pound)	40.52
Quantity of One Transportation Carton	1pc
