Product Description
Technical Specifications

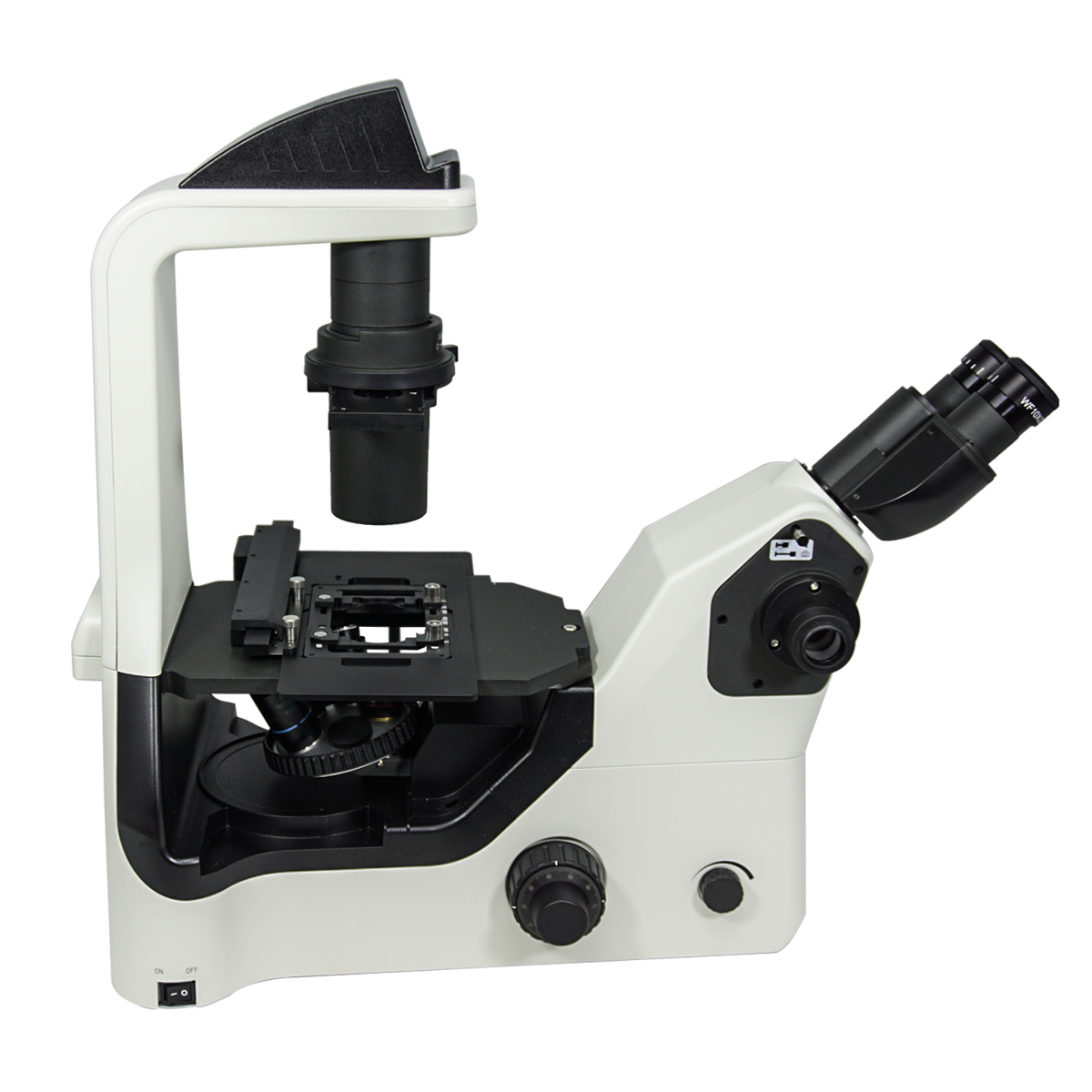

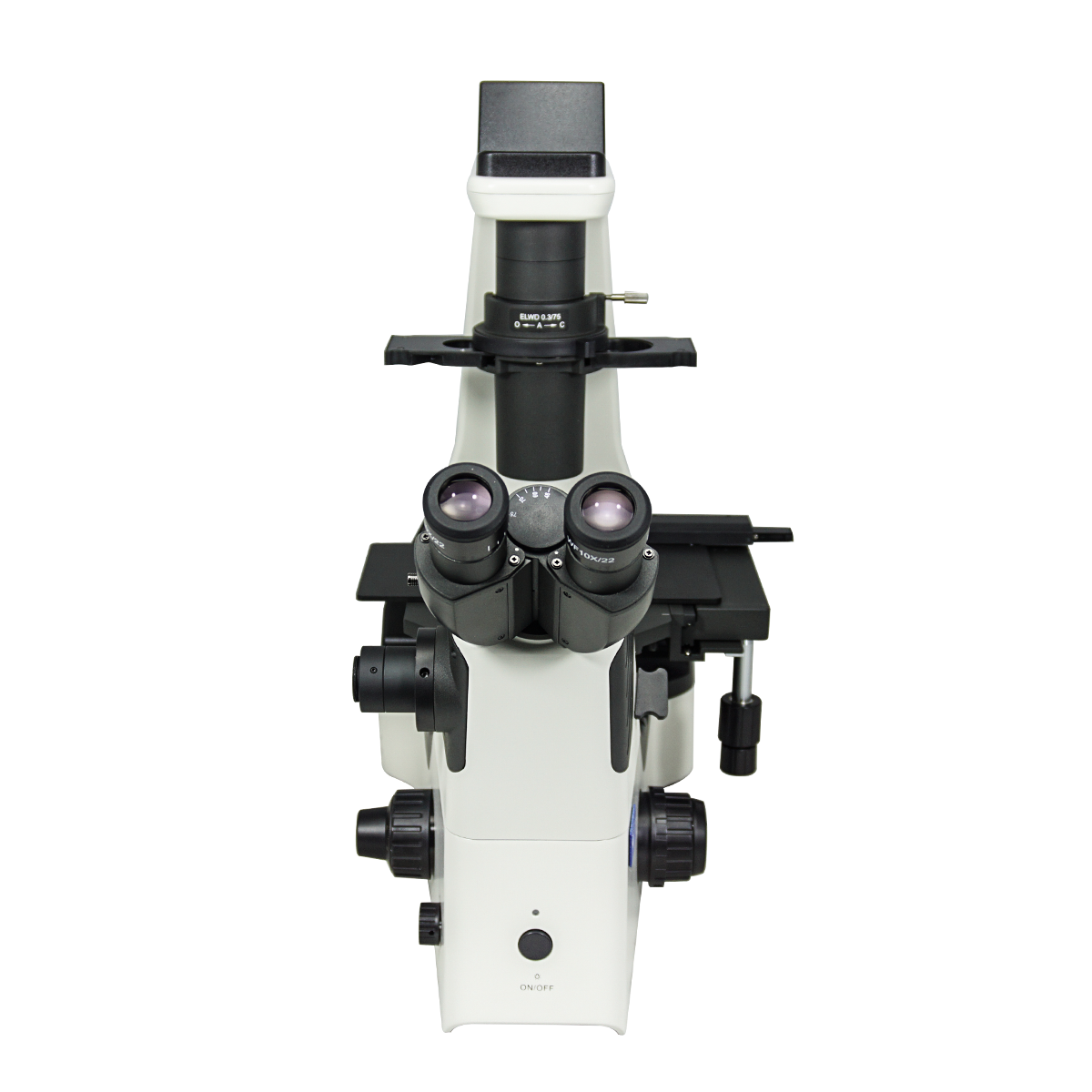

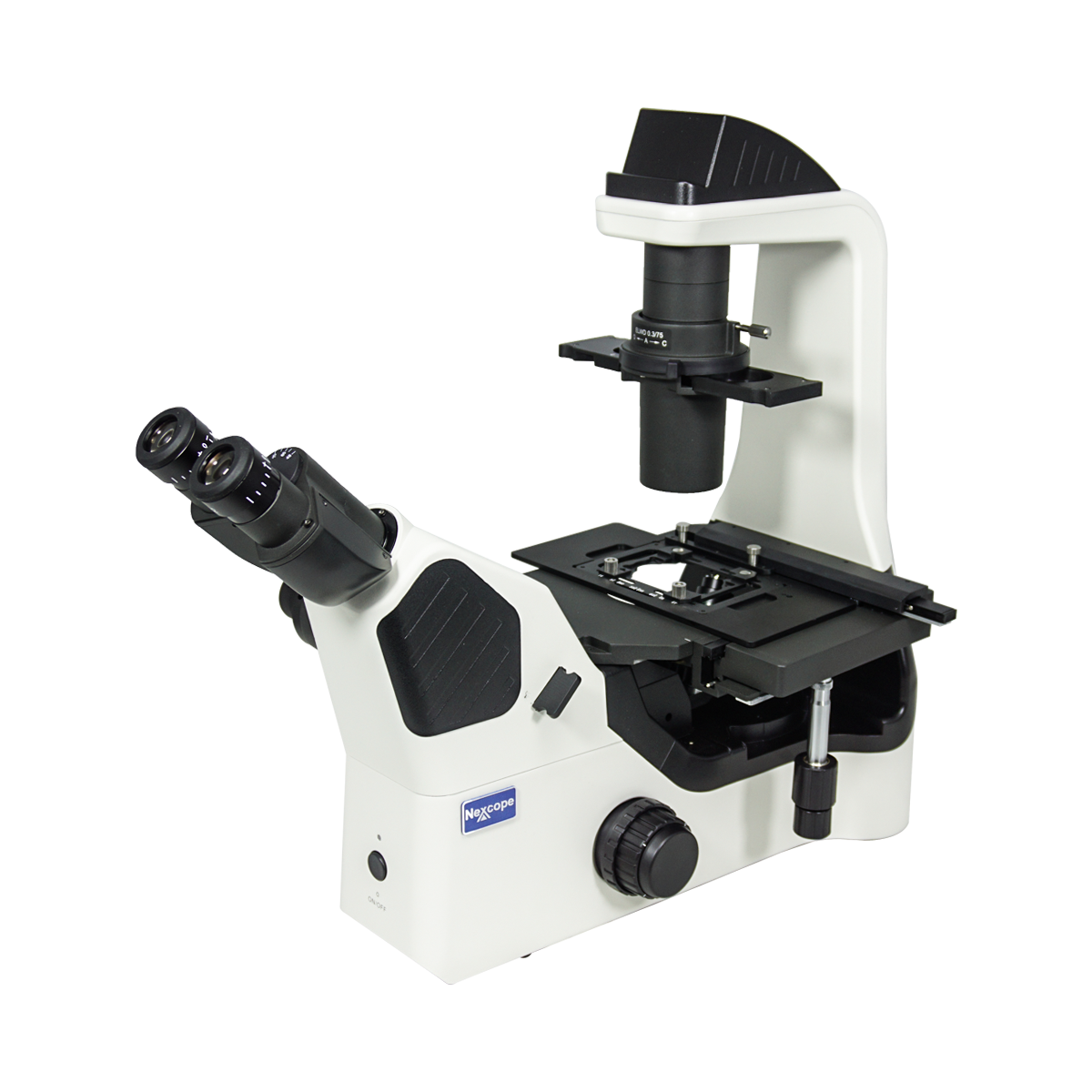

Nexcope-NIB610-Trinocular Trinocular Inverted Phase Contrast Microscope
Optical System Specifications
Optical SystemInfinite
System Optical Magnification40-400X
Total Magnification40-400X
Standard Eyepiece10X Adjustable Eyepiece
Standard Objective4X Infinity Long Working Distance Plan Achromatic Objective; 10X 20X 40X Infinity Long Working Distance Plan Phase Contrast Objective
System Field of View Dia. 0.55-5.5mm
System Working Distance2.2-30mm
Upright / InvertedInverted
Compound Trinocular Head
Eye Tube Optical SystemInfinite
Eye Tube TypeFor Compound Microscope
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle45°
Erect/Inverted ImageInverted Image
Eye Tube RotatableFixed
Interpupillary Adjustment48-75mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Fixing ModeElastic Tube locking

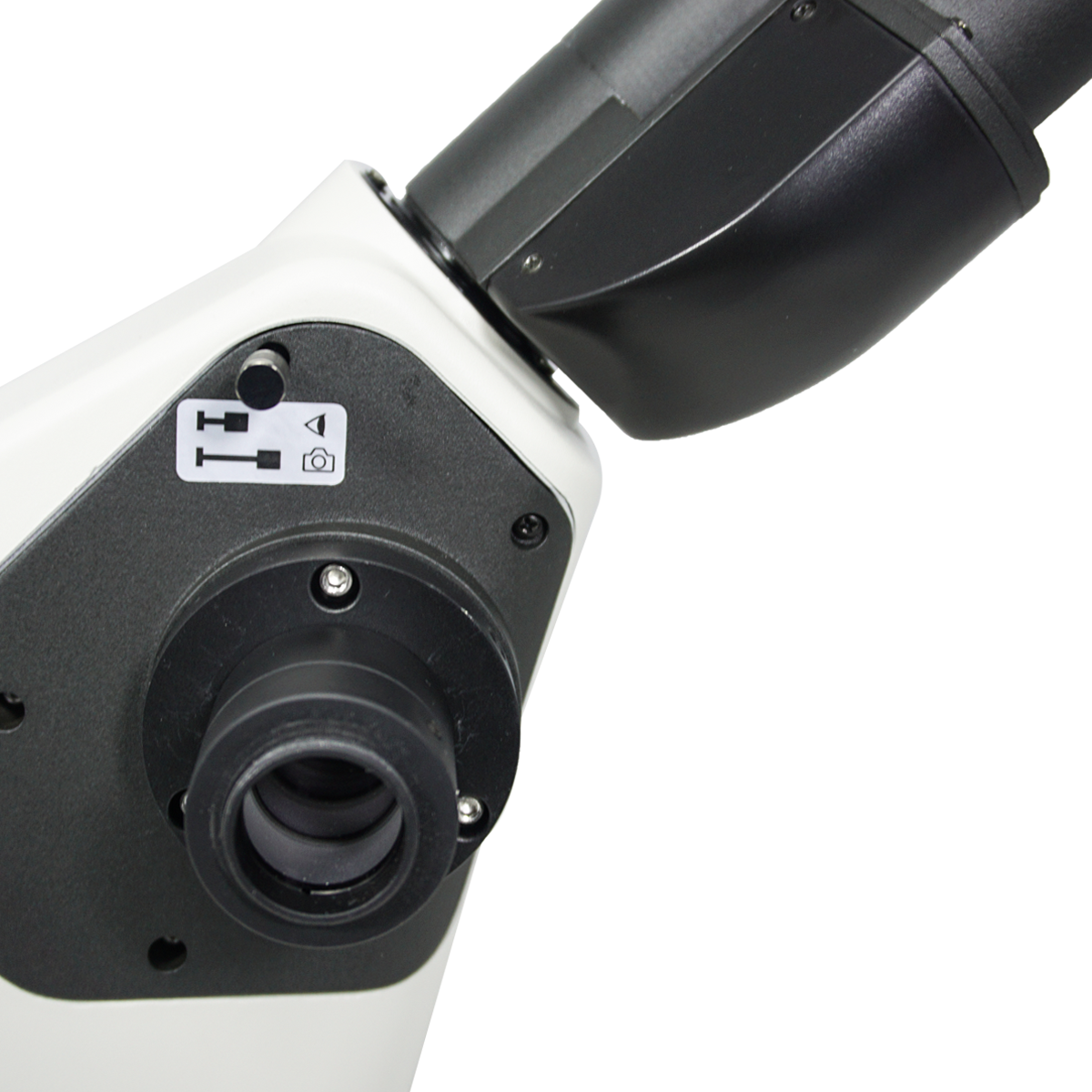

Image Port Switch Mode0/100 Switch Trinocular
Eyepiece
10X Adjustable Eyepiece (Pair Dia. 30/FN22)
Eyepiece TypeAdjustable Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 22mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 27mm
Eyepiece Diopter Correction±5°
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.17kg (0.37lbs)
Centering Eyepiece ( Dia. 30)
Centering Telescope Size for Eye Tube Dia. 30mm
Surface TreatmentElectroplating Black
MaterialAluminum
ColorBlack
Net Weight0.11kg (0.24lbs)
Applied FieldFor Nexcope-NIB600 Series Microscope
Biological Objective
4X Infinity Long Working Distance Plan Achromatic Objective
Objective Optical SystemInfinite
Objective Optical Magnification4X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance60mm
Objective Working Distance30mm
Numerical Aperture (N.A.)N.A. 0.10
Objective Cover Glass Thickness1.2
Objective Immersion MediaDry Objective
Objective Screw ThreadM25x0.75mm
Objective Outer Diameter Dia. 28.5mm
Surface TreatmentPlastic Spray Coating
MaterialMetal
ColorBlack
Net Weight0.07kg (0.15lbs)
Applied FieldFor BM0407, PH0407 Series Microscope, Nikon E-200 Microscope
Phase Contrast Objective
10X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Objective Optical SystemInfinite
Objective Optical Magnification10X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance60mm
Objective Working Distance10.2mm
Numerical Aperture (N.A.)N.A. 0.25
Objective Cover Glass Thickness1.2
Objective Screw ThreadM25x0.75mm
Objective Outer Diameter Dia. 28.5mm
Surface TreatmentPlastic Spray Coating
MaterialMetal
ColorBlack
Net Weight0.11kg (0.24lbs)
Applied FieldFor BM0407, PH0407 Series Microscope, Nikon E-200 Microscope
20X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Objective Optical SystemInfinite
Objective Optical Magnification20X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance60mm
Objective Working Distance12mm
Numerical Aperture (N.A.)N.A. 0.40
Objective Cover Glass Thickness1.2
Objective Screw ThreadM25x0.75mm
Objective Outer Diameter Dia. 28.5mm
Surface TreatmentPlastic Spray Coating
MaterialMetal
ColorBlack
Net Weight0.11kg (0.24lbs)
Applied FieldFor BM0407, PH0407 Series Microscope, Nikon E-200 Microscope
40X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Objective Optical SystemInfinite
Objective Optical Magnification40X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance60mm
Objective Working Distance2.2mm
Numerical Aperture (N.A.)N.A. 0.60
Objective Cover Glass Thickness1.2
Objective Screw ThreadM25x0.75mm
Objective Outer Diameter Dia. 28.5mm
Surface TreatmentPlastic Spray Coating
MaterialMetal
ColorBlack
Net Weight0.13kg (0.29lbs)
Applied FieldFor BM0407, PH0407 Series Microscope, Nikon E-200 Microscope

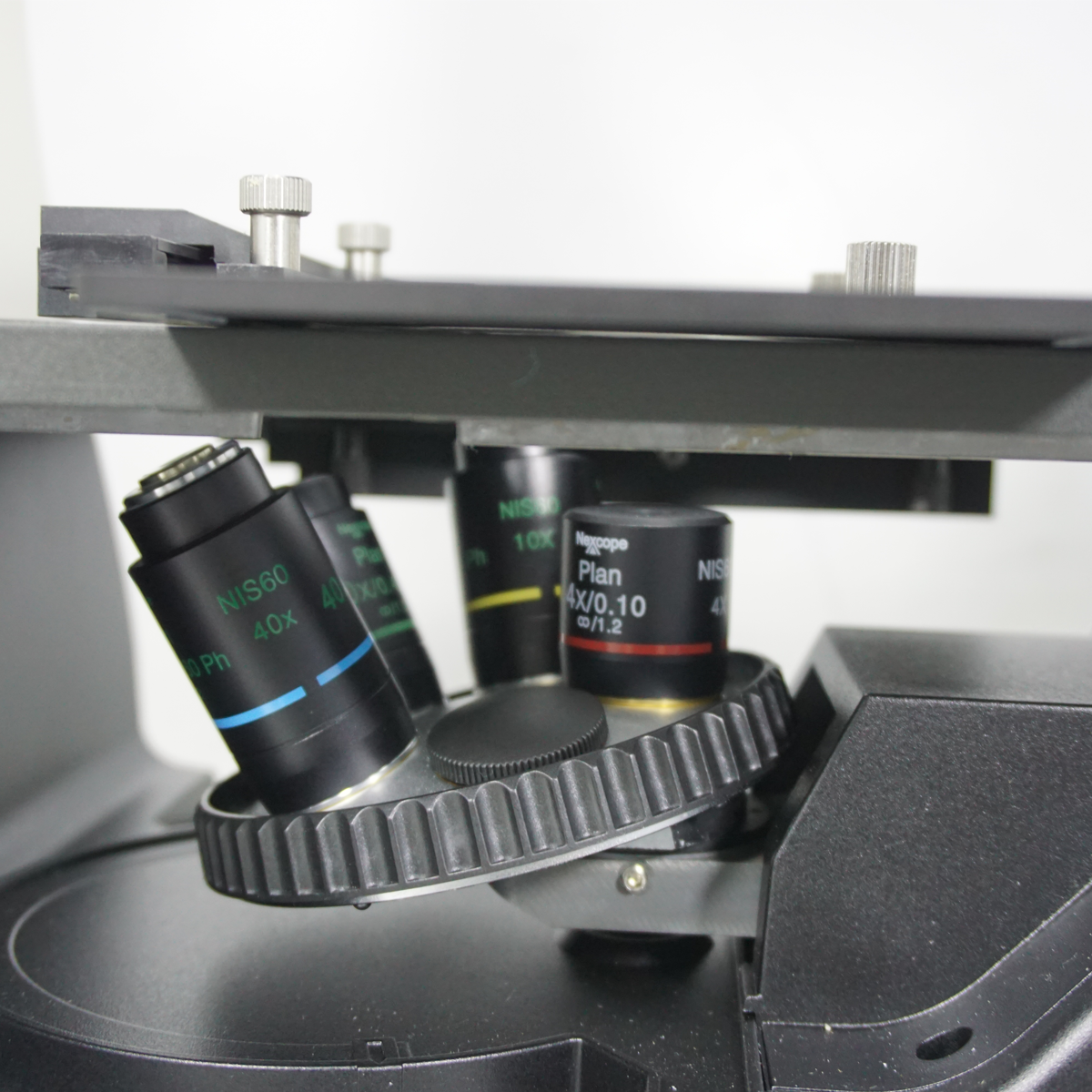

Nosepiece
Inward/Outward NosepieceNosepiece Outward
Number of Holes on NosepieceQuintuple (5) Holes
Nosepiece Switch ModeManual
Nosepiece Screw Thread for ObjectiveM25x0.75mm
Microscope Stand
Base TypeIllumination Base
Base ShapeT-shape
Base Dimensions24.2x42.5x10cm
Focus ModeManual

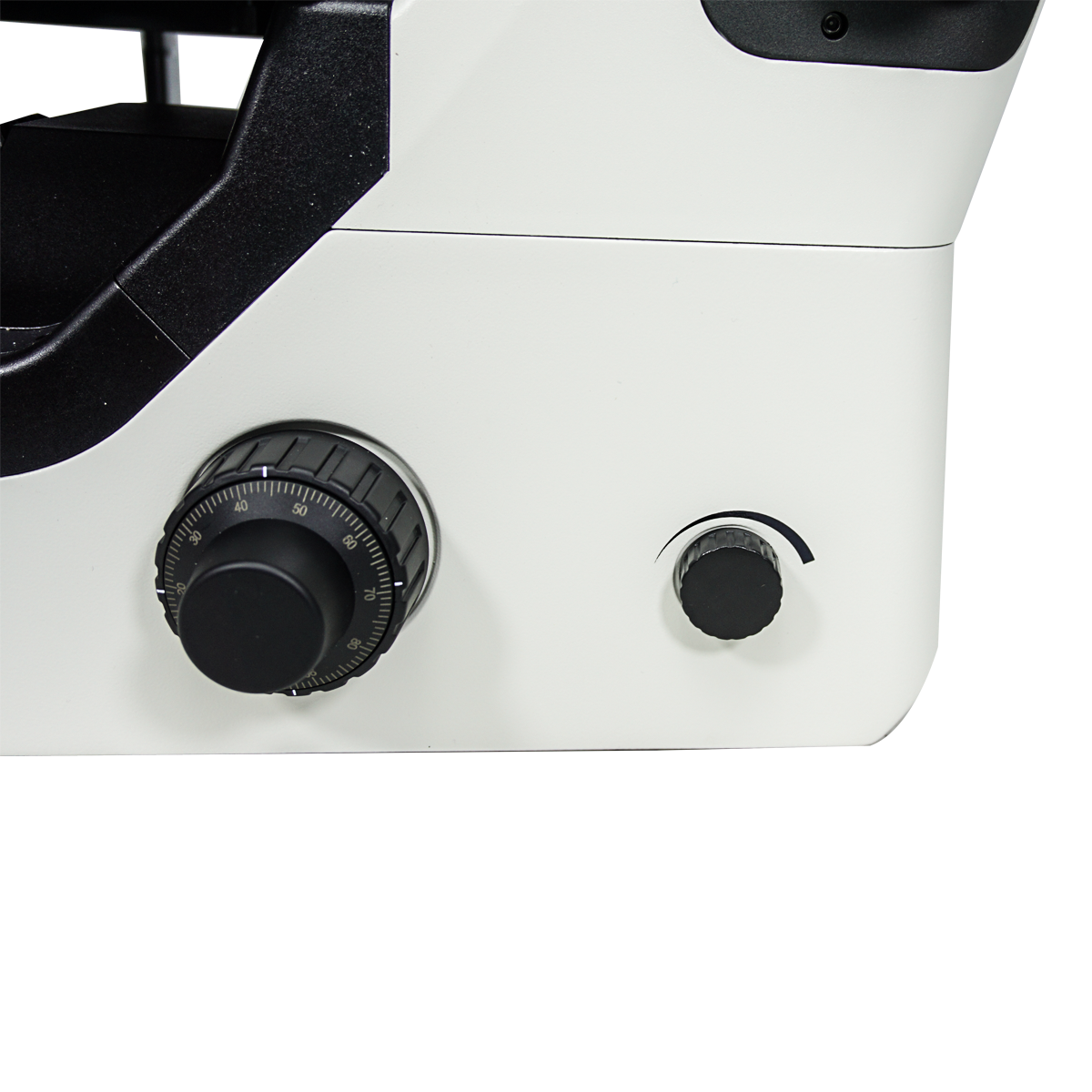

Coarse/Fine Focus TypeCoaxial Coarse/Fine Focus
Focus Distance85mm
Fine Focus Travel DistanceSame as Focus Distance
Coarse Focus Distance per Rotation32mm
Fine Focus Distance per Rotation0.2mm
Fine Focus Minimum Scale2μm
Focusing Knob Tightness AdjustableTightness Adjustable

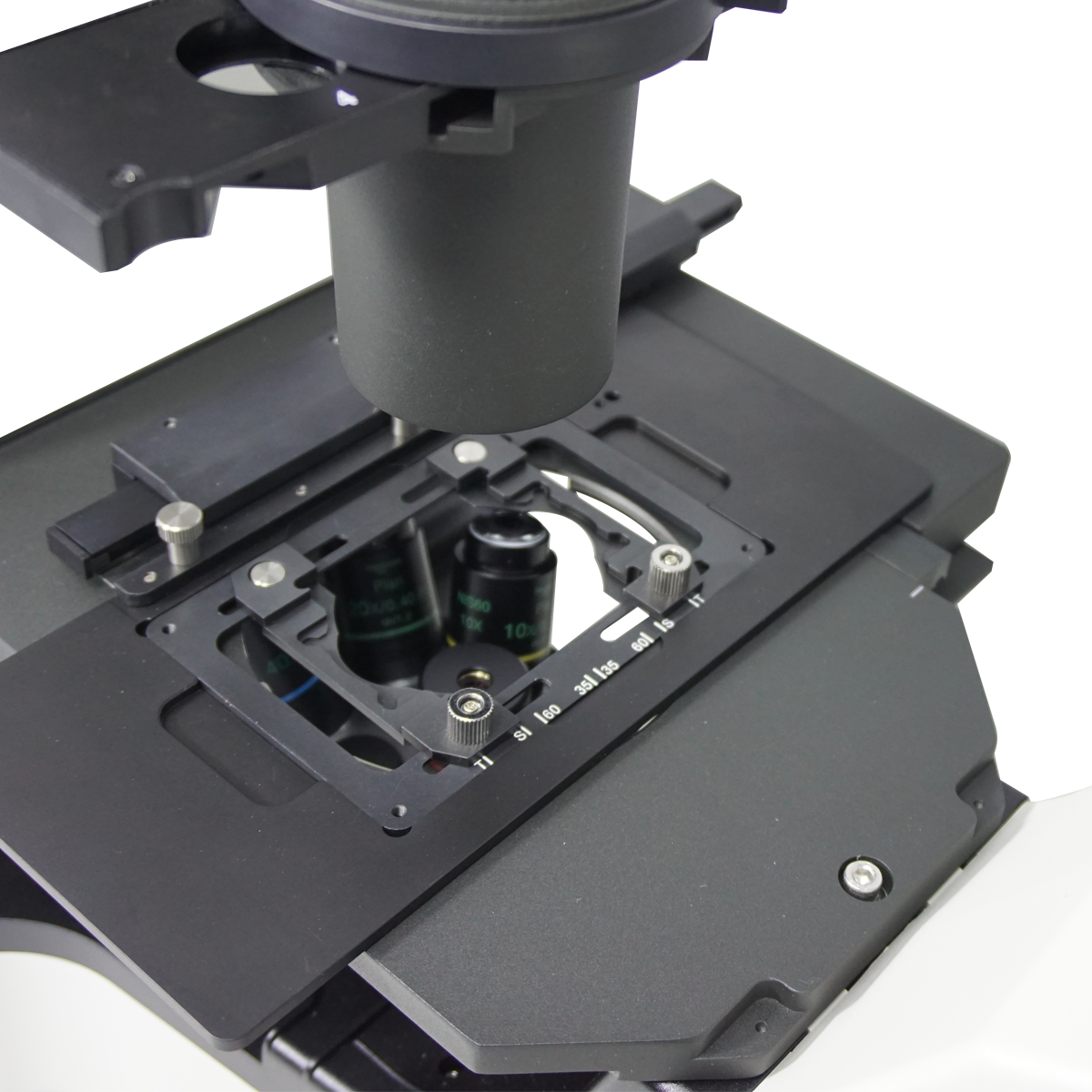

Microscope Stage
Stage Platform Dimensions170x250mm
Stage Backlight Window Size Dia. 110mm
Mounting Holes Position120mm
Mounting Hole DimensionsM4
XY Stage Travel Distance128x80mm
Stage Knob with ScaleWith Scale
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight1.16kg (2.56lbs)
Multifunctional Plate Size128x86mm 83x56mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.05kg (0.11lbs)
Dimensions128x86x3mm (5.039x3.386x0.118 in. )
Thickness3mm
Applied FieldFor Nexcope-NIB600 Series Microscope
Microscope Illuminator
Illumination TypeLED Coaxial Transmitted Light
Transmission Light Source TypeLED
Phase Plate
Annular Phase Plate HolesTriple holes
Objective Magnification of Phase Plate 10-20X 40X Phase Plate
Surface TreatmentElectroplating Black
MaterialPlastic
ColorBlack
Net Weight0.04kg (0.09lbs)
Condenser
Condenser TypeLong Working Distance Condenser
Condenser Mount Size Dia. 60mm
Dry/Oil TypeDry
Applicable Range of Objective4-40X
Condenser Max. Numerical ApertureN.A. 0.30
Condenser Mounting Flange SizeFastening Screw
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.37kg (0.82lbs)
0.5X Coupler
Coupler Mount Type for TrinocularFastening Screw
Coupler Mount Size for Trinocular Dia. 23.2mm
Coupler for Microscope TypeCompound Compatible
Coupler Magnification0.5X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.04kg (0.09lbs)
Applied FieldFor BM04010301 Trinocular Biological Microscope

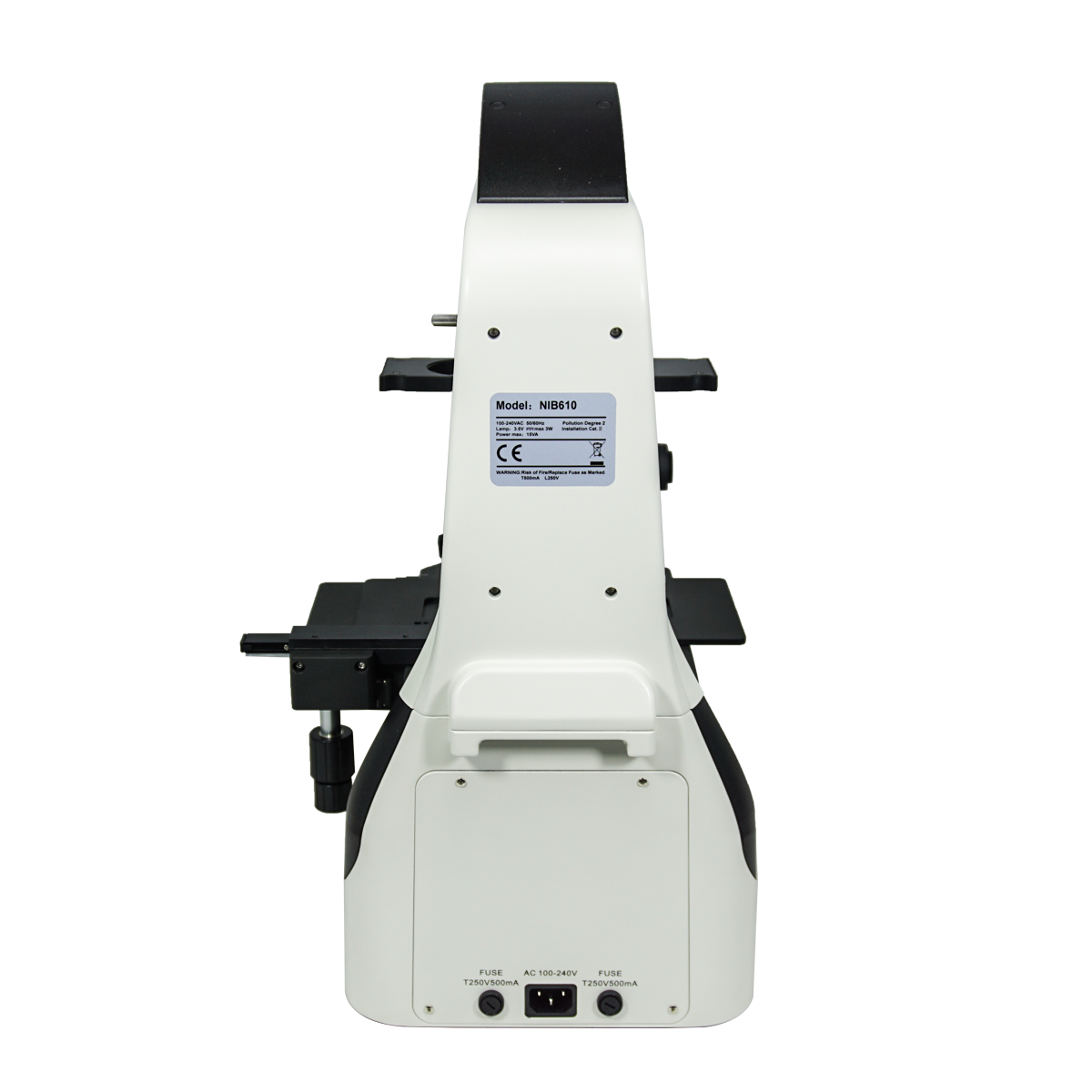

Power Supply
Output Power3W
Input VoltageAC 100-240V 50/60Hz
Power Cord Connector TypeUSA 3 Pins
Power Cable Length1.8m
Environment Requirement
Operating Temperature5~40℃ (41~104℉)
Operating Humidity80%
Other Parameters
Surface TreatmentPlastic Spray Coating
MaterialMetal
ColorBlack, White
Net Weight14.75kg (32.52lbs)
Dimensions244x543x526mm (9.606x21.378x20.709 in. )
Series
NIB600Nexcope-NIB610-Trinocular
Contains
Parts Including
PictureP/NProduct Name
Nexcope-NE620-Eyepiece-1010X Adjustable Eyepiece (Pair Φ30/FN22)
Nexcope-NIB610-Coupler-0.50.5X Coupler
Nexcope-NIB610-Objective-44X Infinity Long Working Distance Plan Achromatic Objective
Nexcope-NIB610-Objective-PH1010X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Nexcope-NIB610-Objective-PH2020X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Nexcope-NIB610-Objective-PH4040X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Nexcope-NIB610-CondenserCondenser
Nexcope-NIB610-Phase PlatePhase Plate
Nexcope-NIB610-Mechanical StageMechanical Stage
Nexcope-NIB610-Multifunctional Slit Plate-1Multifunctional Slit Plate
Nexcope-NIB610-Centering EyepieceCentering Eyepiece (Φ30)
Desiccant Bag1 Bag
Allen KeyM1.5 1pc M2 1pc M2.5 1pc
Dust Cover1pc
Fuse2pc
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)68x38x64cm (26.772x14.961x25.197″)
Packaging Dimensions(2)47x36x37cm (18.504x14.173x14.567″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight23.85kg (52.58lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)68x38x64cm (26.772x14.961x25.197″)
Total Gross Weight of Transportation(kilogram)23.85
Total Gross Weight of Transportation(pound)52.58
Quantity of One Transportation Carton2pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
Nexcope-NE620-Eyepiece-10   (10X  Dia. 22mm)
Magnification Field of View(mm)
Nexcope-NIB610-Objective-4 4X 30mm 40X 5.5mm
Nexcope-NIB610-Objective-PH10 10X 10.2mm 100X 2.2mm
Nexcope-NIB610-Objective-PH20 20X 12mm 200X 1.1mm
Nexcope-NIB610-Objective-PH40 40X 2.2mm 400X 0.55mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
Nexcope-NIB610-Coupler-0.5  (0.5X)
Magnification
Nexcope-NIB610-Objective-4 4X 2X
Nexcope-NIB610-Objective-PH10 10X 5X
Nexcope-NIB610-Objective-PH20 20X 10X
Nexcope-NIB610-Objective-PH40 40X 20X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (24in)
Digital Zoom Function
1/3 in. 6mm 101.6
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
Nexcope-NIB610-Objective-4 4X Nexcope-NIB610-Coupler-0.5 0.5X 1/3 in. 6mm 24in 2X 101.6 203.2X 3mm
Nexcope-NIB610-Objective-PH10 10X Nexcope-NIB610-Coupler-0.5 0.5X 1/3 in. 6mm 24in 5X 101.6 508X 1.2mm
Nexcope-NIB610-Objective-PH20 20X Nexcope-NIB610-Coupler-0.5 0.5X 1/3 in. 6mm 24in 10X 101.6 1016X 0.6mm
Nexcope-NIB610-Objective-PH40 40X Nexcope-NIB610-Coupler-0.5 0.5X 1/3 in. 6mm 24in 20X 101.6 2032X 0.3mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
