Product Description
Technical Specifications

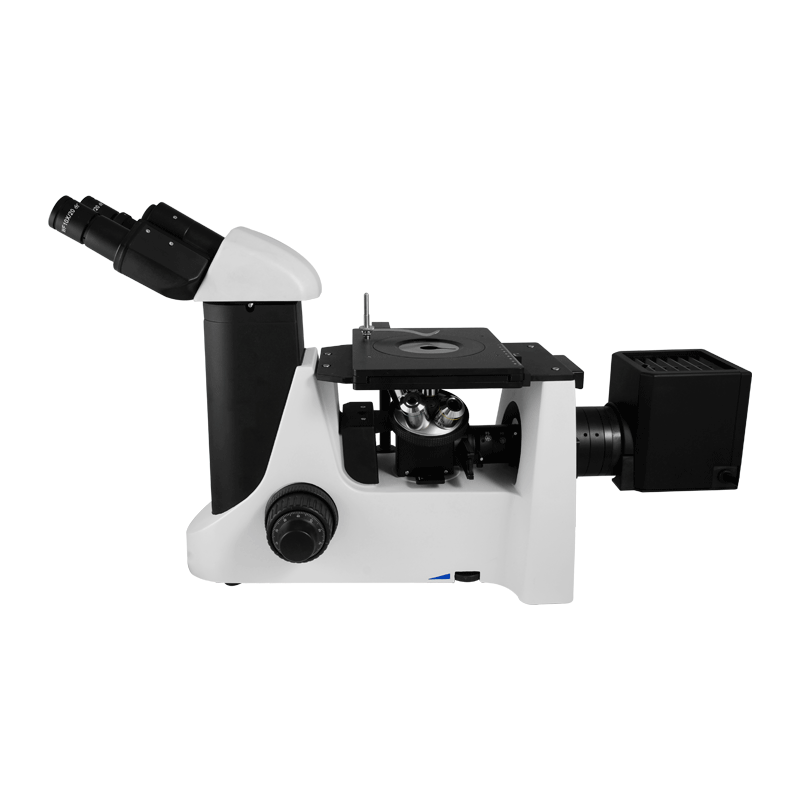

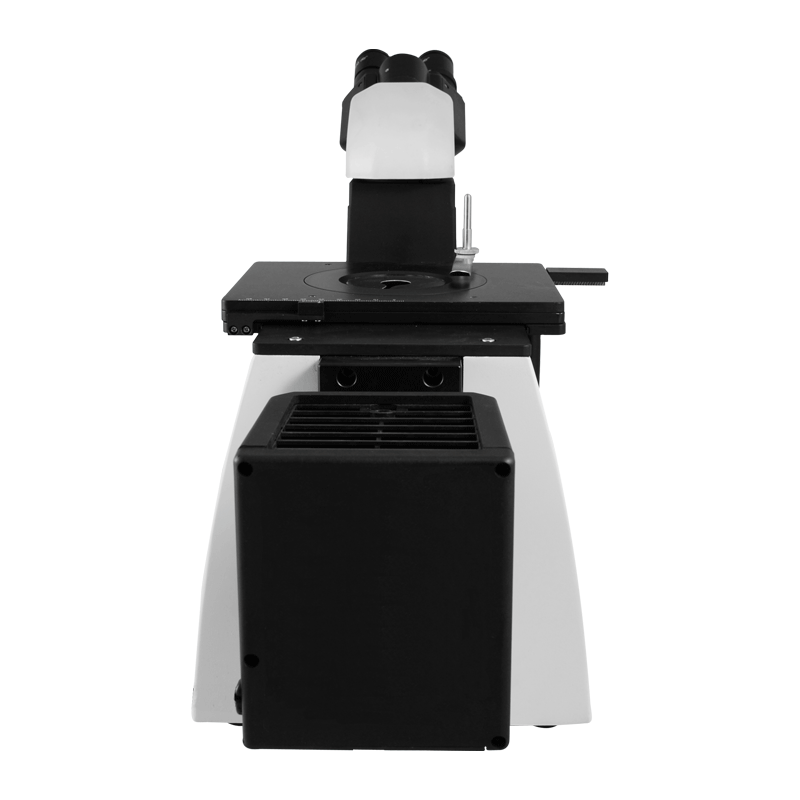

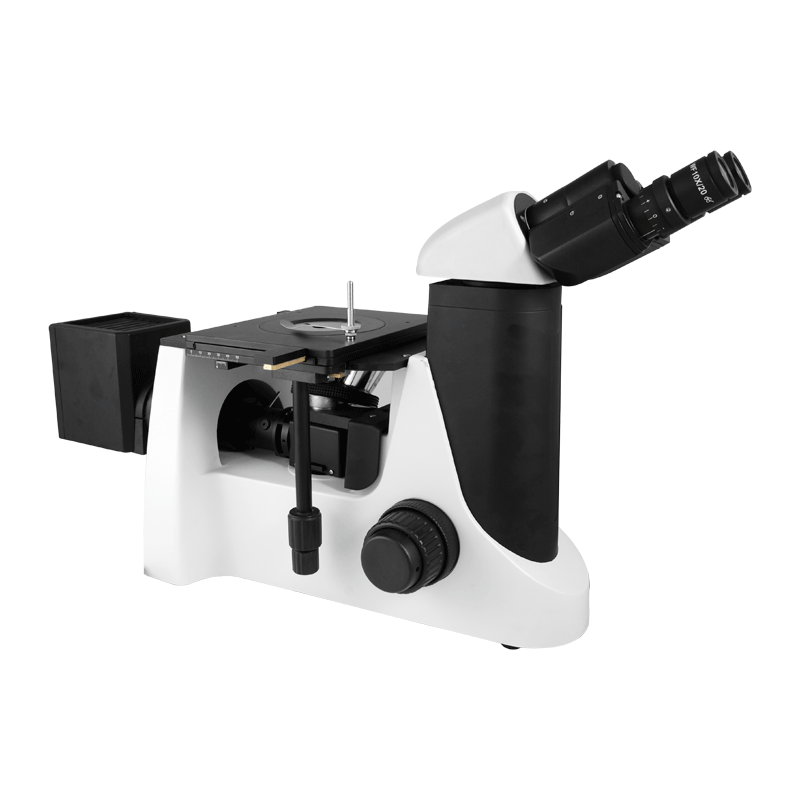

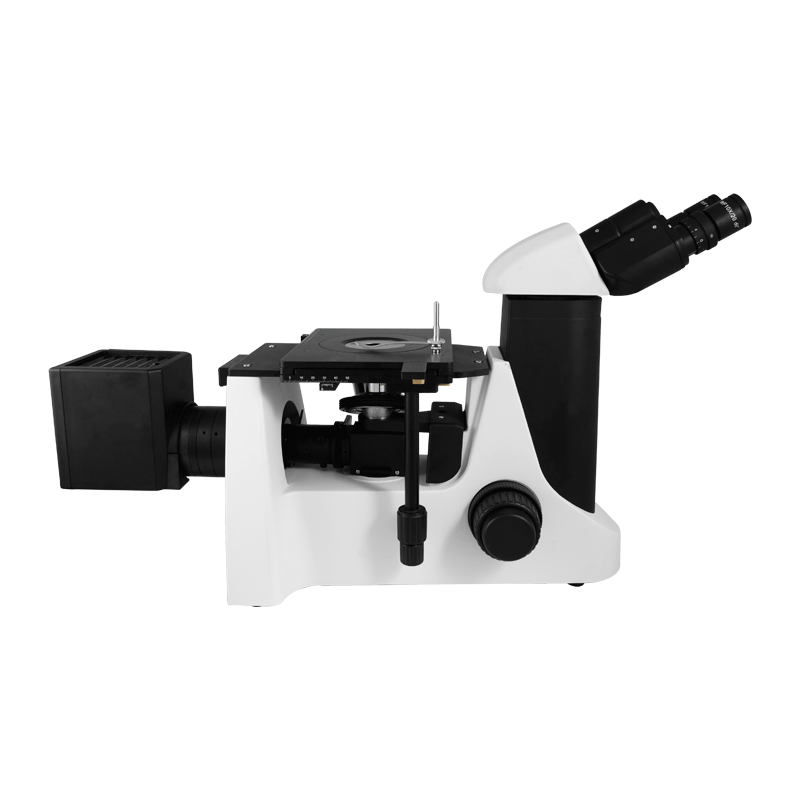

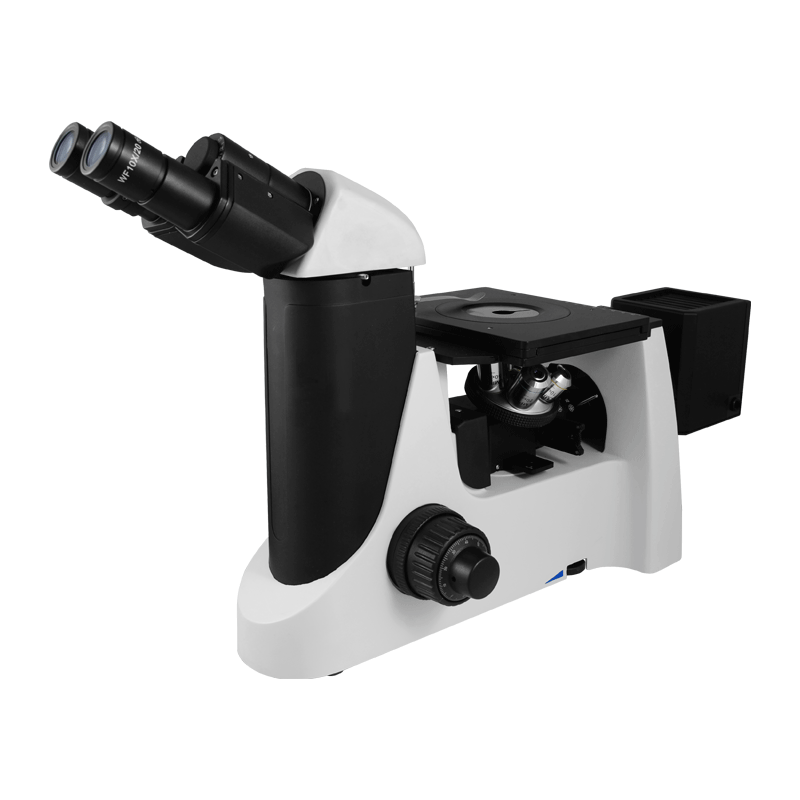

MT03030203 Binocular Inverted Metallurgical Microscope
Optical System Specifications
Optical SystemInfinite
Tube Lens Focal Length200mm
System Optical Magnification100-800X
Expandable System Optical Magnification (Optional Parts Required)50-1600X
Total Magnification100-800X
Standard Eyepiece10X High Eyepoint Eyepiece
Standard Objective10X 20X 50X 80X Infinity Plan Achromatic Metallurgical Objective
System Field of View Dia. 0.25-2mm
Expandable System Field of View Dia. 0.13-4mm
System Working Distance0.9-20.3mm
Expandable System Working Distance0.17-21.026mm
Upright / InvertedInverted

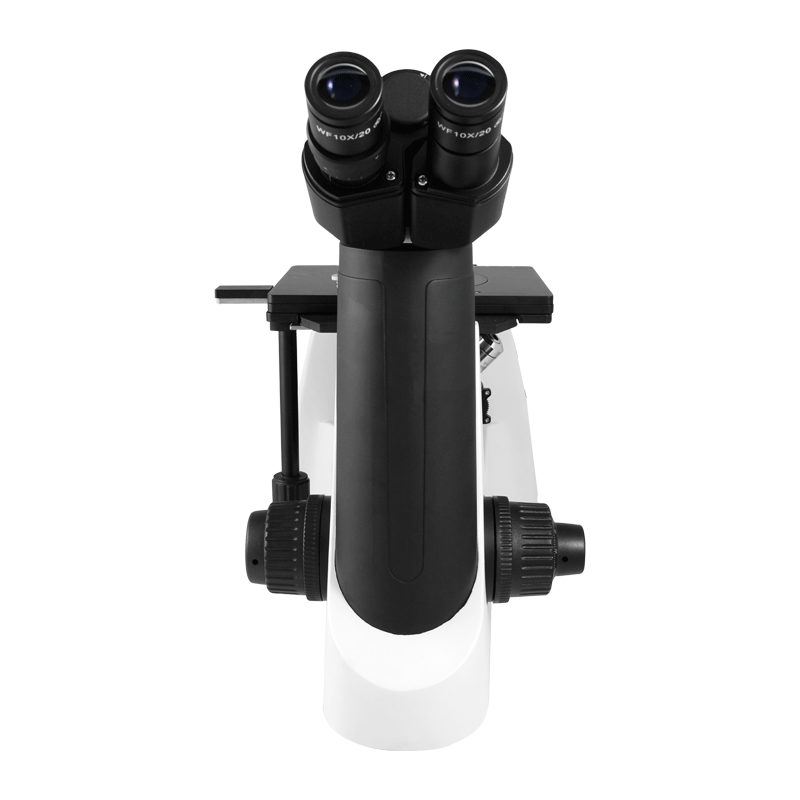

Compound Binocular Head
Eye Tube Optical SystemInfinite
Eye Tube TypeFor Compound Microscope
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle30°
Erect/Inverted ImageInverted Image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment52-75mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Diopter AdjustableLeft ±5°, Right Not Adjustable
Eye Tube Size for Scope Body/Carrier Dia. 44.5x5mm
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight0.80kg (1.76lbs)
Applied FieldFor BM0302 Series Microscope
Eyepiece
10X High Eyepoint Eyepiece (Pair Dia. 23.2/FN20)
Eyepiece TypeStandard Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 23.2mm
Eyepiece Field of View Dia. 20mm
Eyepoint TypeHigh Eyepoint Eyepiece
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.12kg (0.26lbs)
Metallurgical Objective
10X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification10X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective Focal Length20mm
Objective for Focal Length200mm
Objective Working Distance17.7mm
Numerical Aperture (N.A.)N.A. 0.25
Objective Resolution1.34μm
Objective Wavelength400-700nm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Applied FieldMT0302, MT0303, MT0304 Series Microscope
20X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification20X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective Focal Length10mm
Objective for Focal Length200mm
Objective Working Distance9.33mm
Numerical Aperture (N.A.)N.A. 0.40
Objective Resolution0.84μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 24.5mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.12kg (0.26lbs)
Applied FieldMT0302, MT0303, MT0304 Series Microscope
50X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification50X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective Focal Length4mm
Objective for Focal Length200mm
Objective Working Distance2.374mm
Numerical Aperture (N.A.)N.A. 0.70
Objective Resolution0.48μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Spring Mounted ObjectiveSpring Mounted objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 24.5mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.13kg (0.29lbs)
Applied FieldMT0302, MT0303, MT0304 Series Microscope
80X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification80X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective Focal Length2mm
Objective for Focal Length200mm
Objective Working Distance0.9mm
Numerical Aperture (N.A.)N.A. 0.80
Objective Resolution0.42μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Spring Mounted ObjectiveSpring Mounted objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 24.5mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.14kg (0.31lbs)
Applied FieldMT0302, MT0303, MT0304 Series Microscope

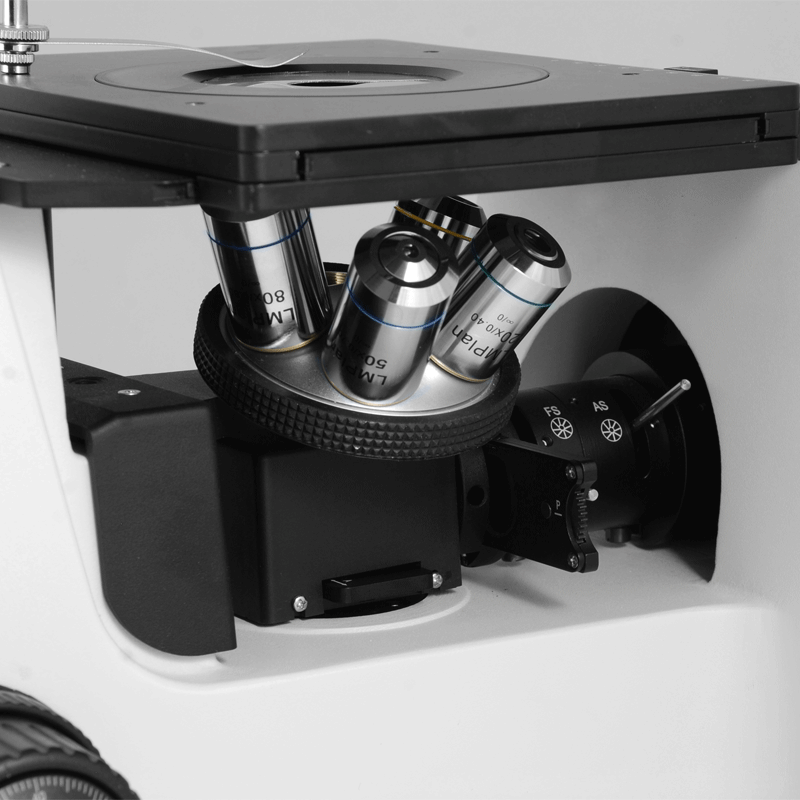

Nosepiece
Inward/Outward NosepieceNosepiece Inward
Number of Holes on NosepieceQuintuple (5) Holes
Nosepiece Switch ModeManual
Nosepiece Screw Thread for ObjectiveRMS Standard (4/5 in. x1/36 in. )
Microscope Stand
Stand Height275mm
Base TypeTable Base
Base ShapeT-shape
Base Dimensions380x220x95mm
Focus ModeManual
Coarse/Fine Focus TypeCoaxial Coarse/Fine Focus
Focus Distance15mm
Fine Focus Travel DistanceSame as Focus Distance
Coarse Focus Distance per Rotation14mm
Fine Focus Distance per Rotation0.1mm
Fine Focus Minimum Scale1μm
Focus LimitedLimited
Focusing Knob Tightness AdjustableTightness Adjustable

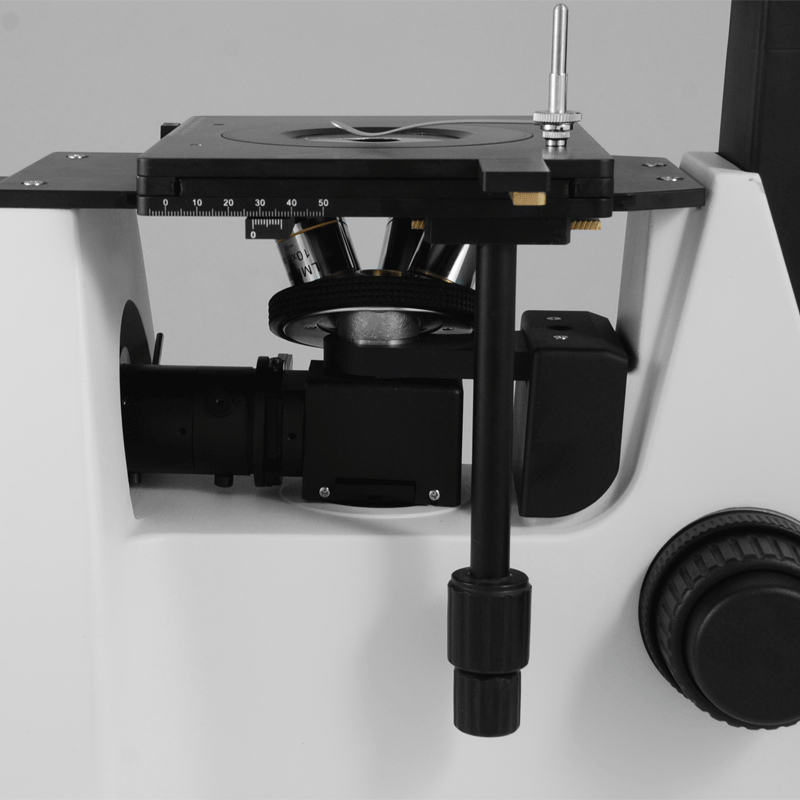

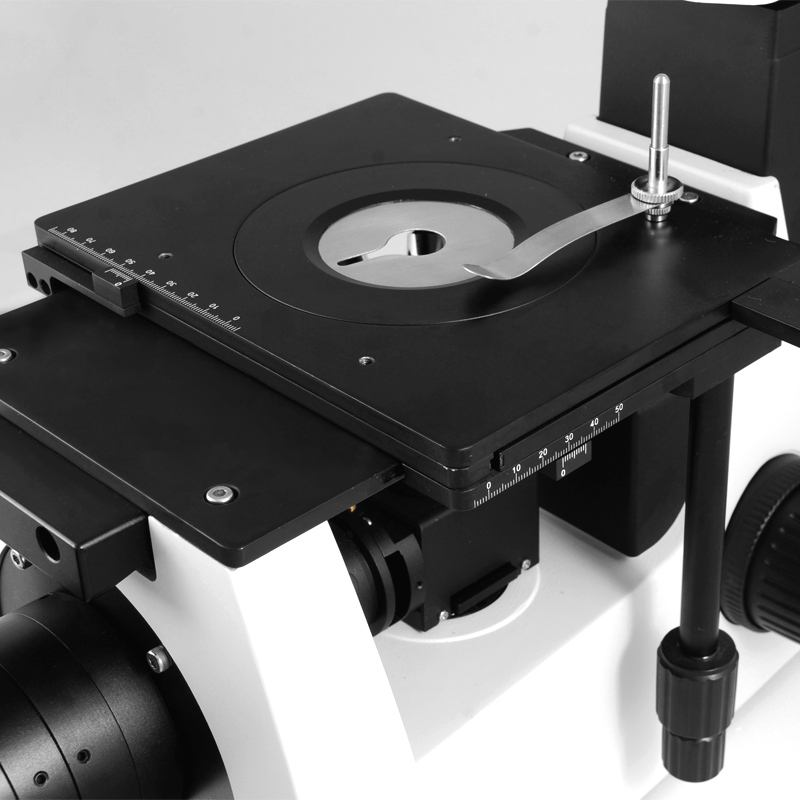

Microscope Stage
XY Stage Travel Distance80x50mm
XY-Axis Drive ModeManual
Stage Platform Dimensions180x155mm
Stage Backlight Window Size Dia. 100mm
Stage ScaleX: 0-85mm
Number of Stage Clips1pc
Clip
Number of Stage Clips1pc
Stage Clip SizeM4
Length85mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.02kg (0.04lbs)
Applied FieldFor MT0303 Series Microscope
Water Droplets Plate
Diameter of Inner Hole Dia. 18mm
Water Droplet Plate Size Dia. 110mm
Surface TreatmentElectroplating Black
ColorBlack
Net Weight0.06kg (0.13lbs)
Applied FieldFor MT0303 Series Microscope
Microscope Illuminator
Illumination TypeHalogen Coaxial Reflection Light
Bottom Illumination TypeHalogen Light
Polarizing Kit
Simplified Polarizing Kit
Polarizer Rotation Range360°
Polarizer Mount Size28x76x5.75mm
Analyzer Locking DeviceYes
Analyzer Mount Size28x80x4mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.05kg (0.11lbs)
Applied FieldFor MT0303 Series Microscope
Filter (Blue)
Filter ColorBlue
Filter Size Dia. 26mm
Filter Switch TypePlug Type
MaterialGlass
Applied FieldFor MT0303 Series Microscope
Filter (Yellow)
Filter ColorYellow
Filter Size Dia. 26mm
Filter Switch TypePlug Type
MaterialGlass
Applied FieldFor MT0303 Series Microscope
Filter (Green)
Filter ColorGreen
Filter Size Dia. 26mm
Filter Switch TypePlug Type
MaterialGlass
Applied FieldFor MT0303 Series Microscope
Halogen Bulb
12V 50W Halogen Bulb
Bulb Rated Power50W
Bulb Rated VoltageDC 12V
Bulb ShapeOval
Bulb Mounting ModeBi-Pin
Light Bulb Pin StandardG6.35 (6.35mm)
LCL34mm
MaterialGlass
Applied FieldFor MT03040303 Trinocular Inverted Metallurgical Microscope
Power Supply
Output Power50W
Input VoltageAC 110-240V 50/60Hz
Output VoltageDC 12V
Power Cord Connector TypeUSA 3 Pins
Power AdapterDC 5.5x2.5mm
Power Cable Length1.8m
Fuse
5A Fuse
Fusing Current5A/250V
Fuse TypeGlass Tube Fuse (Fast Acting)
Fuse Size5x20
Fuse StandardGB
MaterialGlass
ColorSilver
Net Weight0.002kg (0.004lbs)
Environment Requirement
Operating Temperature5~40℃ (41~104℉)
Operating Humidity80%
Other Parameters
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight15.00kg (33.06lbs)
Dimensions450x215x390mm (17.72x8.46x15.35 in. )
Series
MT0303MT03030203
Contains
Parts Including
PictureP/NProduct Name
BU9903120112V 50W Halogen Bulb
EP990311355A Fuse
BM0301221210X High Eyepoint Eyepiece (Pair Φ23.2/FN20)
BM03021221Compound Binocular Head
MT03035291Clip
MT0302333110X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
MT0302343120X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
MT0302363150X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
MT0302373180X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
MT03035251Water Droplets Plate
MT03035521Filter (Blue)
MT03035531Filter (Yellow)
MT03035551Filter (Green)
MT03036201Simplified Polarizing Kit
Desiccant Bag1 Bag
Allen KeyM2 1pc M2.5 1pc M3 1pc
Dust Cover1pc
Fuse2pc
Spare Bulb1pc
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)49x58x28cm (1.929x2.283x1.102″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight16.50kg (36.38lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)49x58x28cm (1.929x2.283x1.102″)
Total Gross Weight of Transportation(kilogram)16.50
Total Gross Weight of Transportation(pound)36.38
Quantity of One Transportation Carton1pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
BM03012212   (10X  Dia. 20mm) BM03012511   (16X  Dia. 13mm)
Magnification Field of View(mm) Magnification Field of View(mm)
MT03023231 5X 23.6mm 50X 4mm 80X 2.6mm
MT03023331 10X 17.7mm 100X 2mm 160X 1.3mm
MT03023431 20X 9.33mm 200X 1mm 320X 0.65mm
MT03023631 50X 2.374mm 500X 0.4mm 800X 0.26mm
MT03023731 80X 0.9mm 800X 0.25mm 1280X 0.16mm
MT03023831 100X 0.17mm 1000X 0.2mm 1600X 0.13mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.

Recently viewed products
