Product Description
Technical Specifications

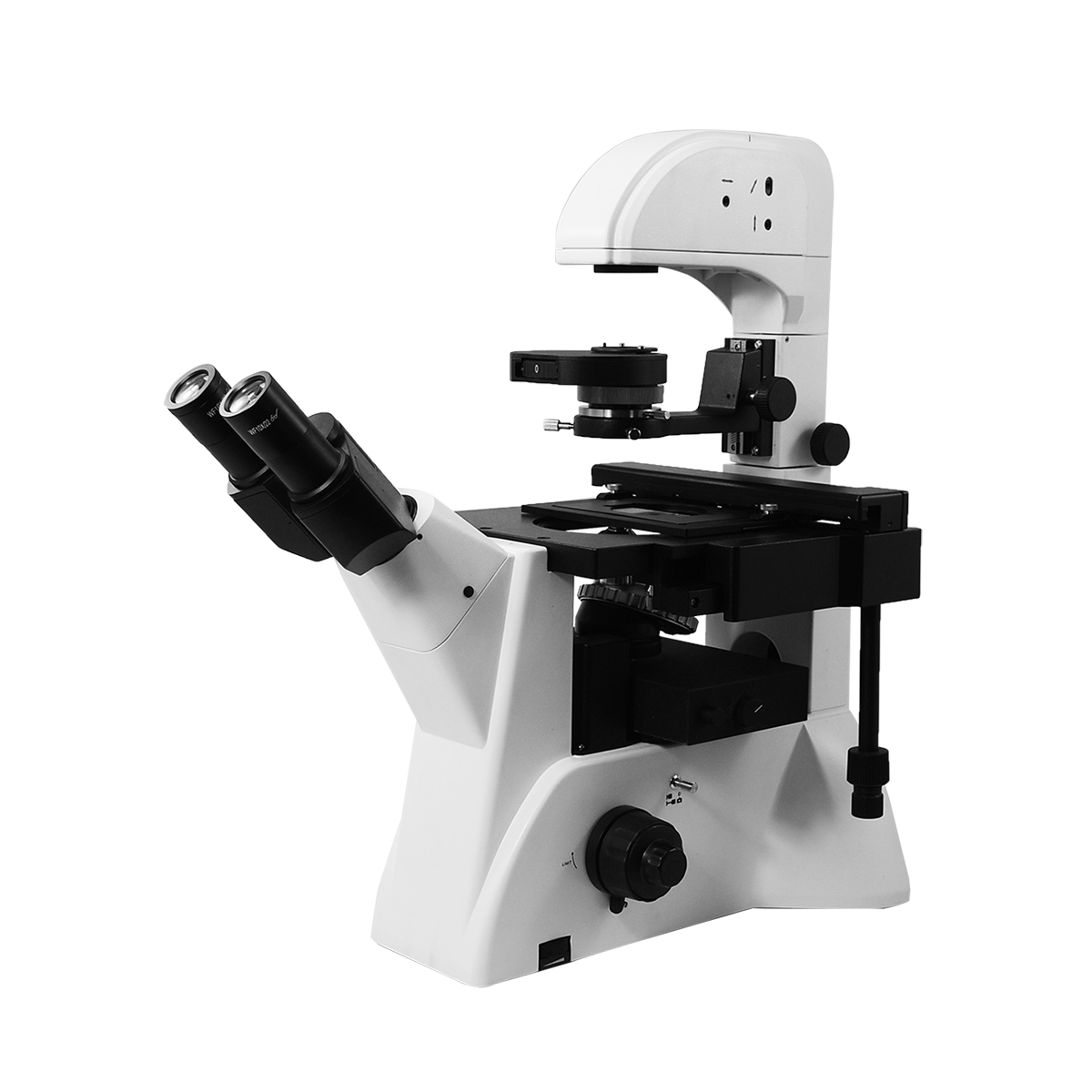

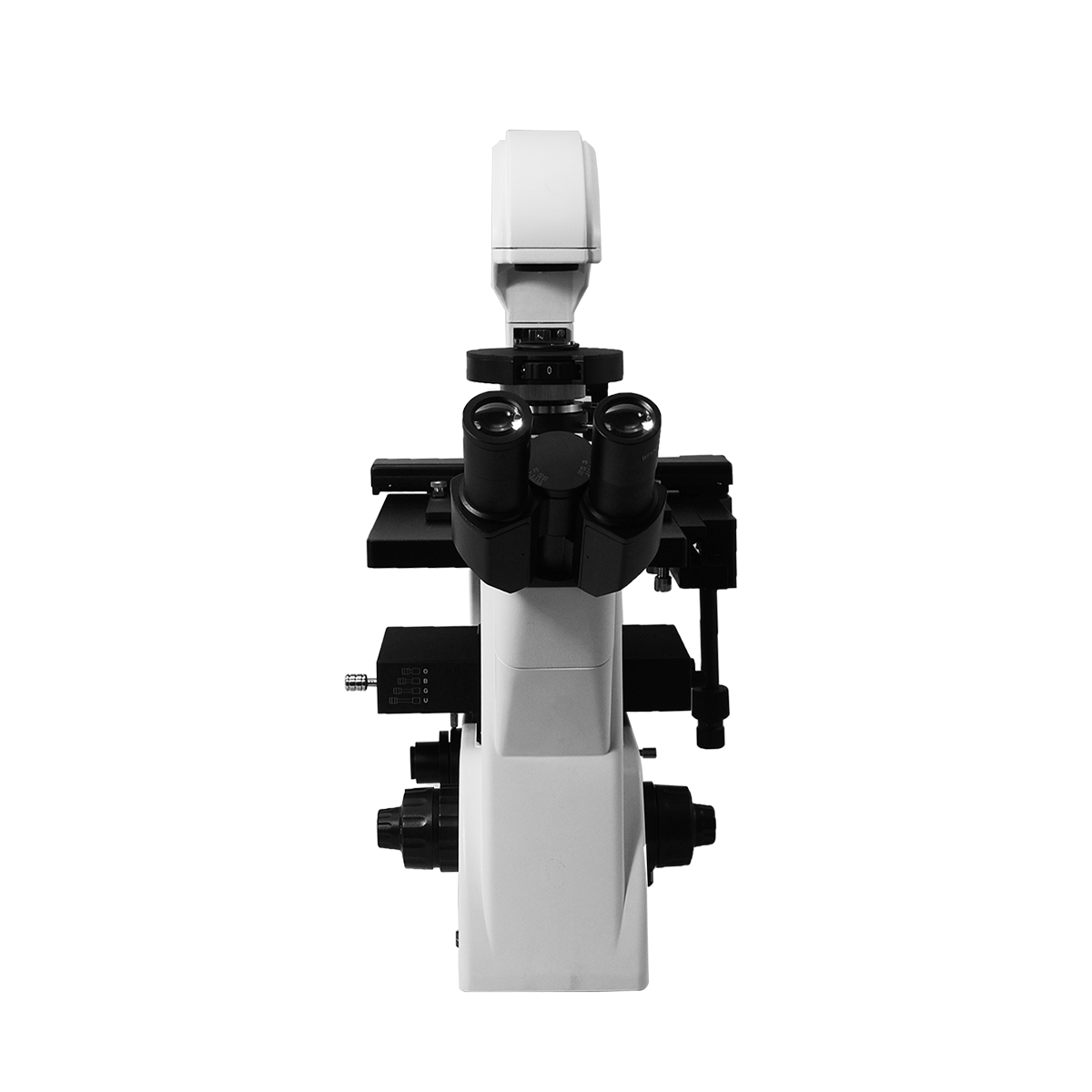

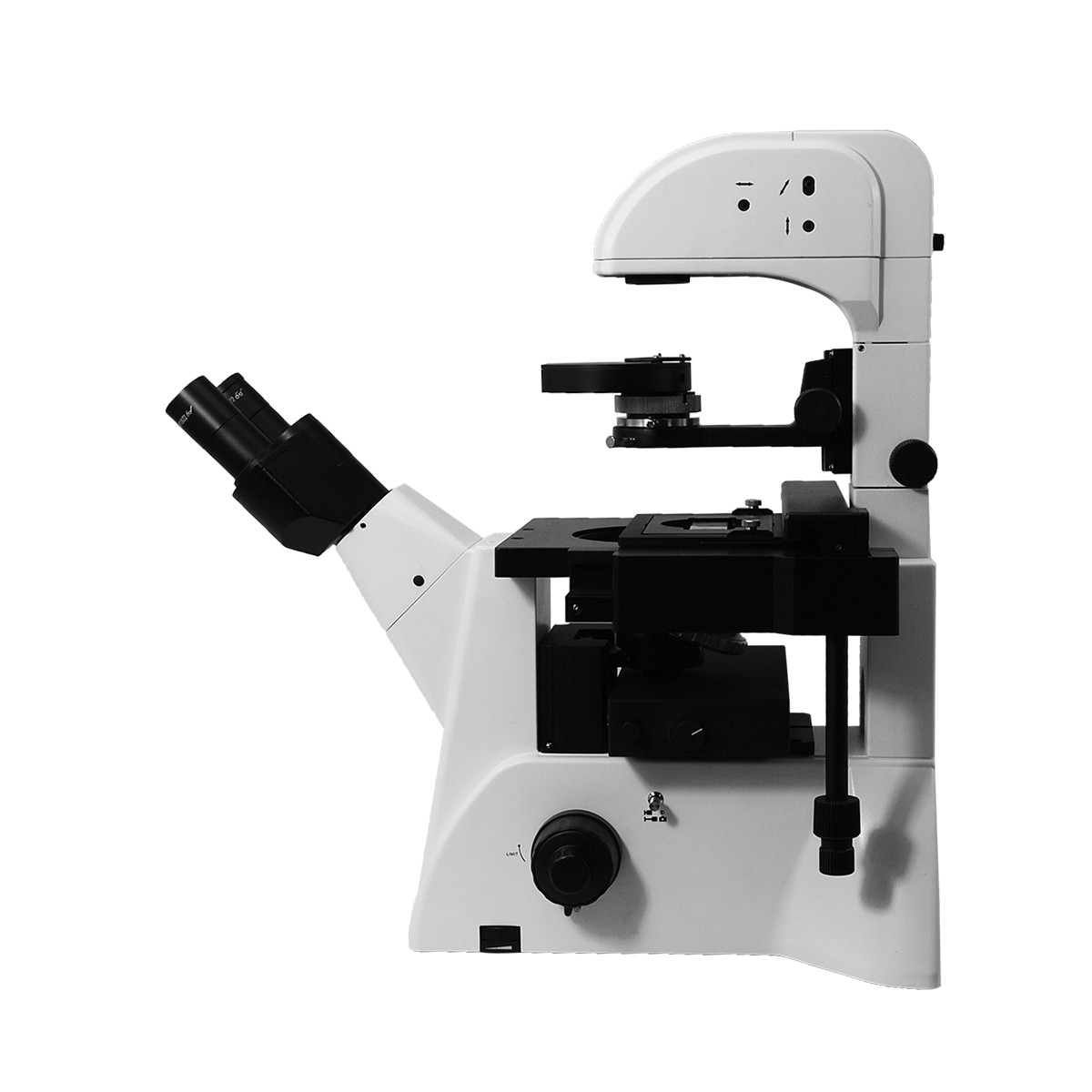

FM02020303 Trinocular Fluorescence Microscope
Optical System Specifications
Trinocular Inverted Biological Microscope
Optical SystemInfinite
Tube Lens Focal Length200mm
System Optical Magnification100-400X
Trinocular Optical Magnification5-20X
Total Magnification100-400X
Standard Eyepiece10X High Eyepoint Eyepiece
Standard Objective10X 20X 40X Infinity Long Working Distance Plan Achromatic Objective 10X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Standard Coupler0.5X
System Field of View Dia. 0.55-2.2mm
System Working Distance4.3-8.0mm
Upright / InvertedInverted
Compound Binocular Head
Eye Tube Optical SystemInfinite
Eye Tube TypeFor Compound Microscope
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle45°
Erect/Inverted ImageErect image
Eye Tube RotatableFixed
Interpupillary Adjustment53-75mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Diopter AdjustableNot Adjustable
Eye Tube Size for Scope Body/Carrier Dia. 42.3mm
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight0.65kg (1.43lbs)
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
Eyepiece
10X High Eyepoint Eyepiece (Pair Dia. 30/FN22)
Eyepiece TypeStandard Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 22mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 27mm
Surface TreatmentBlack Oxide Finish
MaterialMetal
ColorBlack
Net Weight0.16kg (0.35lbs)
Centering Eyepiece ( Dia. 30)
Centering Telescope Size for Eye Tube Dia. 30mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.084kg (0.185lbs)
Applied FieldFor BM1405 Series Microscope
Biological Objective
10X Infinity Long Working Distance Plan Achromatic Objective
Objective Optical SystemInfinite
Objective Optical Magnification10X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance4.3mm
Numerical Aperture (N.A.)N.A. 0.25
Objective Cover Glass Thickness1.2
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.10kg (0.22lbs)
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
20X Infinity Long Working Distance Plan Achromatic Objective
Objective Optical SystemInfinite
Objective Optical Magnification20X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance8.0mm
Numerical Aperture (N.A.)N.A. 0.40
Objective Cover Glass Thickness1.2
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.09kg (0.20lbs)
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
40X Infinity Long Working Distance Plan Achromatic Objective
Objective Optical SystemInfinite
Objective Optical Magnification40X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance3.5mm
Numerical Aperture (N.A.)N.A. 0.60
Objective Cover Glass Thickness1.2
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.13kg (0.29lbs)
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
Phase Contrast Objective
10X Infinity Long Working Distance Plan Achromatic Phase Contrast Objective
Objective Optical SystemInfinite
Objective Optical Magnification10X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance4.3mm
Numerical Aperture (N.A.)N.A. 0.25
Objective Cover Glass Thickness1.2
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.10kg (0.22lbs)
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
Nosepiece
Trinocular Inverted Biological Microscope
Inward/Outward NosepieceNosepiece Inward
Number of Holes on NosepieceQuintuple (5) Holes
Nosepiece Switch ModeManual
Nosepiece Screw Thread for ObjectiveRMS Standard (4/5 in. x1/36 in. )
Microscope Stand
Trinocular Inverted Biological Microscope
Stand Height550mm
Base TypeTable Base
Focus ModeManual
Coarse/Fine Focus TypeCoaxial Coarse/Fine Focus
Focus Distance10mm
Fine Focus Travel DistanceSame as Focus Distance
Coarse Focus Distance per Rotation20mm
Fine Focus Distance per Rotation0.125mm
Fine Focus Minimum Scale2μm
Focus LimitedLimited
Focusing Knob Tightness AdjustableTightness Adjustable

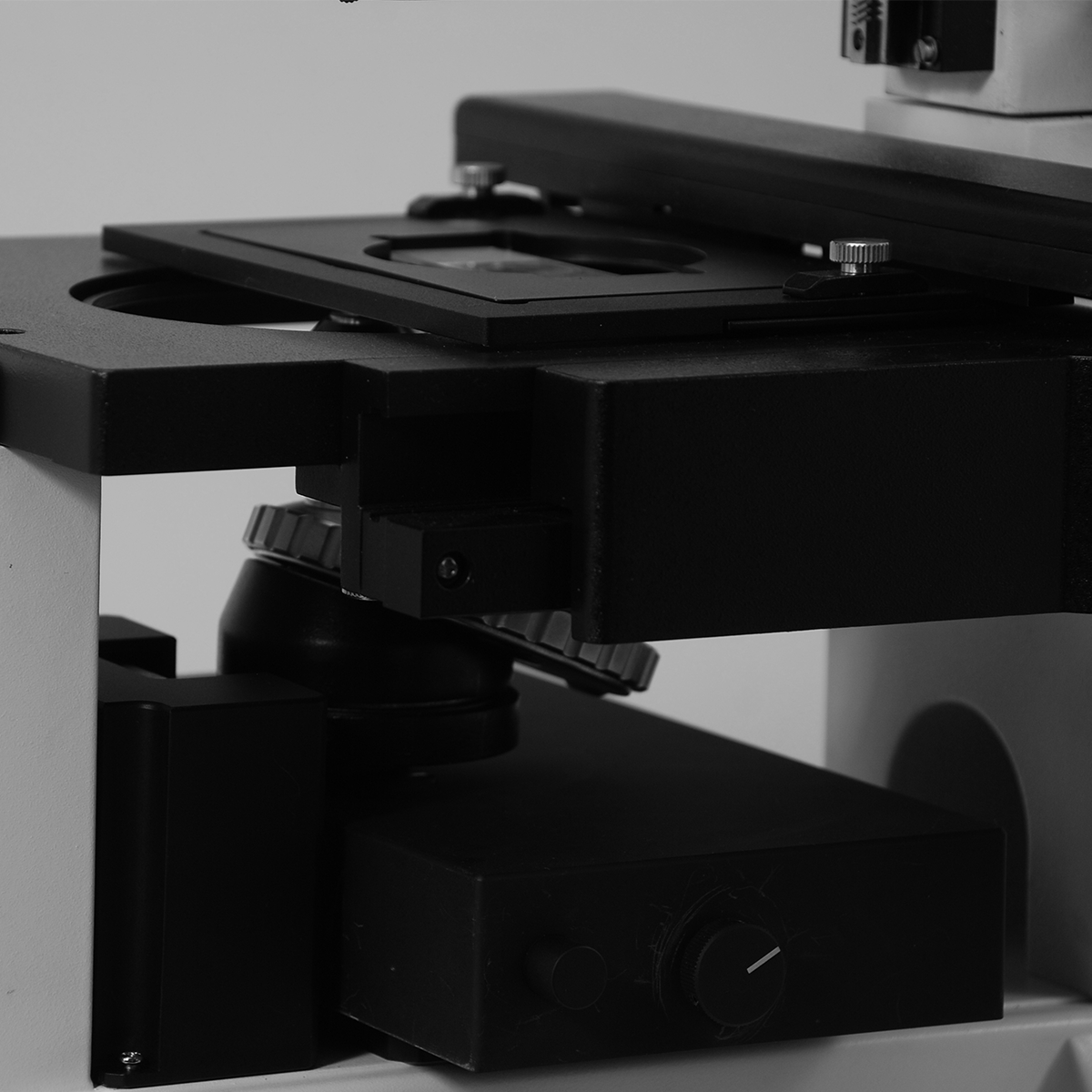

Microscope Stage
Trinocular Inverted Biological Microscope
Stage Platform Dimensions250x160mm
Surface TreatmentSpray Paint
MaterialMetal
ColorBlack
Surface TreatmentSpray Paint
MaterialMetal
ColorBlack
Net Weight1.49kg (3.28lbs)
Applied ToFor BM14050303 Trinocular Inverted Biological Microscope
NotesMoving range: 77mm (vertical) X134.5mm (horizontal)
Multifunctional Plate Size29x77.5mm Dia. 68.5mm
Surface TreatmentBlack Oxide Finish
MaterialMetal
ColorBlack
Net Weight0.09kg (0.20lbs)
Dimensions129x80x4mm (5.078x3.149x0.157 in. )
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
Multifunctional Plate Size34x77.5mm Dia. 68.5mm
Surface TreatmentBlack Oxide Finish
MaterialMetal
ColorBlack
Net Weight0.09kg (0.20lbs)
Dimensions129x80x4mm (5.078x3.149x0.157 in. )
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
Multifunctional Plate Size57x83mm
Surface TreatmentBlack Oxide Finish
MaterialMetal
ColorBlack
Net Weight0.078kg (0.172lbs)
Dimensions129x80x4mm (5.078x3.149x0.157 in. )
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
Multifunctional Plate Size Dia. 35.5mm
MaterialGlass
ColorClear
Net Weight0.078kg (0.172lbs)
Dimensions Dia. 118mm
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
Microscope Illuminator
Illumination TypeHL Dual Illuminated Light

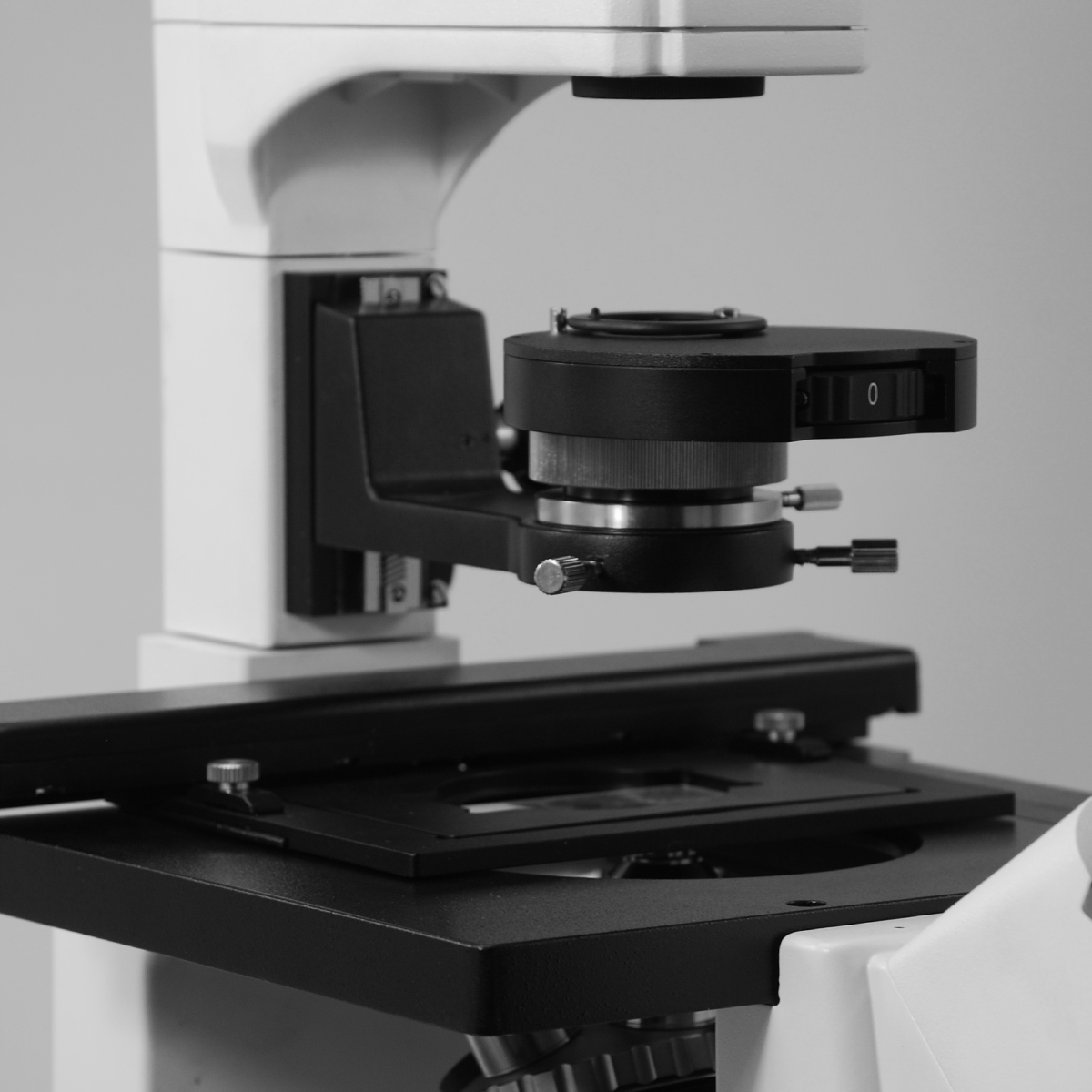

Condenser
Condenser TypeLong Working Distance Condenser
Dry/Oil TypeDry
Applicable Range of Objective4-100X
Condenser AdjustableAdjustable
Condenser Mounting Flange SizeFastening Screw
Number of Filter Slots1
Filter Switch TypeTurret Type
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.46kg (1.01lbs)
Applied FieldFor BM14050303 Trinocular Inverted Biological Microscope
Fluorescence Lamp House Light Source TypeLED
Fluorescence Lamp CenterAdjustable
Excitation Filter TypeB G U
Number of Excitation Filters3
Exciting Filter Cube3 Pieces
Excitation Filter Switch TypeUser-Changeable Excitation Filter Modules
Exciting Filter (EX) Light Spectrum Range460-490nm(blue), 510-550nm(green), 330-380nm(violet)
Color Dichotic Mirror (DM) Light Spectrum Range510nm (blue), 570nm (green)
Battier Filter (BA) Light Spectrum Range520nm (blue), 590nm (green), 410nm (purple)
Power Box Cooling SystemHeat Sink
Power Box Dimensions80x55x35mm
Output Power24W
Input VoltageAC 100-240V 50/60Hz
Output VoltageDC 12V
Power Cord Connector TypeCN 2 Pins
Power Cable Length2.6m
Surface TreatmentBlack Oxide Finish
MaterialMetal
ColorBlack
Net Weight3.00kg (6.61lbs)
Dimensions22x12x4cm (8.661x4.724x1.574 in. )
32mm Filter ((Matte Finish White)
Filter ColorMatte Finish White
Filter Size Dia. 32mm
Filter Switch TypeShake-up Type
MaterialGlass
Net Weight0.002kg (0.004lbs)
Applied FieldFor BM1401, BM1403 Series Microscope
32mm Filter (Blue)
Filter ColorBlue
Filter Size Dia. 32mm
Filter Switch TypeShake-up Type
MaterialGlass
Net Weight0.002kg (0.004lbs)
Applied FieldFor BM1401, BM1403 Series Microscope
32mm Filter (Green)
Filter ColorGreen
Filter Size Dia. 32mm
Filter Switch TypeShake-up Type
MaterialGlass
Net Weight0.002kg (0.004lbs)
Applied FieldFor BM1401, BM1403 Series Microscope
Halogen Bulb
6V 30W Halogen Bulb
Bulb Rated Power30W
Bulb Rated VoltageDC 6V
Bulb ShapeOval
Bulb Mounting ModeBi-Pin
Light Bulb Pin StandardG4 (4mm)
LCL22mm
MaterialGlass
Applied FieldFor BM0303, BM0304, BM1301 Series Microscope
Power Supply
Trinocular Inverted Biological Microscope
Input VoltageAC 110V 60Hz
Power Cord Connector TypeUSA 3 Pins
Power Cable Length1.8m
MaterialPlastic
ColorBlack
Environment Requirement
Trinocular Inverted Biological Microscope
Operating Temperature5~35°C(41~95°F)
Operating Humidity20%~80%
Other Parameters
Trinocular Inverted Biological Microscope
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight14.35kg (31.64lbs)
Series
FM0202FM02020303
Contains
Parts Including
PictureP/NProduct Name
FM31026101EPI-Fluorescence Kit
BM14050303Trinocular Inverted Biological Microscope
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)50x65x36cm (19.685x25.590x14.173″)
Packaging Dimensions(2)41x31x14cm (16.141x12.204x5.511″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsStyrofoam
Gross Weight23.00kg (50.71lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)50x65x36cm (19.685x25.590x14.173″)
Transportation Carton Dimensions(2)41x31x14cm (16.141x12.204x5.511″)
Total Gross Weight of Transportation(kilogram)23.00
Total Gross Weight of Transportation(pound)50.71
Quantity of One Transportation Carton2pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
BM14052211   (10X  Dia. 22mm)
Magnification Field of View(mm)
BM14053331 10X 4.3mm 100X 2.2mm
PH14053331 10X 4.3mm 100X 2.2mm
BM14053431 20X 8.0mm 200X 1.1mm
BM14053531 40X 3.5mm 400X 0.55mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.

Recently viewed products
