Product Description
Technical Specifications

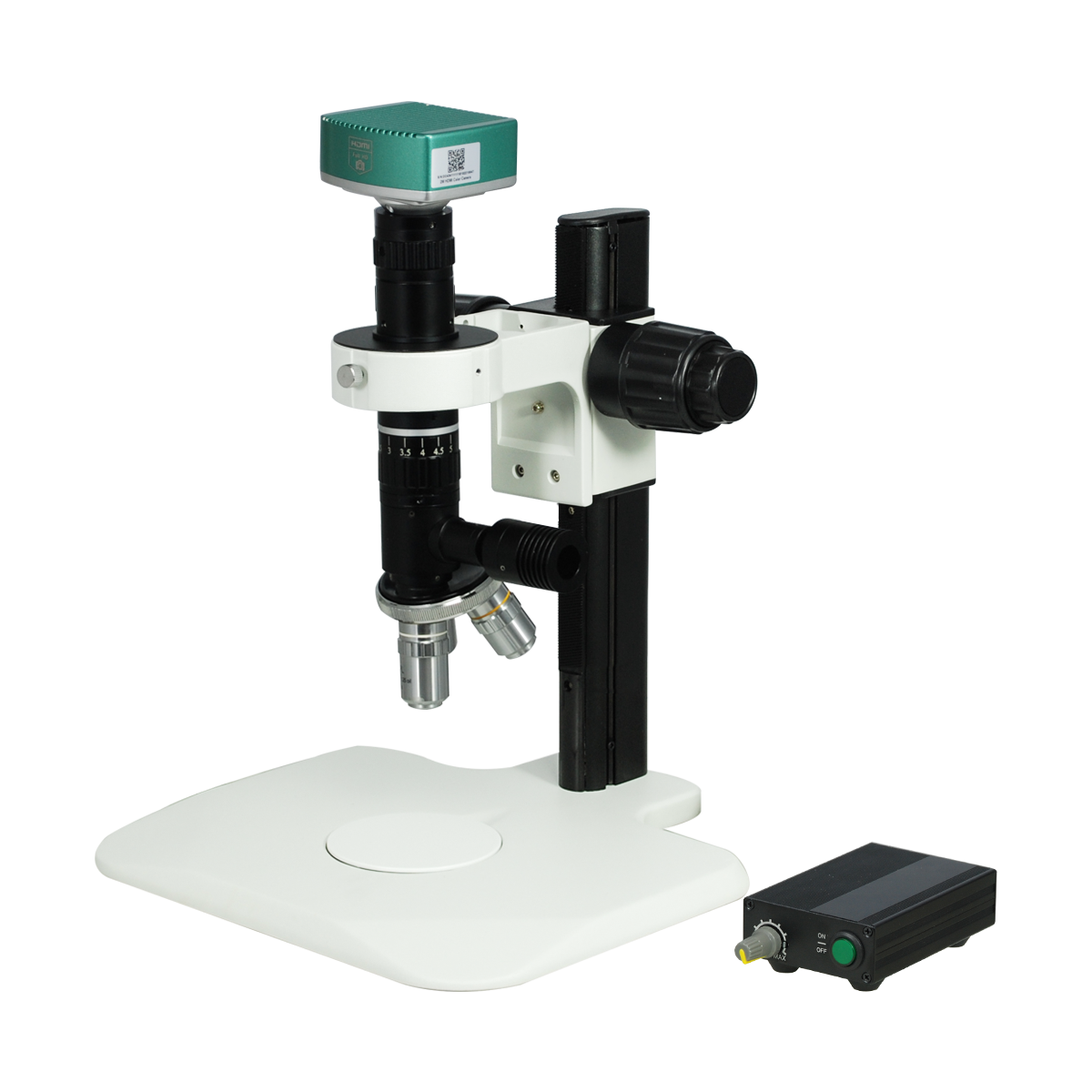

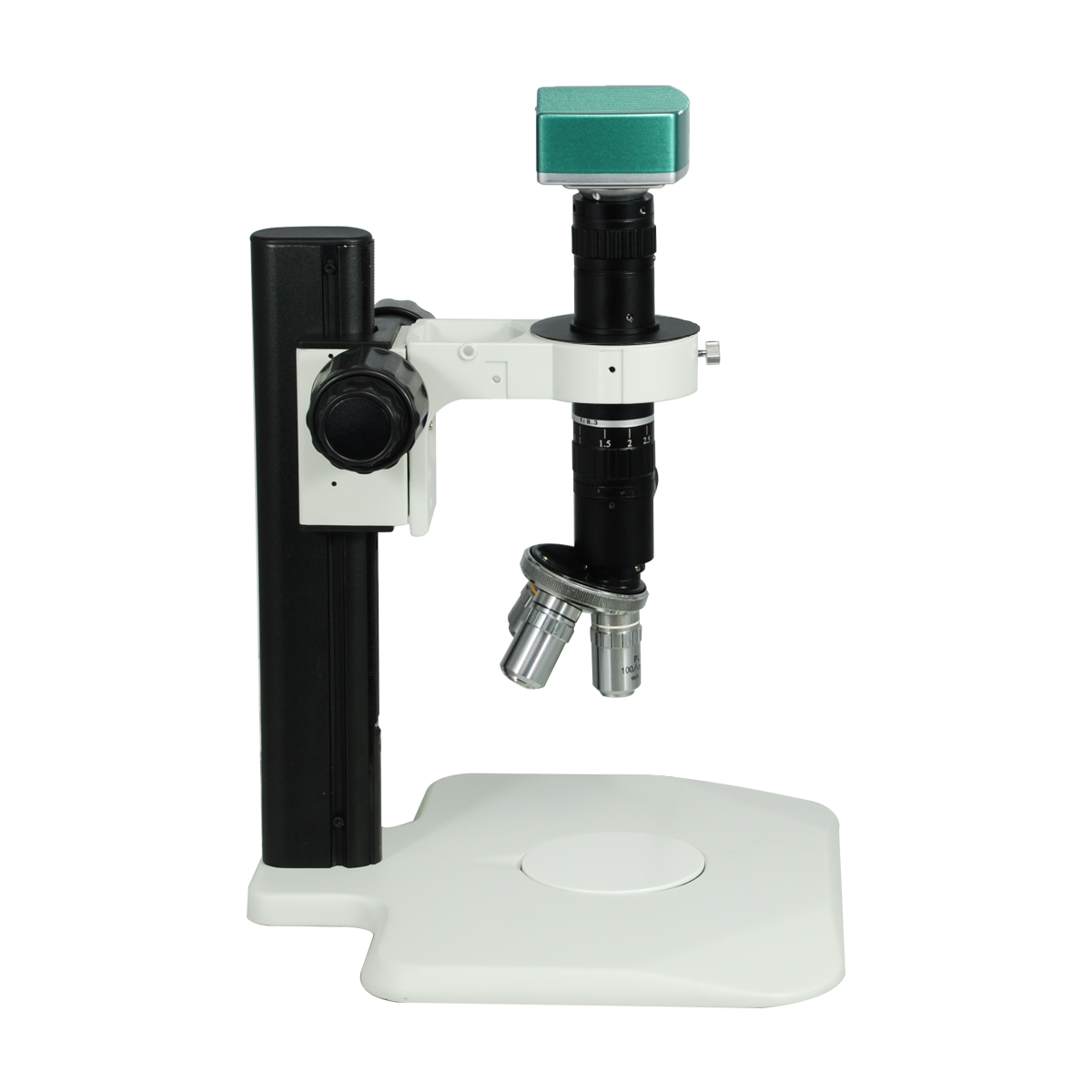

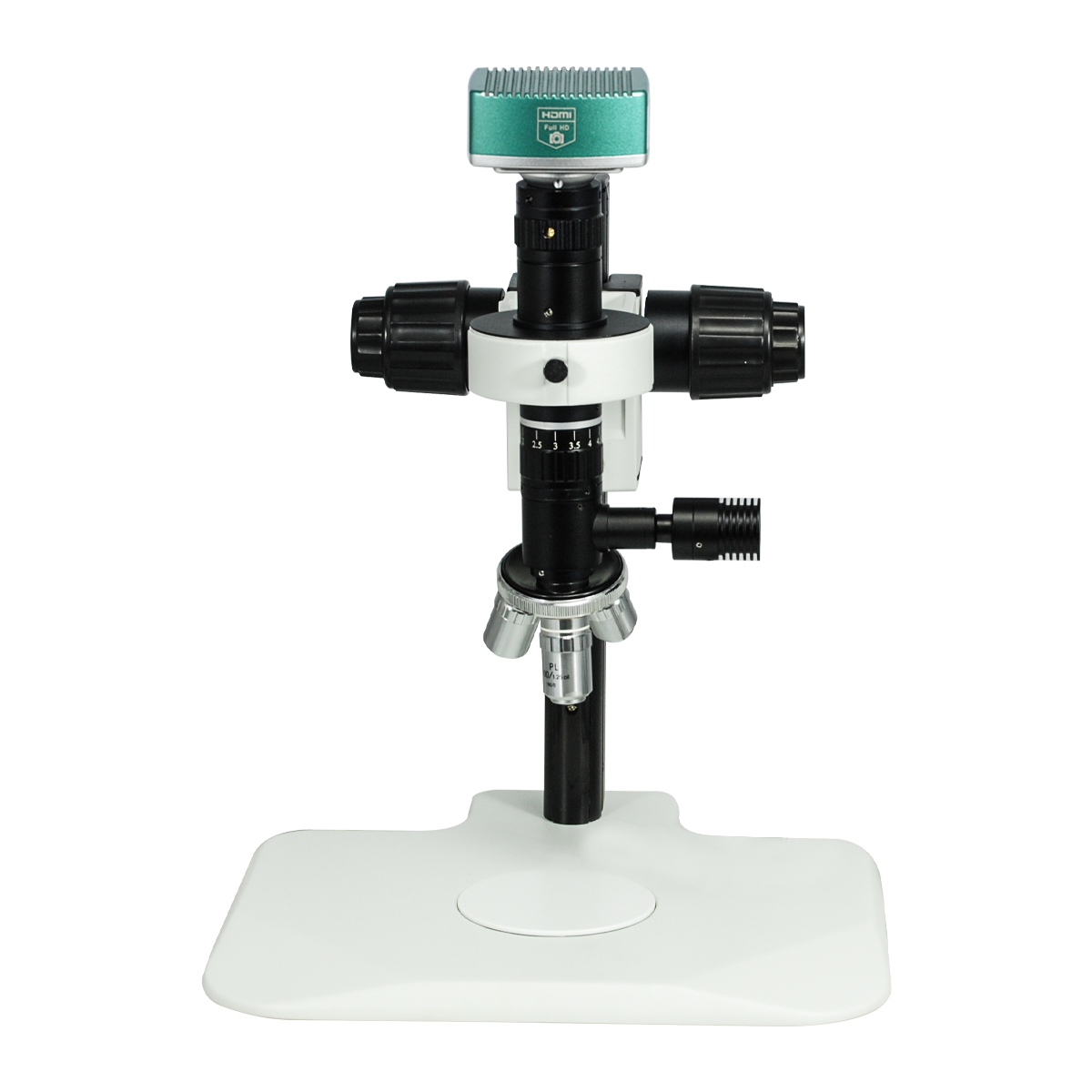

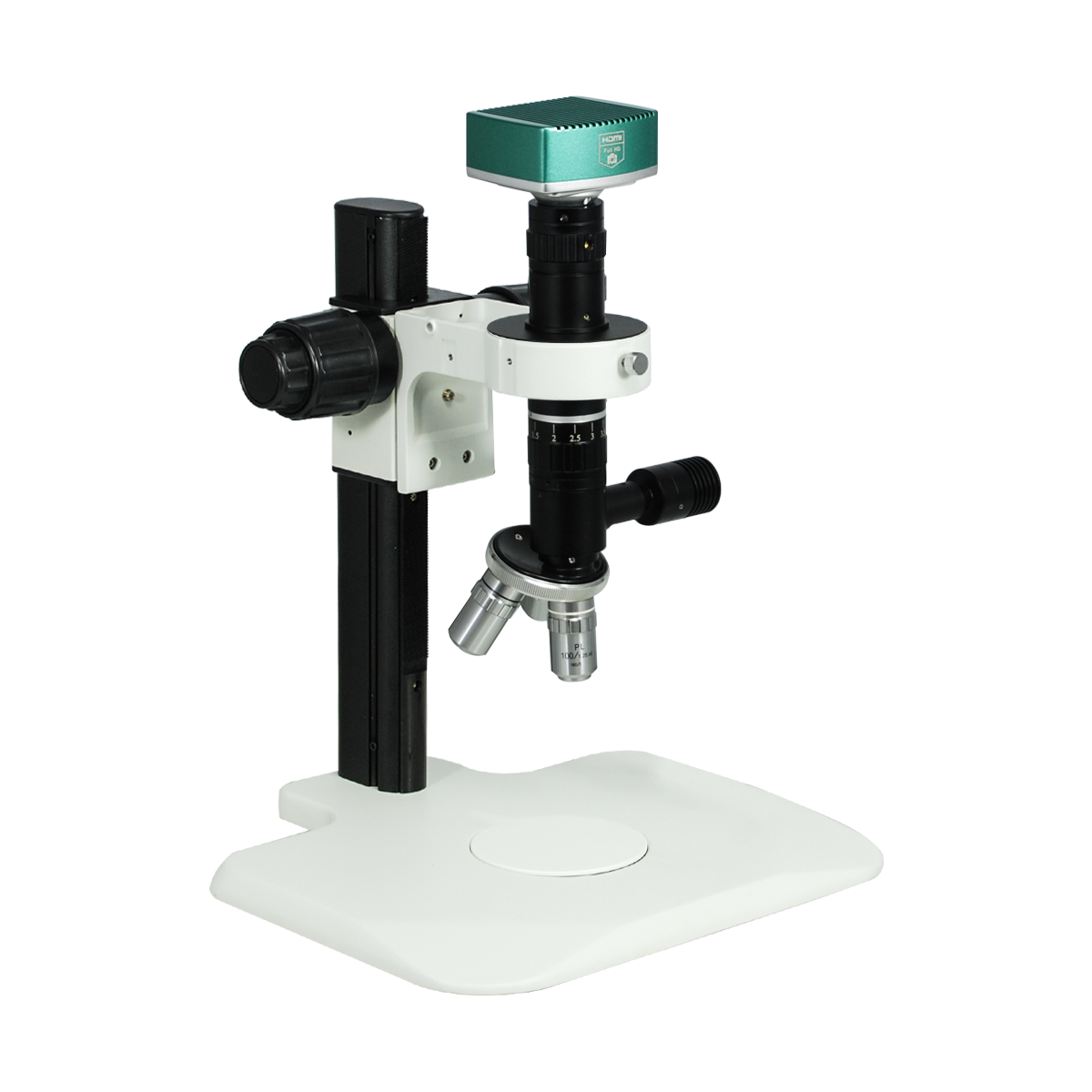

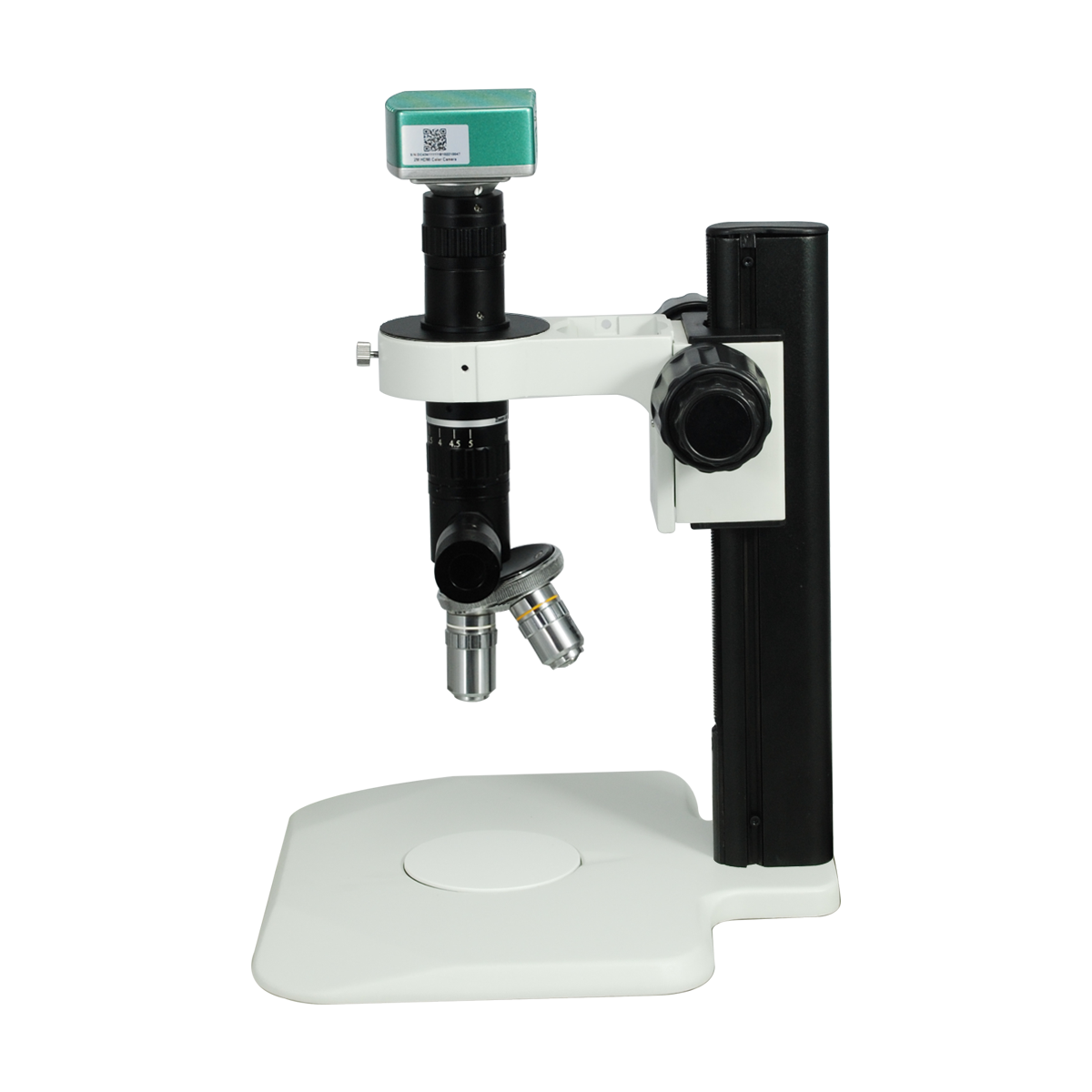

MZ02370222 Nosepiece Video Zoom Microscope
Optical System Specifications
Optical SystemInfinite
System Optical Magnification1.5-50X
Total Magnification1.5-50X
Standard Objective5X 10X 20X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
Standard Coupler0.5X
System Working Distance10.4-23.6mm
0.6-5X Video Zoom Body
Body Optical SystemInfinite
Body Magnification0.6-5X
Zoom Range0.6-5X
Zoom Ratio1:8.3
Zoom Operating ModeWith the Nosepiece
Body Mounting Size for Stand Dia. 39.5mm
Body Mount Type for CouplerFastening Screw
Body Mount Size for Coupler Dia. 30mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.22kg (0.49lbs)
Metallurgical Objective
5X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification5X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance23.6mm
Numerical Aperture (N.A.)N.A. 0.12
Objective Cover Glass Thickness/-
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 24mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.06kg (0.13lbs)
10X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification10X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance17.7mm
Numerical Aperture (N.A.)N.A. 0.25
Objective Cover Glass Thickness/-
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 25mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.07kg (0.15lbs)
20X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification20X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance10.4mm
Numerical Aperture (N.A.)N.A. 0.40
Objective Wavelength400-700nm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 25mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.09kg (0.20lbs)
Nosepiece
Triple (3) Holes Nosepiece
Inward/Outward NosepieceNosepiece Inward
Number of Holes on NosepieceTriple (3) Holes
Nosepiece Switch ModeManual
Nosepiece Screw Thread for ObjectiveRMS Standard (4/5 in. x1/36 in. )
Nosepiece Mounting Size for Microscope Body Dia. 25mm
MaterialMetal
ColorSilver
Net Weight0.18kg (0.40lbs)
76mm Fine Focus Track Stand
Stand TypeTrack Stand
Holder Adapter Type Dia. 76mm Scope Holder
Track Length325mm
Base TypeTable Base
Base ShapeRectangle
Stand Throat Depth121mm
Base Dimensions320x305x16mm
Focus ModeManual
Coarse/Fine Focus TypeCoaxial Coarse/Fine Focus
Focus Distance200mm
Fine Focus Travel Distance200mm
Coarse Focus Distance per Rotation23mm
Fine Focus Distance per Rotation0.56mm
Focusing Knob Tightness AdjustableTightness Adjustable
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight3.35kg (7.39lbs)
Dimensions320x305x341mm (12.598x12.008x13.425 in. )
40/76mm Donut
Donut Adapter TypeScope Mounting Converter
Donut Adapter Size for Scope Mounting Dia. 40mm
Donut Adapter Size for Scope Holder Dia. 76mm
Donut Adapter Height20mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.18kg (0.40lbs)
Applied FieldFor MZ07011101 Video Zoom Body
95x5mm Black White Plate
Plate TypeBlack White Plate
Plate Size Dia. 95x5mm
MaterialPlastic (ABS)
ColorBlack, White
Applied FieldFor ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand
Coaxial Illuminator
Illuminator Mount Type for BodyFastening Screw
Illuminator Mount Size for Body Dia. 30mm
Illuminator Mount Type for ObjectiveThread Screw
Illuminator Mount Size for Objective Dia. 25mm
Vertical Illuminator Adapter Size Dia. 11mm
Surface TreatmentBlack Oxide Finish
MaterialMetal
ColorBlack
Net Weight0.06kg (0.13lbs)
Dimensions Dia. 38X33X63mm
3W LED Point Light ( Dia. 11mm)
Light Source TypeLED Light
Light Head Adapter Size Dia. 11mm
Power Supply AdjustableLight Adjustable
Power Box Panel Meter DisplayPointer Panel Meter/Scale
Power Box Cooling SystemHeat Sink
Power Box Dimensions125x70x30mm
Output Power3W
Input VoltageAC 90-240V 50/60Hz
Power Cord Connector TypeUSA 2 Pins
Power Cable Length1.3m
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.32kg (0.71lbs)
0.5X Coupler
Coupler Mount Type for BodyFastening Screw
Coupler Mount Size for Body Dia. 30mm
Adjustable CouplerAdjustable
Coupler for Microscope TypeVideo Zoom Lens Compatible
Coupler Magnification0.5X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.13kg (0.29lbs)
Applied FieldFor MZ3701 Series Video Zoom Body
2M HDMI Color Camera
Image SensorCMOS
Image Sensor Size1/2.86 in.
Image Sensor Diagonal size6.592mm (0.260 in. )
Camera Maximum Pixels2.0 Megapixels
Camera Resolution1920x1080
Camera Signal Output PortHDMI / USB 2.0
Camera Lens MountC-Mount
Transmission Frame Rate30fps@1920x1080
White BalanceManual/Auto
Gain ControlAdjustable
Exposure ControlManual
Image ComparisonYes
Image Freeze FunctionImage Freeze
Digital Zoom Function10X
Camera CrosshairsCross Line
Number of Crosshairs4 Movable Crosshairs
Line ColorUser Defined
Capture FunctionYes
Image Capture Output FormatBitmap
Video Output FormatAVI
LanguageEnglish
System RequirementWindows XP/7/8/10/11
Camera Housing MaterialMetal
Camera Housing Size83x74x53mm
Camera Housing ColorBlue
Memory TypeSD
Input VoltageDC 12V
Surface TreatmentElectroplating
Net Weight0.60kg (1.32lbs)
Camera Accessories
2M HDMI Color Camera
Mouse OperationYes
Memory TypeSD
Memory Capacity8G
Other Parameters
Video Zoom Body with Nosepiece and Coaxial Illuminator
Surface TreatmentSpray Paint
MaterialMetal
ColorBlack
Net Weight0.91kg (2.01lbs)
Contains
Parts Including
PictureP/NProduct Name
MT025132315X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
MT0251333110X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
MT0251343120X Infinity Plan Long Working Distance Achromatic Metallurgical Objective
DC434111112M HDMI Color Camera
ST0204110276mm Fine Focus Track Stand
SA0208121040/76mm Donut
MZ37011114Video Zoom Body with Nosepiece and Coaxial Illuminator
Video Microscope Optical Data Sheet
P/N Objective Coupler
MZ37016131  (0.5X)
Magnification
MT02513231 5X 1.5-12.5X
MT02513331 10X 3-25X
MT02513431 20X 6-50X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (10in) Screen Size (11.6in) Screen Size (13.3in) Screen Size (21.5in)
Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function
1/2.86 in. 6.592mm 38.5 44.7 51.2 82.8
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
MT02513231 5X MZ37016131 0.5X 1/2.86 in. 6.592mm 10in 1.5-12.5X 38.5 57.75-481.25X 0.53-4.39mm
MT02513231 5X MZ37016131 0.5X 1/2.86 in. 6.592mm 11.6in 1.5-12.5X 44.7 67.05-558.75X 0.53-4.39mm
MT02513231 5X MZ37016131 0.5X 1/2.86 in. 6.592mm 13.3in 1.5-12.5X 51.2 76.8-640X 0.53-4.39mm
MT02513231 5X MZ37016131 0.5X 1/2.86 in. 6.592mm 21.5in 1.5-12.5X 82.8 124.2-1035X 0.53-4.39mm
MT02513331 10X MZ37016131 0.5X 1/2.86 in. 6.592mm 10in 3-25X 38.5 115.5-962.5X 0.26-2.2mm
MT02513331 10X MZ37016131 0.5X 1/2.86 in. 6.592mm 11.6in 3-25X 44.7 134.1-1117.5X 0.26-2.2mm
MT02513331 10X MZ37016131 0.5X 1/2.86 in. 6.592mm 13.3in 3-25X 51.2 153.6-1280X 0.26-2.2mm
MT02513331 10X MZ37016131 0.5X 1/2.86 in. 6.592mm 21.5in 3-25X 82.8 248.4-2070X 0.26-2.2mm
MT02513431 20X MZ37016131 0.5X 1/2.86 in. 6.592mm 10in 6-50X 38.5 231-1925X 0.13-1.1mm
MT02513431 20X MZ37016131 0.5X 1/2.86 in. 6.592mm 11.6in 6-50X 44.7 268.2-2235X 0.13-1.1mm
MT02513431 20X MZ37016131 0.5X 1/2.86 in. 6.592mm 13.3in 6-50X 51.2 307.2-2560X 0.13-1.1mm
MT02513431 20X MZ37016131 0.5X 1/2.86 in. 6.592mm 21.5in 6-50X 82.8 496.8-4140X 0.13-1.1mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
