Product Description
Technical Specifications

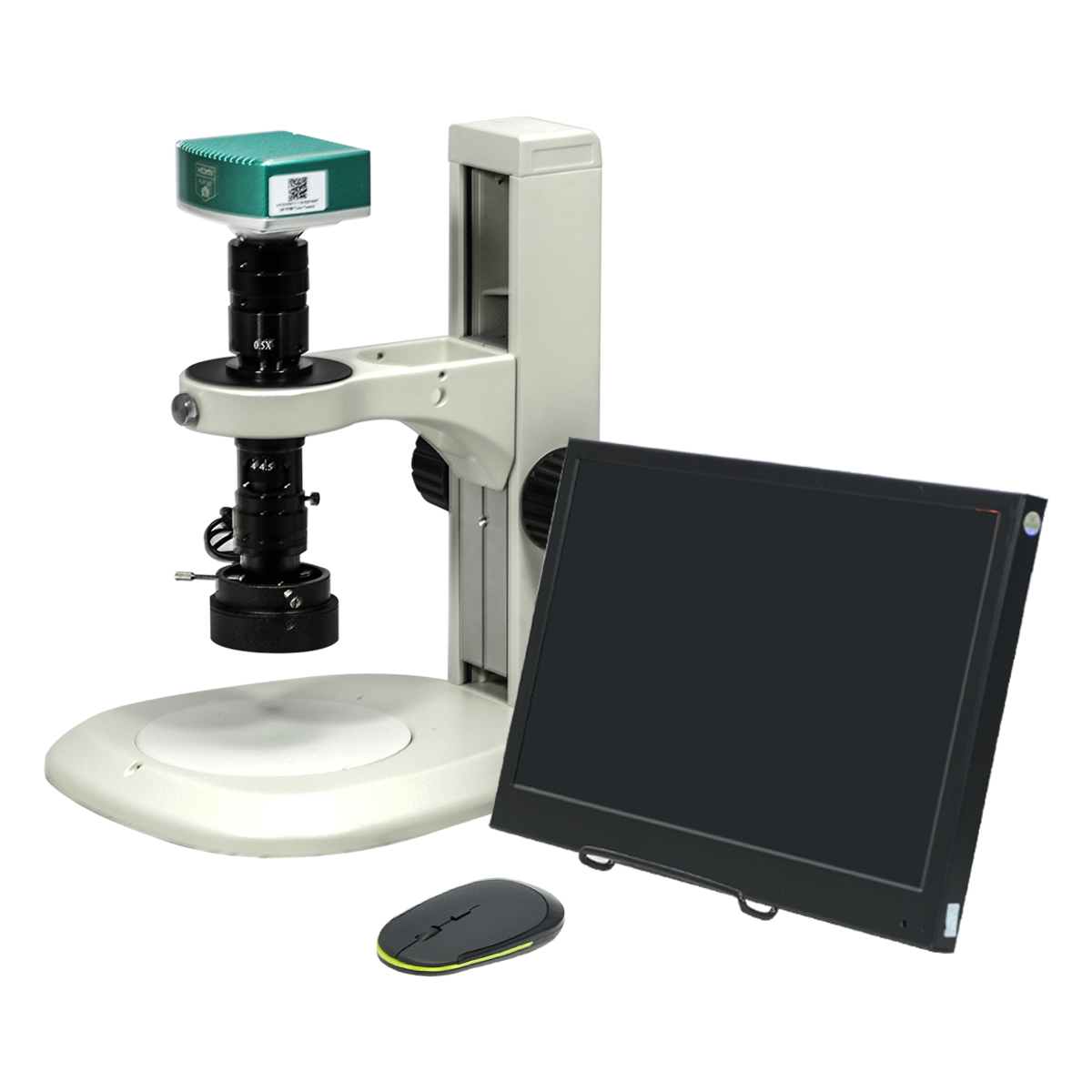

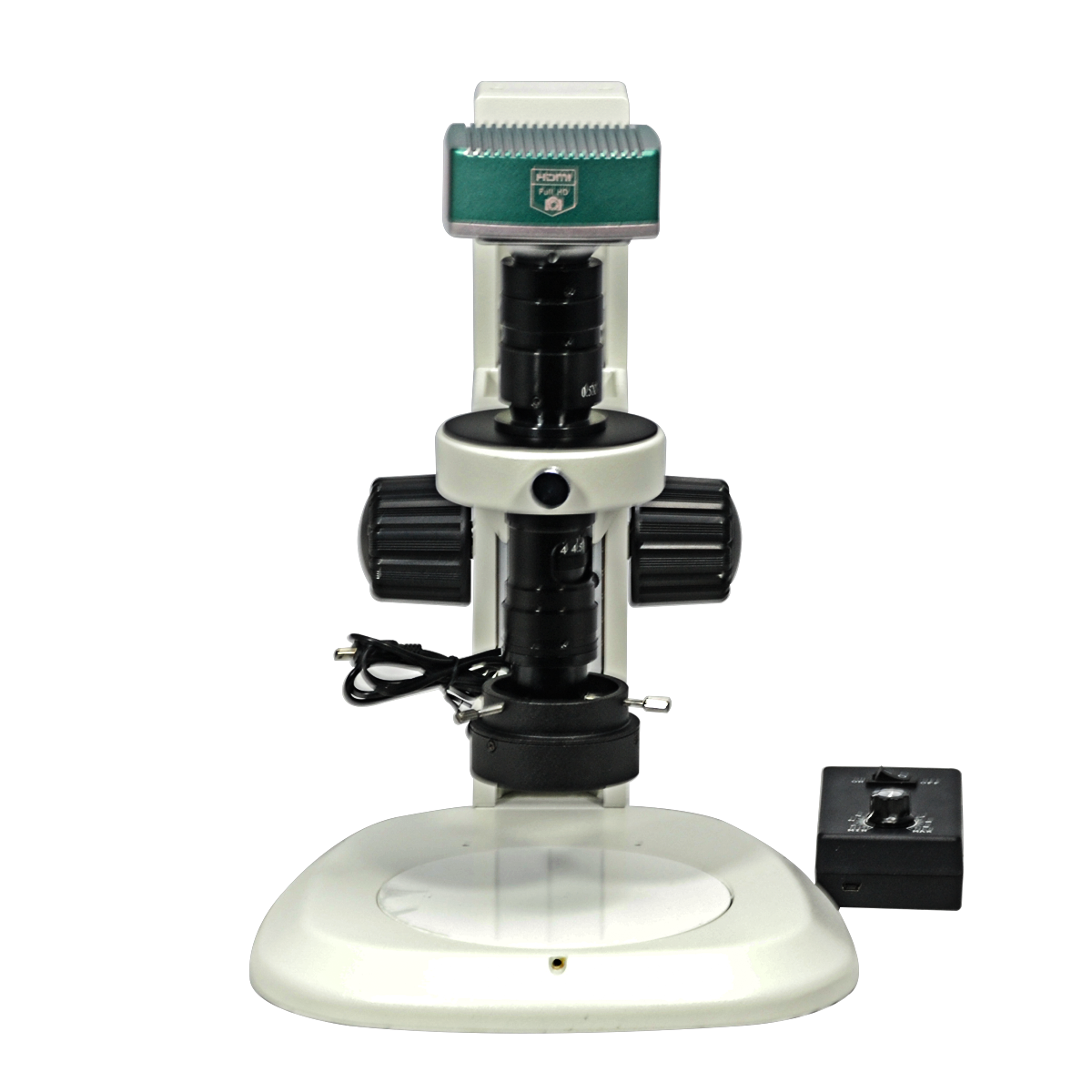

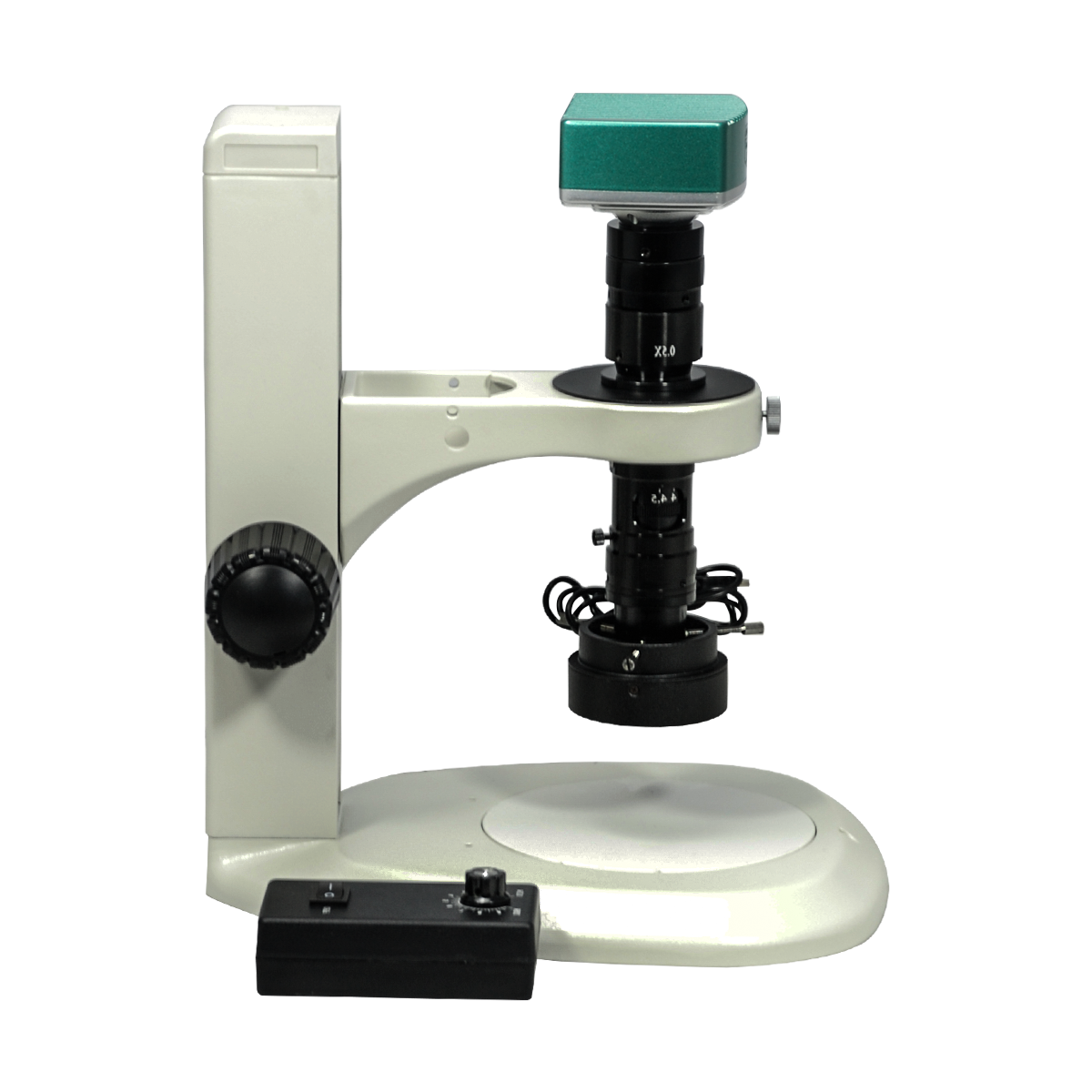

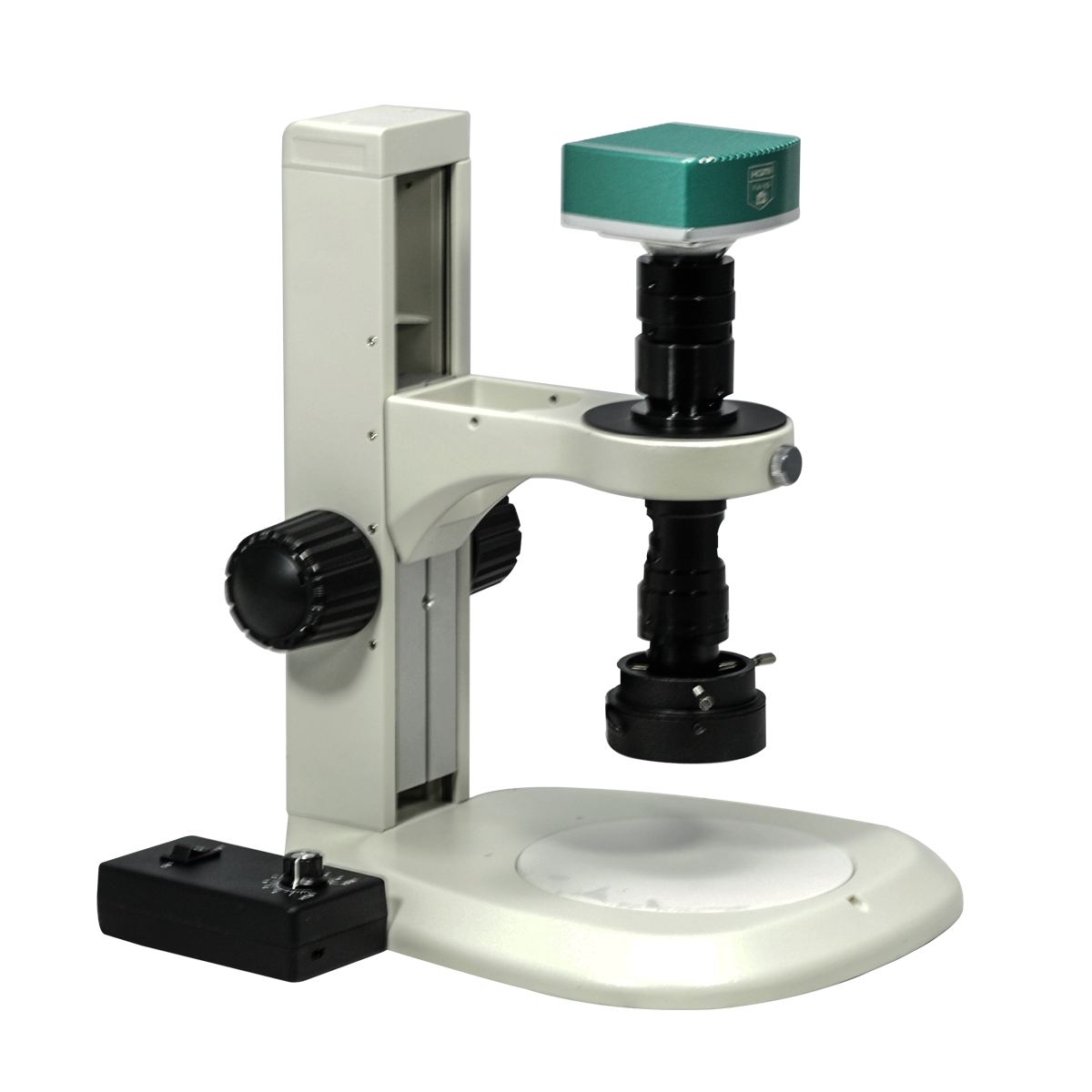

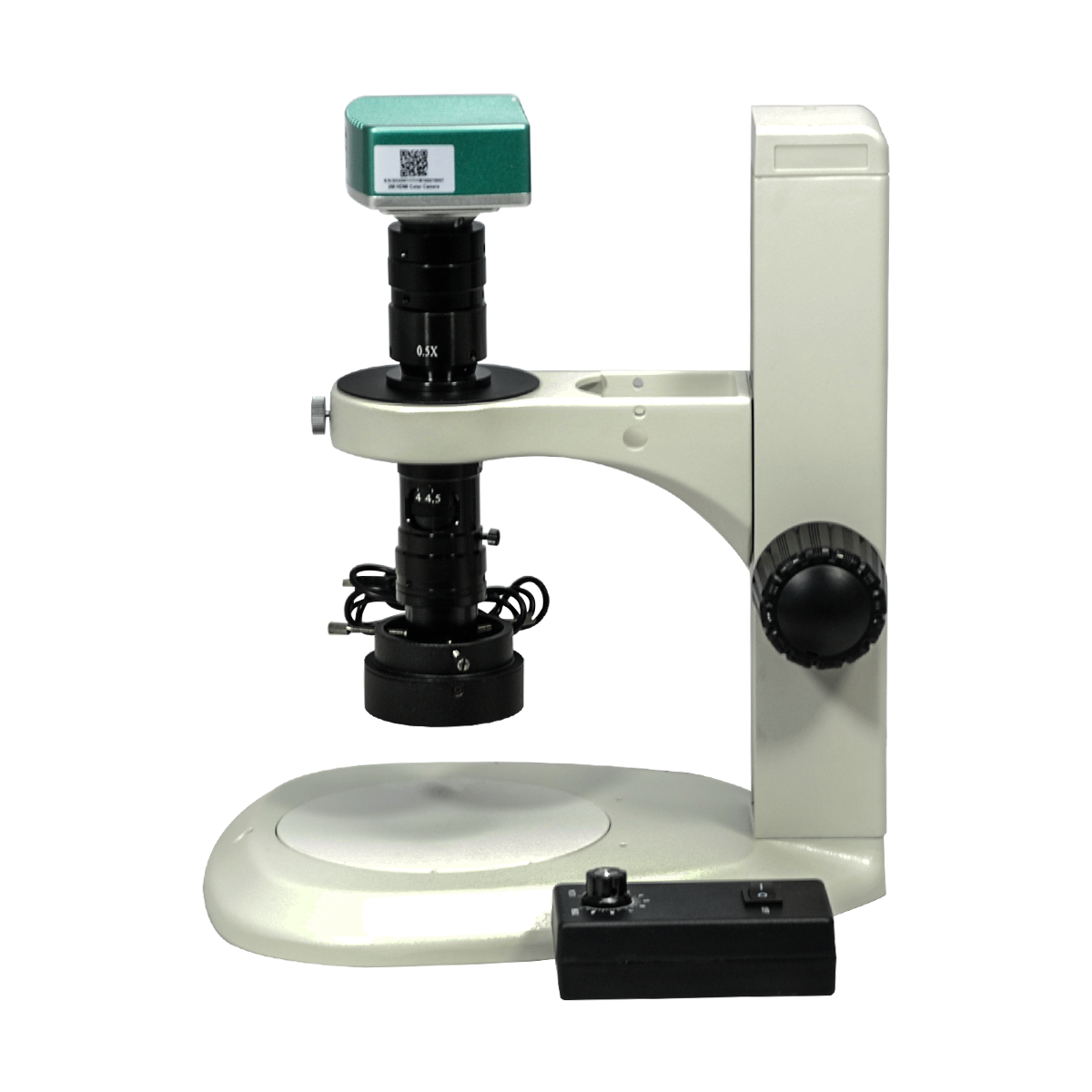

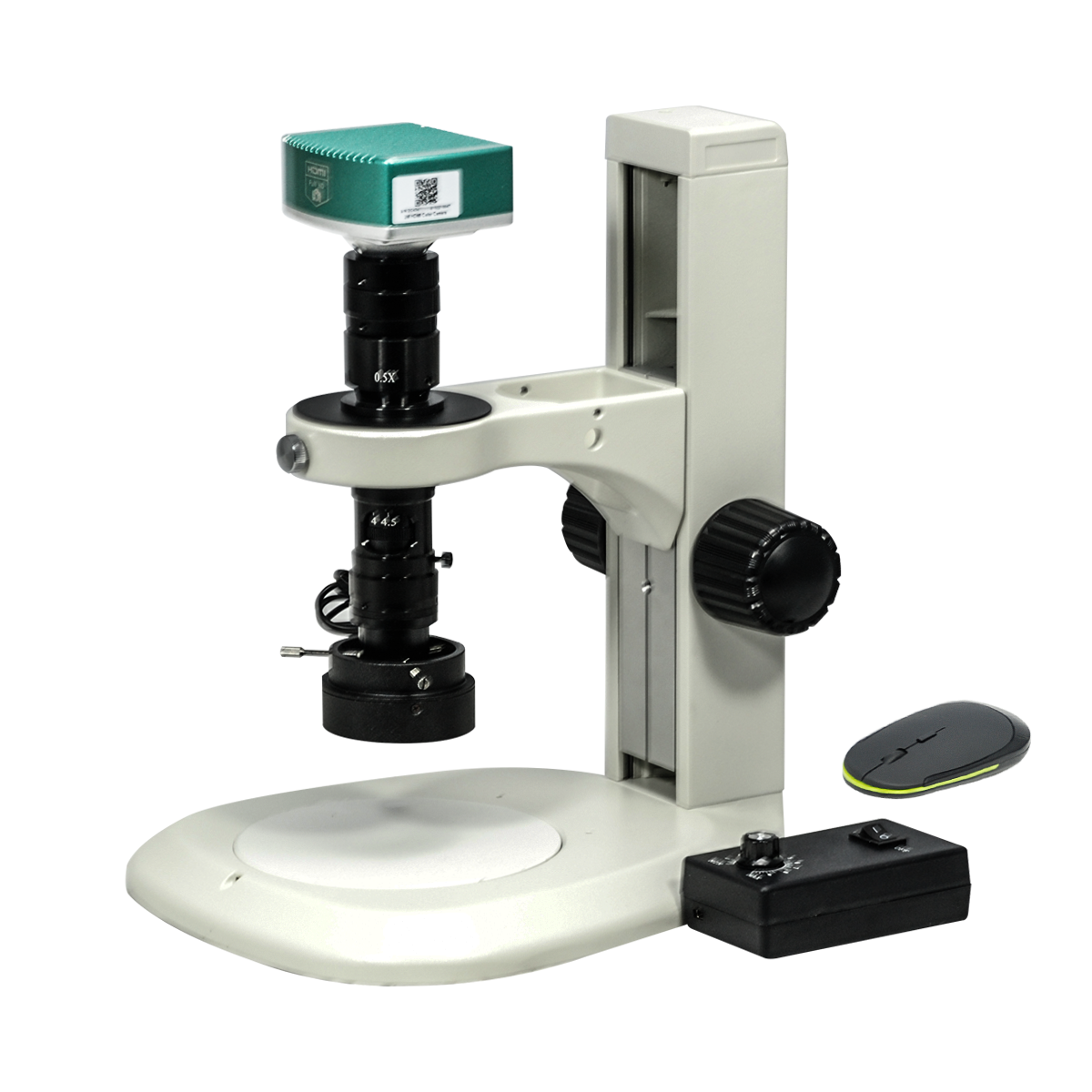

MZ02210012 Video Zoom Microscope
Optical System Specifications
Optical SystemFinite
System Optical Magnification0.35-2.25X
Total Magnification0.35-2.25X
Standard Objective1X Built-in Objective
Standard Coupler0.5X
Zoom Lens Body
0.7-4.5X Video Zoom Body
Body Optical SystemFinite
Body Magnification0.7-4.5X
Zoom Range0.7-4.5X
Zoom Ratio1:6.4
Zoom Operating ModeWith the Nosepiece
Body Mounting Size for Stand Dia. 40mm
Magnification Detent 1X per pre-set stop
Body Mount Type for CouplerFastening Screw
Body Mount Size for Coupler Dia. 33.3mm
Objective Screw ThreadM25x0.75mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.35kg (0.77lbs)
76mm Track Stand
Stand TypeTrack Stand
Holder Adapter Type Dia. 76mm Scope Holder
Track Length280mm
Base TypeTable Base
Base ShapeFan-Shape
Stand Throat Depth130mm
Base Dimensions280x240x25mm
Focus ModeManual
Focus Distance105mm
Coarse Focus Distance per Rotation20mm
Focusing Knob Tightness AdjustableTightness Adjustable
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight2.80kg (6.17lbs)
40/76mm Donut
Donut Adapter TypeScope Mounting Converter
Donut Adapter Size for Scope Mounting Dia. 40mm
Donut Adapter Size for Scope Holder Dia. 76mm
Donut Adapter Height20mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.18kg (0.40lbs)
Applied FieldFor MZ07011101 Video Zoom Body
140x6mm Black White Plate
Plate TypeBlack White Plate
Plate Size Dia. 140x6mm
MaterialPlastic (ABS)
ColorBlack, White
Net Weight0.12kg (0.26lbs)
Applied FieldFor ST1703 Series Track Stand
LED Ring Light (4.5W ID50mm 96Bulbs)
Light Source TypeLED Light
Ring I.D. Size Dia. 50mm
LED Quantity96
Power Supply AdjustableLight Adjustable
Light Source Illuminance15000 Lux or More
Power Box Panel Meter DisplayPointer Panel Meter/Scale
Power Box Cooling SystemHeat Sink
Power Box Dimensions110x60x32mm
Bulb Color Temperature6500K
Output Power4.5W
Input VoltageAC 90-265V 50/60Hz
Output VoltageDC 12V
Power Cord Connector TypeUSA 2 Pins
Power Cable Length1.3m
MaterialPlastic
ColorBlack
Net Weight0.30kg (0.66lbs)
Screw ModelM3x24mm
0.5X Coupler
Coupler Mount Type for BodyFastening Screw
Coupler Mount Size for Body Dia. 33.3mm
Coupler for Microscope TypeVideo Zoom Lens Compatible
Coupler Magnification0.5X
For Camera Sensor SizeUnder 1/2 in.
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.14kg (0.30lbs)
Applied FieldFor MZ0701 Series Video Zoom Body
2M HDMI Color Camera
Image SensorCMOS
Image Sensor Size1/2.86 in.
Image Sensor Diagonal size6.592mm (0.260 in. )
Camera Maximum Pixels2.0 Megapixels
Camera Resolution1920x1080
Camera Signal Output PortHDMI / USB 2.0
Camera Lens MountC-Mount
Transmission Frame Rate30fps@1920x1080
White BalanceManual/Auto
Gain ControlAdjustable
Exposure ControlManual
Image ComparisonYes
Image Freeze FunctionImage Freeze
Digital Zoom Function10X
Camera CrosshairsCross Line
Number of Crosshairs4 Movable Crosshairs
Line ColorUser Defined
Capture FunctionYes
Image Capture Output FormatBitmap
Video Output FormatAVI
LanguageEnglish
System RequirementWindows XP/7/8/10/11
Camera Housing MaterialMetal
Camera Housing Size83x74x53mm
Camera Housing ColorBlue
Memory TypeSD
Input VoltageDC 12V
Surface TreatmentElectroplating
Net Weight0.60kg (1.32lbs)
Camera Accessories
2M HDMI Color Camera
Mouse OperationYes
Memory TypeSD
Memory Capacity8G
TFT-LCD Monitor
13.3 in. Color Monitor
Screen Size13.3in
Screen Aspect Ratio16:9
Monitor Input Signal FormatHDMI
Monitor Signal FormatPAL/NTSC/SECAM
Monitor Max. Resolution1920x1080
Screen Active Area293x167mm (11.535x6.575 in. )
Screen Contrast1000:1
Screen Brightness350cd/m2
Response Time6ms
Screen Viewing Angle178°/178°
Screen BacklightLCD Display
Monitor Operating Temperature0℃~50℃
Monitor Housing MaterialMetal
Monitor Housing Size320x203x14mm
Monitor Housing ColorBlack
Input VoltageDC 12V
Net Weight0.65kg (1.43lbs)
Series
MZ0701MZ02210012
Contains
Parts Including
PictureP/NProduct Name
MO0221330113.3″ Color Monitor
DC434111112M HDMI Color Camera
MZ070111010.7-4.5X Video Zoom Body
MZ070161310.5X Coupler
ST1703110176mm Track Stand
ML23241521LED Ring Light (4.5W ID50mm 96Bulbs)
SA0208121040/76mm Donut
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)36x30x40cm (14.173x11.811x15.748″)
Packaging Dimensions(2)15.2x15.2x15.2cm (6x6x6″)
Packaging Dimensions(3)10.5x5.5x13cm (4.133x2.165x5.118″)
Packaging Dimensions(4)15.2x15.2x15.2cm (6x6x6″)
Packaging Dimensions(5)28x23x7cm (11.024x9.055x2.756″)
Packaging Dimensions(6)25.5x13.5x5.5cm (10.039x5.315x2.165″)
Packaging Dimensions(7)37x24x9.5cm (14.566x9.448x3.74″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight3.75kg (8.27lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)36x30x40cm (14.173x11.811x15.748″)
Transportation Carton Dimensions(2)15.2x15.2x15.2cm (6x6x6″)
Transportation Carton Dimensions(3)15.2x15.2x15.2cm (6x6x6″)
Transportation Carton Dimensions(4)15.2x15.2x15.2cm (6x6x6″)
Transportation Carton Dimensions(5)28x23x7cm (11.024x9.055x2.756″)
Transportation Carton Dimensions(6)25.5x13.5x5.5cm (10.039x5.315x2.165″)
Transportation Carton Dimensions(7)37x24x9.5cm (14.566x9.448x3.74″)
Total Gross Weight of Transportation(kilogram)7.30
Total Gross Weight of Transportation(pound)16.09
Quantity of One Transportation Carton7pc
Video Microscope Optical Data Sheet
P/N Objective Coupler
MZ07016131  (0.5X) MZ07016181  (0.67X) MZ07016151  (1X) MZ07016171  (2X)
Magnification Magnification Magnification Magnification
MZ07014211 0.5X 0.18-1.12X 0.23-1.51X 0.35-2.25X 0.7-4.5X
MZ07014311 0.75X 0.26-1.69X 0.35-2.26X 0.52-3.38X 1.05-6.75X
MZ07014511 1.5X 0.52-3.38X 0.7-4.52X 1.05-6.75X 2.1-13.5X
MZ07014611 2X 0.7-4.5X 0.94-6.03X 1.4-9X 2.8-18X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (10in) Screen Size (11.6in) Screen Size (13.3in) Screen Size (21.5in)
Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function
1/2.86 in. 6.592mm 38.5 44.7 51.2 82.8
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
MZ07014211 0.5X MZ07016131 0.5X 1/2.86 in. 6.592mm 10in 0.18-1.12X 38.5 6.93-43.12X 5.89-36.62mm
MZ07014211 0.5X MZ07016131 0.5X 1/2.86 in. 6.592mm 11.6in 0.18-1.12X 44.7 8.05-50.06X 5.89-36.62mm
MZ07014211 0.5X MZ07016131 0.5X 1/2.86 in. 6.592mm 13.3in 0.18-1.12X 51.2 9.22-57.34X 5.89-36.62mm
MZ07014211 0.5X MZ07016131 0.5X 1/2.86 in. 6.592mm 21.5in 0.18-1.12X 82.8 14.9-92.74X 5.89-36.62mm
MZ07014211 0.5X MZ07016151 1X 1/2.86 in. 6.592mm 10in 0.35-2.25X 38.5 13.48-86.62X 2.93-18.83mm
MZ07014211 0.5X MZ07016151 1X 1/2.86 in. 6.592mm 11.6in 0.35-2.25X 44.7 15.64-100.58X 2.93-18.83mm
MZ07014211 0.5X MZ07016151 1X 1/2.86 in. 6.592mm 13.3in 0.35-2.25X 51.2 17.92-115.2X 2.93-18.83mm
MZ07014211 0.5X MZ07016151 1X 1/2.86 in. 6.592mm 21.5in 0.35-2.25X 82.8 28.98-186.3X 2.93-18.83mm
MZ07014211 0.5X MZ07016171 2X 1/2.86 in. 6.592mm 10in 0.7-4.5X 38.5 26.95-173.25X 1.46-9.42mm
MZ07014211 0.5X MZ07016171 2X 1/2.86 in. 6.592mm 11.6in 0.7-4.5X 44.7 31.29-201.15X 1.46-9.42mm
MZ07014211 0.5X MZ07016171 2X 1/2.86 in. 6.592mm 13.3in 0.7-4.5X 51.2 35.84-230.4X 1.46-9.42mm
MZ07014211 0.5X MZ07016171 2X 1/2.86 in. 6.592mm 21.5in 0.7-4.5X 82.8 57.96-372.6X 1.46-9.42mm
MZ07014211 0.5X MZ07016181 0.67X 1/2.86 in. 6.592mm 10in 0.23-1.51X 38.5 8.86-58.14X 4.37-28.66mm
MZ07014211 0.5X MZ07016181 0.67X 1/2.86 in. 6.592mm 11.6in 0.23-1.51X 44.7 10.28-67.5X 4.37-28.66mm
MZ07014211 0.5X MZ07016181 0.67X 1/2.86 in. 6.592mm 13.3in 0.23-1.51X 51.2 11.78-77.31X 4.37-28.66mm
MZ07014211 0.5X MZ07016181 0.67X 1/2.86 in. 6.592mm 21.5in 0.23-1.51X 82.8 19.04-125.03X 4.37-28.66mm
MZ07014311 0.75X MZ07016131 0.5X 1/2.86 in. 6.592mm 10in 0.26-1.69X 38.5 10.01-65.06X 3.9-25.35mm
MZ07014311 0.75X MZ07016131 0.5X 1/2.86 in. 6.592mm 11.6in 0.26-1.69X 44.7 11.62-75.54X 3.9-25.35mm
MZ07014311 0.75X MZ07016131 0.5X 1/2.86 in. 6.592mm 13.3in 0.26-1.69X 51.2 13.31-86.53X 3.9-25.35mm
MZ07014311 0.75X MZ07016131 0.5X 1/2.86 in. 6.592mm 21.5in 0.26-1.69X 82.8 21.53-139.93X 3.9-25.35mm
MZ07014311 0.75X MZ07016151 1X 1/2.86 in. 6.592mm 10in 0.52-3.38X 38.5 20.02-130.13X 1.95-12.68mm
MZ07014311 0.75X MZ07016151 1X 1/2.86 in. 6.592mm 11.6in 0.52-3.38X 44.7 23.24-151.09X 1.95-12.68mm
MZ07014311 0.75X MZ07016151 1X 1/2.86 in. 6.592mm 13.3in 0.52-3.38X 51.2 26.62-173.06X 1.95-12.68mm
MZ07014311 0.75X MZ07016151 1X 1/2.86 in. 6.592mm 21.5in 0.52-3.38X 82.8 43.06-279.86X 1.95-12.68mm
MZ07014311 0.75X MZ07016171 2X 1/2.86 in. 6.592mm 10in 1.05-6.75X 38.5 40.43-259.88X 0.98-6.28mm
MZ07014311 0.75X MZ07016171 2X 1/2.86 in. 6.592mm 11.6in 1.05-6.75X 44.7 46.94-301.73X 0.98-6.28mm
MZ07014311 0.75X MZ07016171 2X 1/2.86 in. 6.592mm 13.3in 1.05-6.75X 51.2 53.76-345.6X 0.98-6.28mm
MZ07014311 0.75X MZ07016171 2X 1/2.86 in. 6.592mm 21.5in 1.05-6.75X 82.8 86.94-558.9X 0.98-6.28mm
MZ07014311 0.75X MZ07016181 0.67X 1/2.86 in. 6.592mm 10in 0.35-2.26X 38.5 13.48-87.01X 2.92-18.83mm
MZ07014311 0.75X MZ07016181 0.67X 1/2.86 in. 6.592mm 11.6in 0.35-2.26X 44.7 15.64-101.02X 2.92-18.83mm
MZ07014311 0.75X MZ07016181 0.67X 1/2.86 in. 6.592mm 13.3in 0.35-2.26X 51.2 17.92-115.71X 2.92-18.83mm
MZ07014311 0.75X MZ07016181 0.67X 1/2.86 in. 6.592mm 21.5in 0.35-2.26X 82.8 28.98-187.13X 2.92-18.83mm
MZ07014511 1.5X MZ07016131 0.5X 1/2.86 in. 6.592mm 10in 0.52-3.38X 38.5 20.02-130.13X 1.95-12.68mm
MZ07014511 1.5X MZ07016131 0.5X 1/2.86 in. 6.592mm 11.6in 0.52-3.38X 44.7 23.24-151.09X 1.95-12.68mm
MZ07014511 1.5X MZ07016131 0.5X 1/2.86 in. 6.592mm 13.3in 0.52-3.38X 51.2 26.62-173.06X 1.95-12.68mm
MZ07014511 1.5X MZ07016131 0.5X 1/2.86 in. 6.592mm 21.5in 0.52-3.38X 82.8 43.06-279.86X 1.95-12.68mm
MZ07014511 1.5X MZ07016151 1X 1/2.86 in. 6.592mm 10in 1.05-6.75X 38.5 40.43-259.88X 0.98-6.28mm
MZ07014511 1.5X MZ07016151 1X 1/2.86 in. 6.592mm 11.6in 1.05-6.75X 44.7 46.94-301.73X 0.98-6.28mm
MZ07014511 1.5X MZ07016151 1X 1/2.86 in. 6.592mm 13.3in 1.05-6.75X 51.2 53.76-345.6X 0.98-6.28mm
MZ07014511 1.5X MZ07016151 1X 1/2.86 in. 6.592mm 21.5in 1.05-6.75X 82.8 86.94-558.9X 0.98-6.28mm
MZ07014511 1.5X MZ07016171 2X 1/2.86 in. 6.592mm 10in 2.1-13.5X 38.5 80.85-519.75X 0.49-3.14mm
MZ07014511 1.5X MZ07016171 2X 1/2.86 in. 6.592mm 11.6in 2.1-13.5X 44.7 93.87-603.45X 0.49-3.14mm
MZ07014511 1.5X MZ07016171 2X 1/2.86 in. 6.592mm 13.3in 2.1-13.5X 51.2 107.52-691.2X 0.49-3.14mm
MZ07014511 1.5X MZ07016171 2X 1/2.86 in. 6.592mm 21.5in 2.1-13.5X 82.8 173.88-1117.8X 0.49-3.14mm
MZ07014511 1.5X MZ07016181 0.67X 1/2.86 in. 6.592mm 10in 0.7-4.52X 38.5 26.95-174.02X 1.46-9.42mm
MZ07014511 1.5X MZ07016181 0.67X 1/2.86 in. 6.592mm 11.6in 0.7-4.52X 44.7 31.29-202.04X 1.46-9.42mm
MZ07014511 1.5X MZ07016181 0.67X 1/2.86 in. 6.592mm 13.3in 0.7-4.52X 51.2 35.84-231.42X 1.46-9.42mm
MZ07014511 1.5X MZ07016181 0.67X 1/2.86 in. 6.592mm 21.5in 0.7-4.52X 82.8 57.96-374.26X 1.46-9.42mm
MZ07014611 2X MZ07016131 0.5X 1/2.86 in. 6.592mm 10in 0.7-4.5X 38.5 26.95-173.25X 1.46-9.42mm
MZ07014611 2X MZ07016131 0.5X 1/2.86 in. 6.592mm 11.6in 0.7-4.5X 44.7 31.29-201.15X 1.46-9.42mm
MZ07014611 2X MZ07016131 0.5X 1/2.86 in. 6.592mm 13.3in 0.7-4.5X 51.2 35.84-230.4X 1.46-9.42mm
MZ07014611 2X MZ07016131 0.5X 1/2.86 in. 6.592mm 21.5in 0.7-4.5X 82.8 57.96-372.6X 1.46-9.42mm
MZ07014611 2X MZ07016151 1X 1/2.86 in. 6.592mm 10in 1.4-9X 38.5 53.9-346.5X 0.73-4.71mm
MZ07014611 2X MZ07016151 1X 1/2.86 in. 6.592mm 11.6in 1.4-9X 44.7 62.58-402.3X 0.73-4.71mm
MZ07014611 2X MZ07016151 1X 1/2.86 in. 6.592mm 13.3in 1.4-9X 51.2 71.68-460.8X 0.73-4.71mm
MZ07014611 2X MZ07016151 1X 1/2.86 in. 6.592mm 21.5in 1.4-9X 82.8 115.92-745.2X 0.73-4.71mm
MZ07014611 2X MZ07016171 2X 1/2.86 in. 6.592mm 10in 2.8-18X 38.5 107.8-693X 0.37-2.35mm
MZ07014611 2X MZ07016171 2X 1/2.86 in. 6.592mm 11.6in 2.8-18X 44.7 125.16-804.6X 0.37-2.35mm
MZ07014611 2X MZ07016171 2X 1/2.86 in. 6.592mm 13.3in 2.8-18X 51.2 143.36-921.6X 0.37-2.35mm
MZ07014611 2X MZ07016171 2X 1/2.86 in. 6.592mm 21.5in 2.8-18X 82.8 231.84-1490.4X 0.37-2.35mm
MZ07014611 2X MZ07016181 0.67X 1/2.86 in. 6.592mm 10in 0.94-6.03X 38.5 36.19-232.16X 1.09-7.01mm
MZ07014611 2X MZ07016181 0.67X 1/2.86 in. 6.592mm 11.6in 0.94-6.03X 44.7 42.02-269.54X 1.09-7.01mm
MZ07014611 2X MZ07016181 0.67X 1/2.86 in. 6.592mm 13.3in 0.94-6.03X 51.2 48.13-308.74X 1.09-7.01mm
MZ07014611 2X MZ07016181 0.67X 1/2.86 in. 6.592mm 21.5in 0.94-6.03X 82.8 77.83-499.28X 1.09-7.01mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
