Quick Overview
Screen Size: 10in. 16:9. Monitor Input Signal Format: AV/BNC/VGA/HDMI/USB. Monitor Max. Resolution: 1280x800. LED Display. Output Power: 18W. Input Voltage: AC 100-240V 50/60Hz. Output Voltage: DC 12V. Power Cord Connector Type: USA 2 Pins.

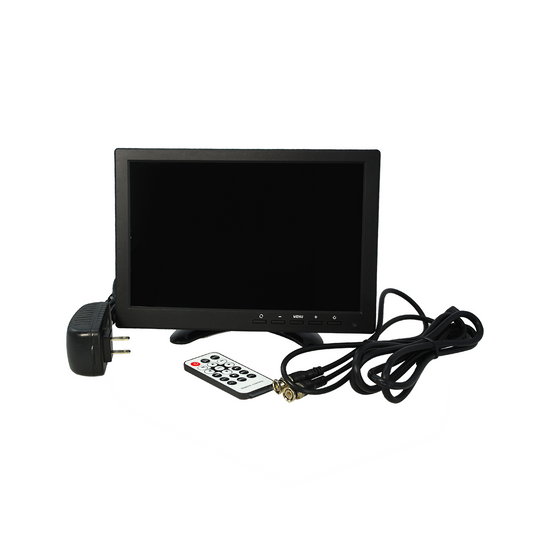

MO02212201 10 in. Color Monitor
TFT-LCD Monitor
| Screen Size | 10in |
| Screen Aspect Ratio | 16:9 |
| Monitor Input Signal Format | AV/BNC/VGA/HDMI/USB |
| Monitor Signal Format | NTSC/PAL Auto-Switch |
| Monitor Max. Resolution | 1280x800 |
| Screen Active Area | 215x135mm (8.464x5.314 in. ) |
| Screen Contrast | 400:1 |
| Screen Brightness | 400cd/m2 |
| Response Time | ≤12ms |
| Screen Refresh Rate | 60-75Hz |
| Screen Viewing Angle | 160°/160° |
| Screen Backlight | LED Display |
| Monitor Operating Temperature | -10~50°C(14~122°F) |
| Monitor Housing Material | Plastic |
| Monitor Housing Size | 245x168x13mm |
| Monitor Housing Color | Black |
| Output Power | 18W |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 12V |
| Power Cord Connector Type | USA 2 Pins |
| Power Cable Length | 0.8m |
| Surface Treatment | Spray Paint |
| Material | Plastic |
| Color | Black |
| Net Weight | 0.79kg (1.741lbs) |
| Dimensions | 245x168x13mm |
Technical Info
Instructions
PackagingClose Λ
| After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection. For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem. |
| Packing | |
| Packaging Type | Carton Packaging |
| Packaging Material | Cardboard Box |
| Packaging Dimensions(1) | 32.5x27x7cm (12.795x10.629x2.7559″) |
| Inner Packing Material | Plastic Bag |
| Ancillary Packaging Materials | Styrofoam |
| Gross Weight | 1.04kg (2.29lbs) |
| Minimum Packaging Quantity | 1pc |
| Transportation Carton | Carton Packaging |
| Transportation Carton Material | Cardboard Box |
| Transportation Carton Dimensions(1) | 32.5x27x7cm (12.795x10.629x2.7559″) |
| Total Gross Weight of Transportation(kilogram) | 1.04 |
| Total Gross Weight of Transportation(pound) | 2.29 |
| Quantity of One Transportation Carton | 1pc |
  |
